25mm Diameter Single Screw Extruder Machine To Extrude Thermoplastics

Large Image : 25mm Diameter Single Screw Extruder Machine To Extrude Thermoplastics

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-3017

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Single Screw Extruder Machine is packaged in wooden case.
Delivery Time:	15-20 days
Payment Terms:	T/T,L/C,Western Union,D/P,D/A
Supply Ability:	30 set per month

Contact Now

Detailed Product Description

Product Name:	Single Screw Extruder Machine	Screw DIAMETER:	25mm
Screw Aspect Ratio:	25:1	Screw Compression Ratio:	3
Main Motor Power:	1kw	Barrel Heating:	Stainless Steel Shell, Electric Heating
The Diameter Of The Die Head Heater In The Seventh Zone:	12040220V*400W	Warranty Period:	1 Year
Highlight:	25mm Diameter Single Screw Extruder Machine , Thermoplastics Single Screw Extruder Machine

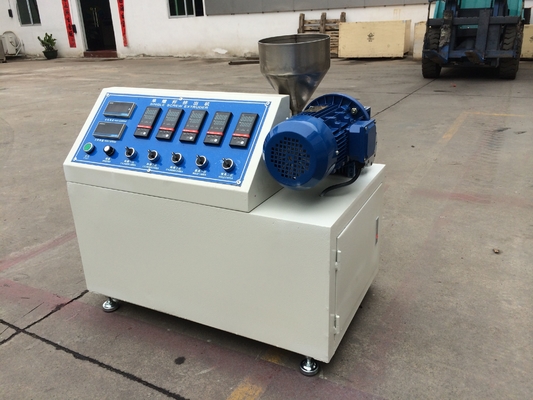

25mm Diameter Single Screw Extruder Machine

This single screw extruder machine is designed for extruding thermoplastics including soft and hard polyvinyl chloride, polyethylene, and various other plastic materials. The equipment enables processing of multiple plastic products such as blown film, extruded tubes, pressed plates, ribbons, and can also be used for melt granulation.

The plastic extruder features advanced design, high quality construction, excellent plasticization capabilities, and low energy consumption. It utilizes involute gear transmission for quiet operation, stable performance, high bearing capacity, and extended service life.

Technical Documentation

Download Rubber Machine Technical Specifications (PDF)

Application Range

Suitable for extrusion molding and extrusion granulation of all thermoplastics.

Technical Parameters

Component	Specification
The Screw And Barrel	Made of 38 CrMoAlA, quenched and tempered and nitrided
Screw Diameter	25mm
Screw Aspect Ratio	25:1
Screw Compression Ratio	3
Main Motor Power	1KW
Main Motor Speed Regulation	Inverter speed regulation (Holip)
Barrel Heating	Stainless steel shell, electric heating
Heating Power	Diameter of tank heater from the first area to the second land area 60180220V*900W
The Diameter of the Die Head Heater in the Seventh Zone	12040220V*400W
Electrical Components	Huibang 45*45 temperature control meter, Andre contactor, Shanghai Jinghao button, Holip 1.5KW inverter

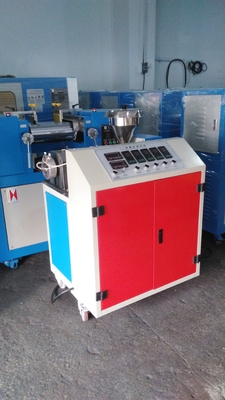

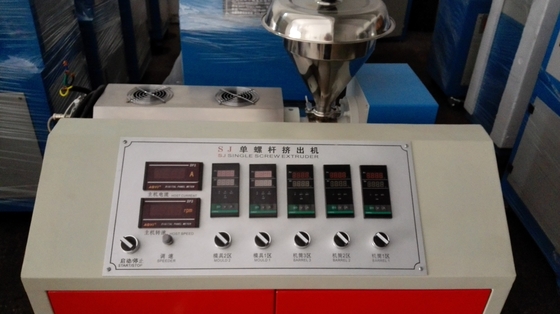

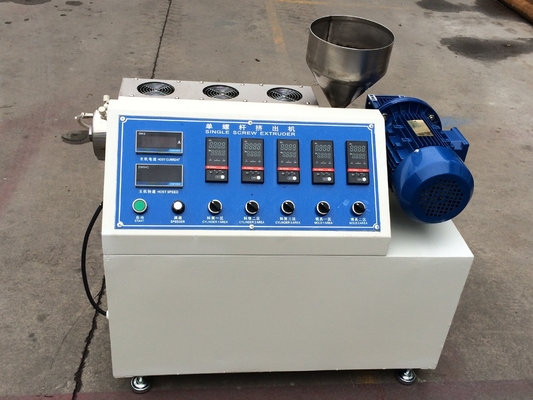

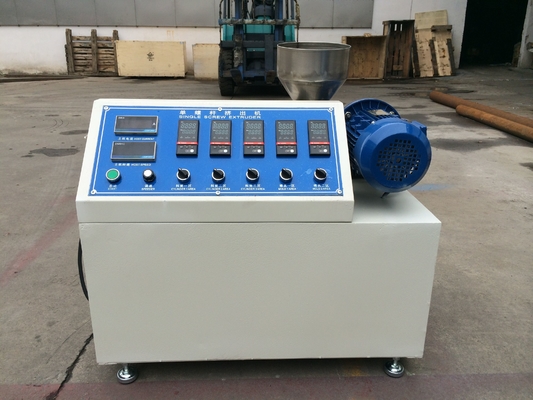

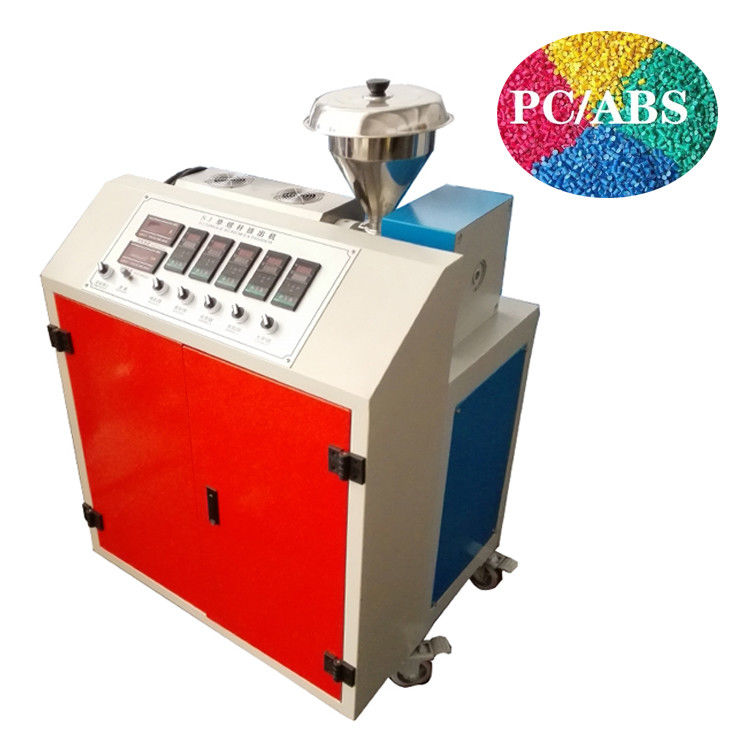

Product Image
