Digital Izod And Charpy Combined Impact Test Machine

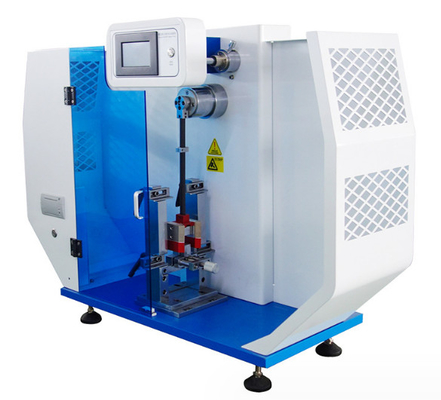

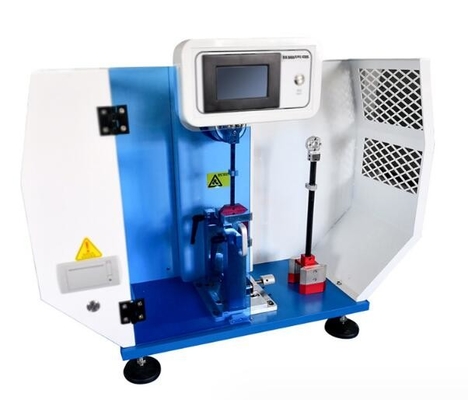

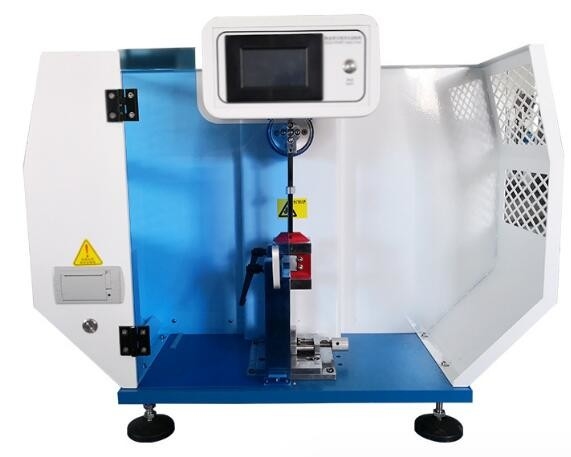

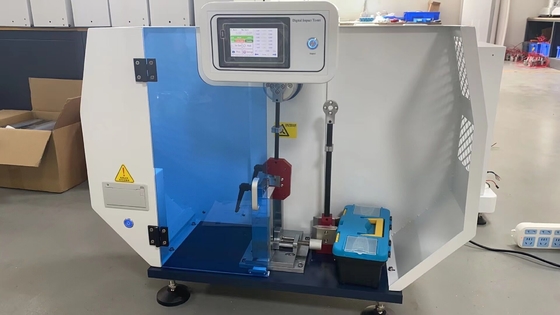

Large Image : Digital Izod And Charpy Combined Impact Test Machine

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-3016G

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Digital Izod And Charpy Combined Impact Test Machine will be Packaged in wooden case （fumigation free）
Delivery Time:	3-7 days
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	100 set per month

Contact Now

Detailed Product Description

Name:	Digital Izod And Charpy Combined Impact Test Machine	Model:	ZL-3016G
Item:	Digital Display Cantilever Beam And Simple Supported Beam Combined Impact Testing Machine	IZOD Pendulum Energy:	2.75J、5.5J
Simply Supported Beam Pendulum Energy:	1J、2J、4J、5J	Impact Velocity:	3.5m/s, 2.9m/s (can Be Designated)
Distance Between Pendulum And The Impact Blade:	335mm, 230mm	Simply Beam Support Distance:	40mm, 60mm（62mm）,70mm、95mm
Impact Angle:	30°±1°
Highlight:	Charpy digital izod impact tester , Combined digital izod impact tester , digital izod impact tester

Digital Izod and Charpy Combined Impact Test Machine

This advanced multifunctional impact testing machine integrates both cantilever beam and simply supported beam testing capabilities. Designed for ease of use with automatic switching between test methods, it delivers high precision results for determining impact toughness of various non-metallic materials.

Product Introduction

This instrument represents a new generation of multifunctional impact testing equipment that combines cantilever beam and simply supported beam testing in one integrated system. With easy-to-disassemble fixtures and sample holders, the machine automatically switches between cantilever beam and simply supported beam test methods. It offers exceptional ease of use, simple operation, and high test accuracy. Primarily used for determining impact toughness of hard thermoplastic molding and extrusion materials, hard thermoset molding materials, and fiber-reinforced thermoset and thermoplastic composite materials.

Compliance Standards

ISO179-2000: Determination of Impact Strength of Plastic-Hard Material Simply Supported Beams
GB/T 21189: Inspection of Pendulum Impact Tester for Plastic Simply Supported Beam, Cantilever Beam and Tensile Impact Test
GB/T1043-2008: Impact Test Method for Rigid Plastic Simply Supported Beam
JB/T8762-1998: Plastic Simply Supported Beam Impact Testing Machine
GB/T 18743-2002: Impact Test Method of Simply Supported Beam of Thermoplastic Pipe for Fluid Transport
ISO180-2000: Plastics - Hard materials - Determination of IZOD impact strength
GB/T1843-2008: Rigid plastics - IZOD impact testing machine
JB/T8761-1998: Impact test machine for plastic IZOD
ASTM D256-2010: Test Method for Determining IZOD Pendulum Impact Strength of Plastics

Key Features

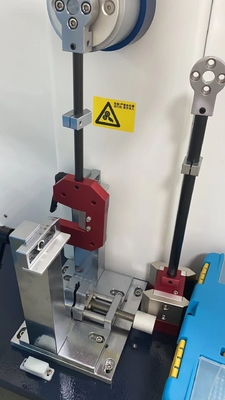

Integrated cantilever beam and simply supported beam impact testing with easy fixture and sample holder disassembly
High precision intelligent controller with LCD display for direct and accurate data reading
High strength carbon fiber swing rod (patent applied) improves material rigidity and enables shock-free testing
Imported high-resolution digital encoder for precise and stable angle testing
Aerodynamic impact hammer and imported ball bearings minimize friction loss
Automatic calculation of final results with storage for 24 test data sets and averaging capability
Bilingual Chinese/English operating interface with multiple unit options (J/m, KJ/㎡, kg-cm/cm, ft-ib/in)
Built-in microprinter for immediate test data printing

Technical Specifications

Item	Digital Display Cantilever Beam and Simple Supported Beam Combined Impact Testing Machine
Model	XJL-5/5.5D
Pendulum Energy (IZOD)	2.75J, 5.5J
Pendulum Energy (Simply Supported Beam)	1J, 2J, 4J, 5J
Pendulum Pre-Evaluation Angle	150°
Impact Velocity	3.5m/s, 2.9m/s (can be designated)
Distance Between Pendulum and Impact Blade	335mm, 230mm
Simply Beam Support Distance	40mm, 60mm(62mm), 70mm, 95mm
Cantilever Impact Edge Radius	R=0.8±0.2mm
Simply Supported Beam Impact Edge Radius	R=2mm±0.5mm
Distance Between Impact Blade to Upper Mouth	22mm±0.05mm
Impact Angle	30°±1°
Power	AC220V±10% 50HZ
