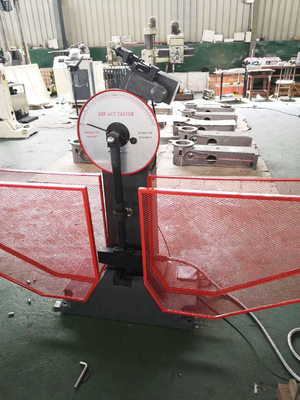

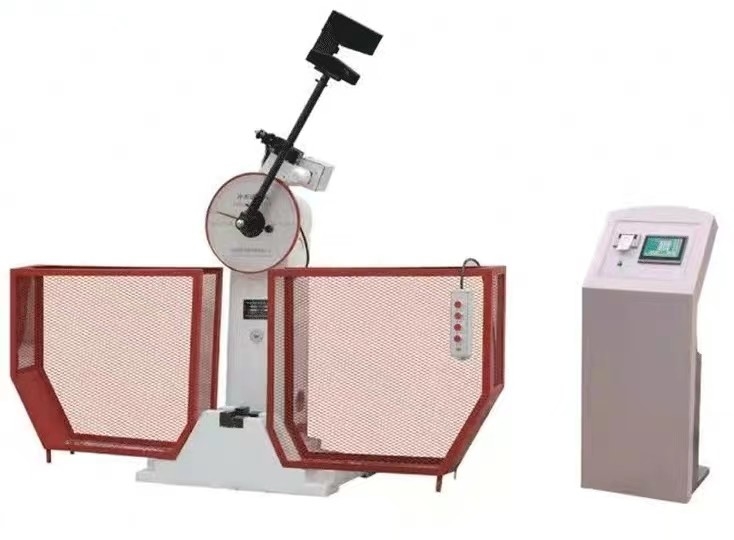

Computer Controlled Metal Pendulum Impact Testing Machine

Large Image : Computer Controlled Metal Pendulum Impact Testing Machine

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-3016F

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Computer Controlled Metal Impact Testing Machine Pendulum Impact Testing Machine will be Packaged in wooden case （fumigation free）
Delivery Time:	3-7 days
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	100 set per month

Contact Now

Detailed Product Description

Name:	Computer Controlled Metal Impact Testing Machine Pendulum Impact Testing Machine	Model:	ZL-3016F
Impact Energy:	150J, 300J	Pendulum Prelift Angle:	150°
Distance From The Center Of The Pendulum Axis To The Impact Point:	750mm	Impact Speed:	5.2m/s
Span Of Sample Support:	40mm	Sample Size:	10 (7.5, 5) × 10 × 55mm
Dimensions:	650mm×1960mm×2100mm
Highlight:	Computer Controlled Pendulum Impact Testing Machine , Metal Pendulum Impact Testing Machine

Computer Controlled Metal Pendulum Impact Testing Machine

Microcomputer Screen Display Automatic Impact Testing Machine

This advanced testing machine is designed to evaluate the impact resistance performance of metal materials under dynamic load conditions. It serves as an essential testing instrument for metallurgy, machinery manufacturing, and scientific research organizations conducting new materials research.

Key Performance Features

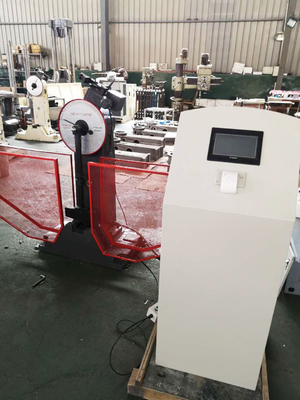

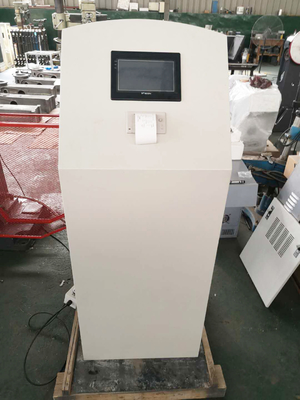

PC microcomputer-controlled semi-automatic operation with digital screen display
Automated swing, impact, measurement, calculation, display, and printing functions
U-shaped pendulum design ensures precise striking center and pendulum moment accuracy
Screw-fixed impact knife for easy and convenient replacement
Comprehensive safety features including protection pin and fully enclosed protective cover
Equipped with force sensor and angular displacement sensor for high-speed sampling and calculation
Automatic pendulum return using residual energy for continuous testing efficiency
Remote data transmission capability available upon request

Technical Specifications

Parameter	Specification
Impact Energy	150J, 300J
Pendulum Prelift Angle	150°
Distance from Pendulum Axis to Impact Point	750mm
Impact Speed	5.2m/s
Span of Sample Support	40mm
Jaw Fillet	R 1-1.5mm
Impact Blade Fillet	R 2-2.5mm R 8mm
Impact Knife Thickness	16mm
Angle Accuracy	±0.1°
Sample Size	10 (7.5, 5) * 10 * 55mm
Dimensions	650mm1960mm2100mm
Net Weight	Approximately 550Kg
Power Supply	AC three-phase 380V±10% 50HZ 5A
Environmental Conditions	No corrosive media, vibration, or strong electromagnetic field interference

Compliance Standards

This testing machine conforms to GB/T3803-2002 "Inspection of Pendulum Impact Testing Machine" and performs impact tests according to GB/T229-2007 "Metal Charpy Notch Impact Test Method" national standards.
