300J Metal Impact Testing Machine Digital

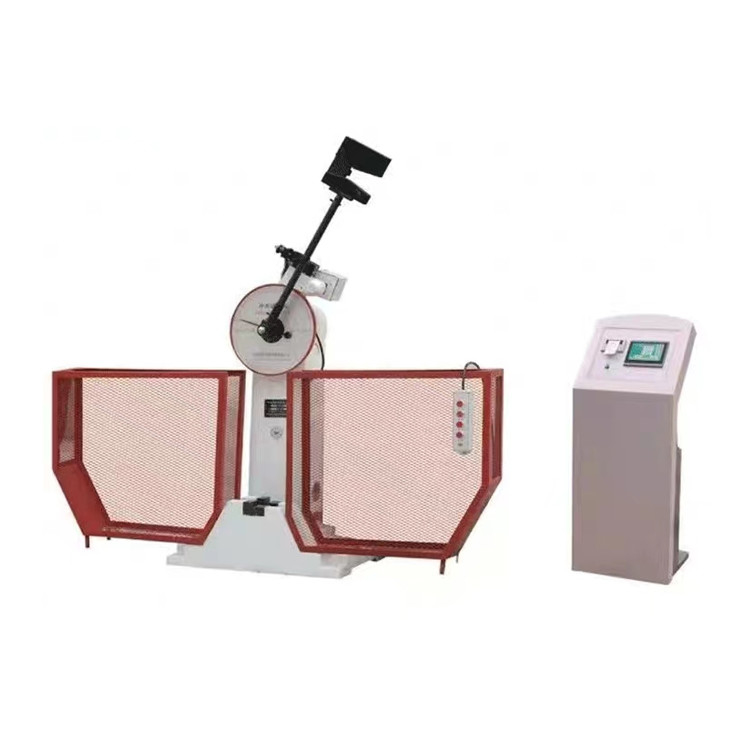

Large Image : 300J Metal Impact Testing Machine Digital

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-3016E

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	300J Metal Impact Testing Machine will be Packaged in wooden case （fumigation free）
Delivery Time:	3-7 days
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	100 set per month

Contact Now

Detailed Product Description

Name:	300J Metal Impact Testing Machine	Model:	ZL-3016E
Impact Energy:	300J (sledge Hammer) 150 (small Hammer)	Impact Speed:	5.2m/s
Pendulum Prelift Angle:	150°	Span Of Sample Support:	40mm
Fillet Of Support Jaw:	R 1.0~1.5mm	Impact Blade Fillet:	R 2.0~2.5mm R 8mm
Distance From Pendulum Center To Impact Point:	750mm	Warranty Period:	1 Year
Highlight:	300j impact testing machine , metal impact testing machine , Metal Impact Testing Machine Digital

300J Metal Impact Testing Machine Digital

Digital Impact Testing Machine

The 300J Metal Impact Testing Machine represents advanced digital testing technology for industrial applications, providing precise impact measurement and analysis capabilities.

Equipment Specifications

Equipment Name: Digital Impact Testing Machine

Model: 300J

Performance Features

Touch screen control with digital display for intuitive operation
PLC-controlled semi-automatic testing with electric swing mechanism
Automatic calculation and digital display of impact absorption energy and toughness
U-shaped pendulum design ensures accurate striking center and precise moment
Screw-fixed impact knife for easy replacement and maintenance
Complete safety protection with safety pins and protective nets
High-speed angle sensor with sampling, storage, and calculation functions
Automatic swing preparation using remaining energy for continuous testing
Compliant with GB/T3038-2002, GB/T229-2007, and JJG145-82 standards
American standard impact blade conversion capability

Technical Specifications

Parameter	Specification
Impact Energy	300J (sledge hammer) / 150J (small hammer)
Impact Speed	5.2m/s
Pendulum Prelift Angle	150°
Span of Sample Support	40mm
Fillet of Support Jaw	R 1.0~1.5mm
Impact Blade Fillet	R 2.0~2.5mm / R 8mm
Distance from Pendulum Center to Impact Point	750mm
Standard Sample Size	10 (7.5, 5) * 10 * 55mm
Power Supply and Power	Three-phase four-wire 50Hz 380V
Angle Accuracy	±0.1°
Host Size	20006501960mm
Digital Display Cabinet Dimensions	3604001200mm
Operating Environment	No corrosive media, no vibration, no strong electromagnetic field interference
Weight	Approximately 550Kg

Standard Equipment Configuration

One 300 joule host unit
150J and 300J pendulums (one each)
Motor (installed on host)
Pendulum transmission device set
Automatic hanging device set
Insurance mechanism set
Safety protection device set
Support adjuster
Sample centering device
Proximity switch
Touch screen display (installed on digital display cabinet)
Micro-printer (installed on digital display cabinet)
Pendulum remover

Application Benefits

Ideal for continuous impact testing in laboratories and industrial settings, particularly suited for metallurgy and mechanical manufacturing industries requiring high-volume impact testing with superior accuracy and efficiency.
