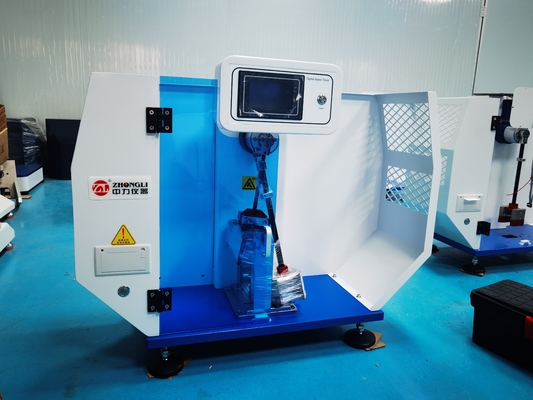

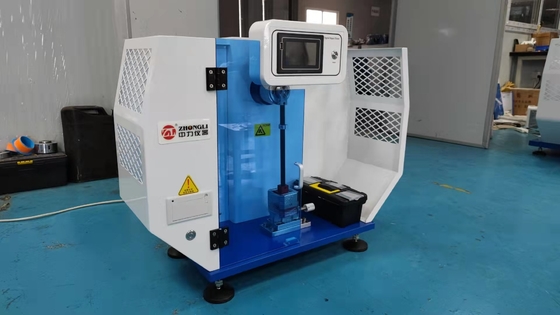

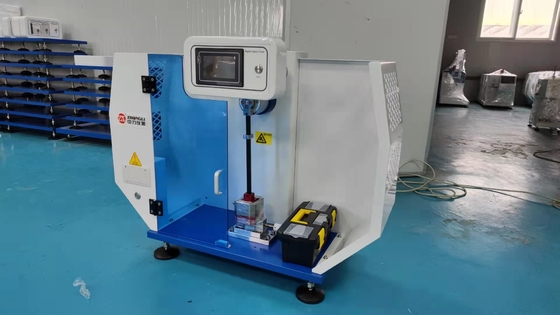

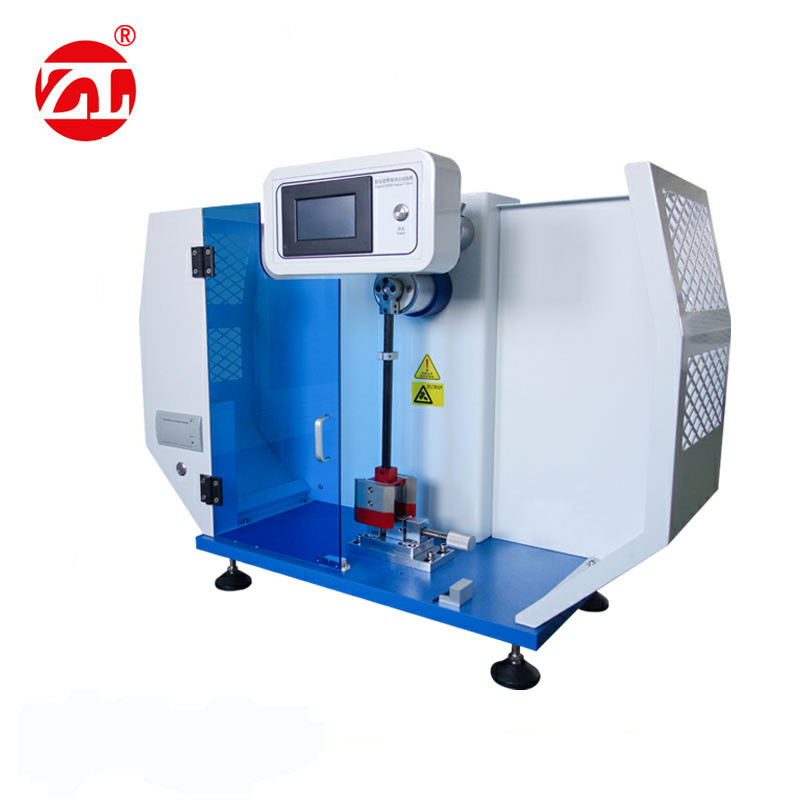

ISO digital display IZOD Impact Tester Impact Test Method 3.5m/s

Large Image : ISO digital display IZOD Impact Tester Impact Test Method 3.5m/s

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-3016C

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	IZOD Impact Tester Impact Test Method will be Packaged in wooden case （fumigation free）
Delivery Time:	3-7 days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	100 set per month

Contact Now

Detailed Product Description

Name:	IZOD Impact Tester Impact Test Method	Model:	ZL-3016C
Impact Speed:	3.5m/s	Pendulum Energy:	1J 2.75J 5.5J 11J 22J
Distance From The Center Of The Pendulum Shaft To The Impact Blade:	0.322m	Pendulum Lifting Angle:	160°
Sample Type:	Meet The Requirements Of GB1843, JB/T8761 And ISO180 Standards	Overall Dimensions Of The Instrument:	550mm×350mm×850mm
Warranty Period:	2 Years
Highlight:	digital display IZOD Impact Tester , ISO IZOD Impact Tester , 3.5m/s IZOD Impact Tester

IZOD Impact Tester Impact Test Method

Rubber Test Machine:

rubber machine.pdf

●Purpose:

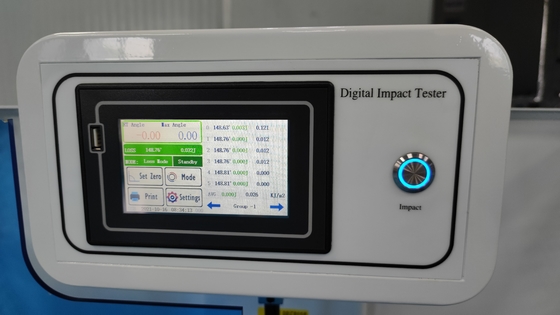

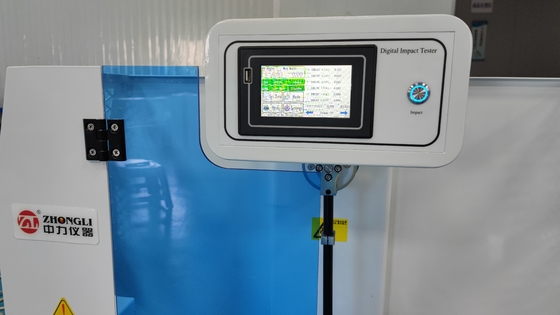

The digital display cantilever beam impact testing machine is used to test hard thermoplastics (including plates, pipes, plastic heterogeneous materials) and thermosetting plastics, filled and fiber-reinforced plastics, reinforced nylon, glass fiber reinforced plastics, ceramics, cast stone, electrical insulation materials, etc. Impact toughness of metallic materials, and impact strength of sheets of these plastics, including laminates. Intuitive digital display, simple structure, convenient operation and accurate data are the main features of this testing machine.

●Applicable standards:

ISO180

●Main Technical Parameters:

Impact Speed	3.5m/s
Pendulum Energy	1J 2.75J 5.5J 11J 22J
Distance from the Center of the Pendulum Shaft to the Impact Blade	0.322m
Pendulum Lifting Angle	160°
The distance from the impact blade to the top of the jaw is 22 mm
Blade Fillet Radius	R=0.8mm
Sample Type	meet the requirements of GB1843, JB/T8761 and ISO180 standards
Overall Dimensions of the Instrument	550mm×350mm×850mm
Power Supply	AC220V, 50Hz
Net Weight of the Instrument	160kg

ISO digital display IZOD Impact Tester Impact Test Method 3.5m/s 0
