●Product Introduction:

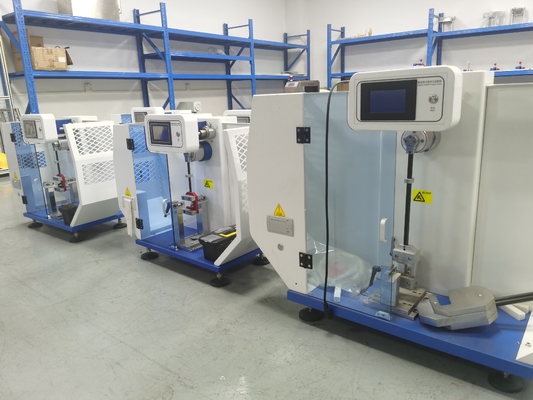

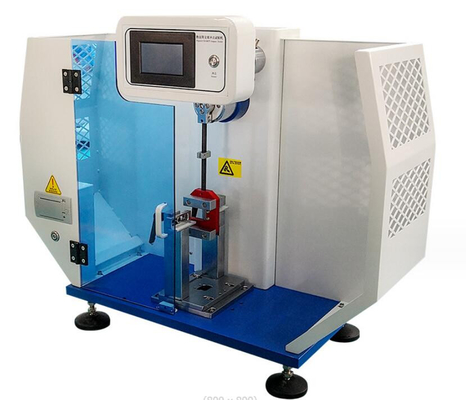

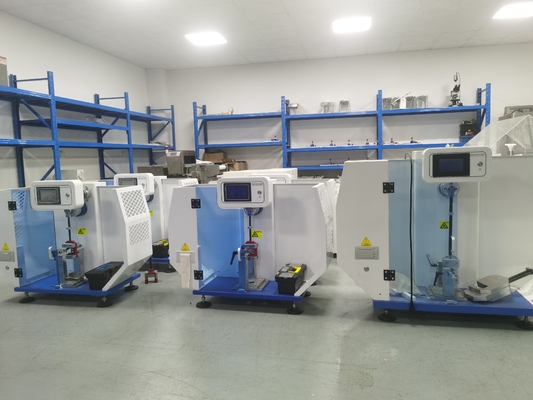

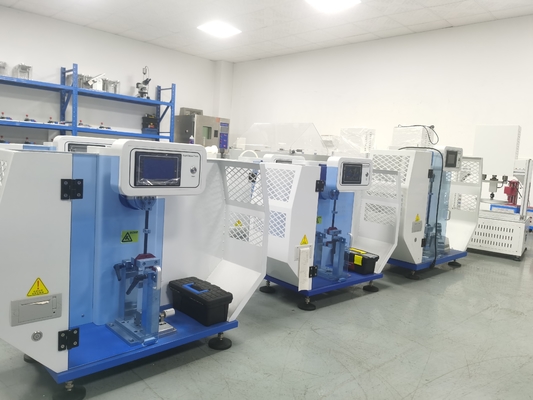

The digital simply supported beam impact testing machine is mainly used for measuring the impact toughness of non-metallic materials such as hard plastics, reinforced nylon, fiberglass, ceramics, cast stones, and electrical insulation materials. It is an ideal testing equipment for departments such as the chemical industry, scientific research institutions, universities, and quality inspection.
●Executive Standards:
ISO179-2000 "Plastics - Determination of Impact Strength of Simply Supported Beams of Hard Materials"
GB/T1043-2008 "Impact Test Method for Simply Supported Beams of Rigid Plastics"
JB/T8762-1998 "Plastic Simply Supported Beam Impact Testing Machine"
GB/T 18743-2002 "Thermoplastic pipes for fluid transportation - Simple beam impact test method" (applicable to pipe components)
●Product Features:
High precision intelligent controller, equipped with LCD display, can intuitively and accurately read data
The first domestic company to use carbon fiber pendulum rods (patented) to improve the rigidity of the material in the direction of impact, and to maximize the concentration of impact mass on the center of mass of the pendulum, truly achieving vibration free impact testing and increasing service life.
Adopting imported high-resolution digital encoders, the angle testing accuracy is higher and more stable
Impact hammer and imported ball bearings that comply with aerodynamic principles greatly reduce friction losses caused by machinery
Automatically calculate the final result, and the test data can save 12 sets of data and calculate the average value
The Chinese and English operation interface can be selected, and the test results can be in units such as J/m, KJ/㎡, kg cm/cm, ft ib/in, etc
Built-in micro printer to print test data
●Technical Specifications:
| Model |
JZL-5D |
JZL-15D |
JZL-50D |
| Pendulum Energy |
1J,2J,4J,5J |
7.5J,15J |
25J,50J |
| Pendulum Pre Elevation Angle |
150° |
| Impact Velocity |
2.9M/S |
3.8M/S |
| Class |
Name |
Quantity |
Unit |
Remarks |
| Host |
Impact Testing Machine |
1 |
platform |
|
| Accessory Box |
Toolbox |
1 |
only |
|
| 25J Impact Pendulum |
1 |
hold |
JZL-50D |
| 50J Impact Weight |
1 |
right |
| Simple Supported Beam Sample Fixture |
1 |
set |
Combined on the machine |
| Inner Hexagonal Handle |
1 |
set |
|
| Printer |
1 |
platform |
Combined on the machine |
| Printing Paper |
2 |
volume |
|
