Charpy Impact Tester Pendulum Impact Testing Machine

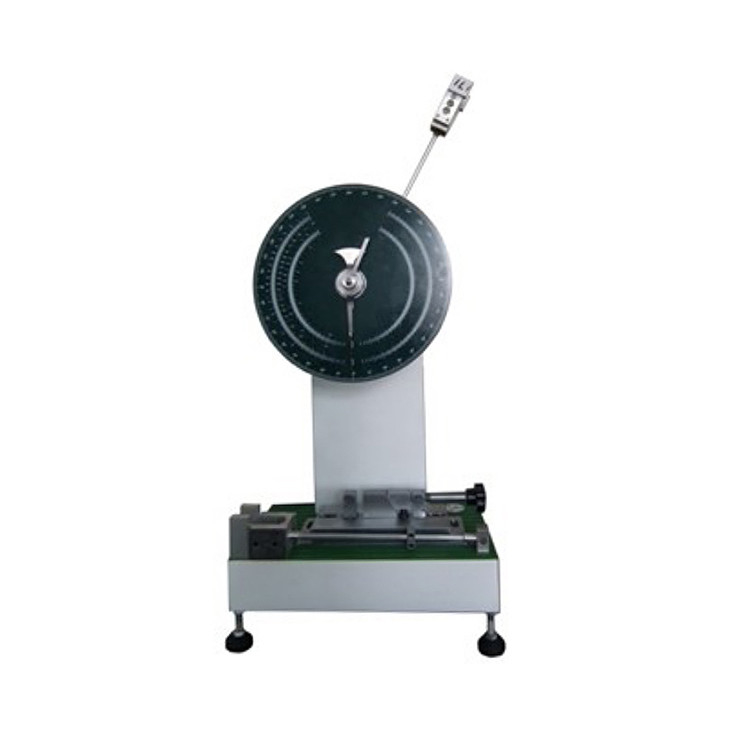

Large Image : Charpy Impact Tester Pendulum Impact Testing Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL -3016

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Charpy Impact Tester Pendulum Impact Testing Machine will be packaged within wooden case.
Delivery Time:	3-7 work days
Payment Terms:	L/C,T/T
Supply Ability:	60 sets / month

Contact Now

Detailed Product Description

Product Name:	Charpy Impact Tester Pendulum Impact Testing Machine	Model:	ZL-3016A
Jaw Bearing Spacing:	40mm,60mm,70mm,95mm	Supporting Cutting Edge Radius:	R=1mm
Impact Of The Blade Angle:	30°	Impact Of The Blade Radius:	R=2mm
Brand:	ZL
Highlight:	Pendulum Impact Testing Machine , Charpy Impact Tester

Charpy Impact Tester Pendulum Impact Testing Machine

The Charpy Impact Tester is a digital display pendulum impact testing machine designed for evaluating the impact toughness of plastic pipes, plates, profiles, engineering plastics, fiberglass, ceramics, cast stone, insulation materials, and other non-metallic materials.

Product Overview

This advanced testing machine features automatic pendulum raising and release functionality. It utilizes the pendulum's remaining energy after specimen impact to reset itself, making it ideal for continuous impact testing applications in industrial and manufacturing environments.

Compliance Standards

Complies with ISO 180, ASTM 256, and other international testing standards.

Technical Specifications

Model	ZL-3016A
Charpy Energy	XJJ-5: 1J, 2J, 4J, 5J XJJ-50: 7.5J, 15J, 25J, 50J
Impact Velocity	XJJ-5: 2.9m/s XJJ-50: 3.8m/s
Pendulum Elevation	160°
Center-to-Center Distance of Pendulum Sample	XJJ-5: 221mm XJJ-50: 380mm
Pendulum Torque	Pd1=0.5155N.m \| Pd2=1.0311N.m Pd4=2.0622N.m \| Pd5=2.5777N.m Pd7.5=3.8662N.m \| Pd15=7.7324N.m Pd25=12.8888N.m \| Pd50=25.777N.m
Jaw Bearing Spacing	40mm, 60mm, 70mm, 95mm
Supporting Cutting Edge Radius	R=1mm
Impact Blade Angle	30°
Impact Blade Radius	R=2mm

Key Features

Advanced photoelectric encoder technology for precise angle measurement
Complete digital measurement of material absorption energy and impact intensity
Comprehensive energy loss detection and correction functions
High precision and stability with extensive test range
Versatile testing capabilities through adjustable pendulum weights
Suitable for both IZOD and Charpy impact testing methodologies
