Computer Type Thermal Deformation Vicat Softening Point Testing Machine

Computer Type Thermal Deformation Vicat Softening Point Testing Machine
Computer Type Thermal Deformation Vicat Softening Point Testing Machine
video play

Large Image :  Computer Type Thermal Deformation Vicat Softening Point Testing Machine

Product Details:
Place of Origin: China
Brand Name: ZL
Certification: ISO
Model Number: ZL-3015A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Computer Type Thermal Deformation Vicat Softening Point Testing Machine is Packaged in wooden case.
Delivery Time: 7-10 Days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 set per month
Detailed Product Description
Product Name: Computer Type Thermal Deformation Vicat Softening Point Testing Machine Power: Electronic
Heating Rate: (120±10)°C/h Temperature Range: RT~300℃
Temperature Accuracy: ±0.5℃ Max. Deflection Error: ±0.01mm
Sample Holder: 3 Pcs Heating Power: 4KM
Warranty: 24 Month Key Words: Vicat HDT
Highlight:

Vicat Softening Point Testing Machine

,

Computer Type Softening Point Testing Machine

Computer Type Thermal Deformation Vicat Softening Point Testing Machine







Rubber Testing Machine:

rubber machine.pdf



Product Introduction:

It is mainly used for the determination of thermal deformation and Vicat softening point temperature of polymer materials (such as plastics, rubber, nylon, electrical insulation materials, etc.). It is suitable for colleges and universities, scientific research units and product quality supervision and inspection units.

The machine adopts Windows 98, Windows 2000 or Windows XP Chinese operation interface, and is equipped with control software. During the test process, it can monitor the curve trend of the test temperature and test deformation in real time, and dynamically draw the curves of temperature and deformation in real time. Realize historical storage, print test reports, so that you can check the previous test data at any time in the future, and conduct comparative research on various experimental data. It is a highly intelligent test instrument. , the interface will automatically display the deformation and temperature value at that place.

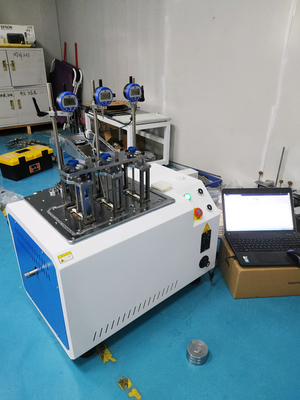

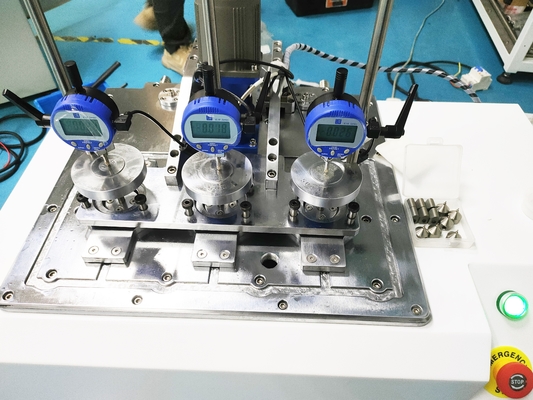

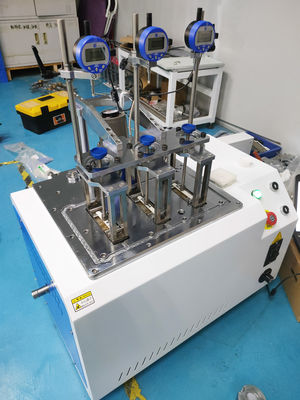

The instrument is a vertical cabinet structure, a 45º double-helix automatic stirring system is used in the constant temperature medium box, the oil tank has a special structure, the temperature uniformity is good, and the accuracy is maintained at ±0.5°C. The temperature is controlled by advanced silicon controlled rectifiers. The displacement sensor has fine-tuning and fine-tuning dual-adjustment methods. It has an emergency stop switch. The rear control panel is a door-type structure with a lock, which is convenient for machine maintenance and maintenance. The lifting system is integrated. , to reduce noise. Therefore, the temperature gradient of the medium is small, and the constant temperature is uniform. When the test temperature reaches the upper limit setting temperature, the heating will be automatically stopped. The test frame has an automatic lifting function, and the operation is simple.



Meet Standard:

ISO 2507,ISO 75,ISO 306,ASTMD 1525,ASTMD 648





Technical Parameters:

Temperature Control Range Ambient temperature—300°C
Heating Rate

120±10°C/h (12±1°C/6min)

50±10°C/h (5±1°C/6min)

Maximum Temperature Error ±0.5°C
Deformation Measurement Method Displacement sensor
Variable Measuring Range 0mm—1.1mm
Maximum Deformation Error ±0.01 mm
Test Medium Methyl silicone oil or transformer oil
Number of Sample Racks 3
Power Supply 220V AC 50Hz 4.5KWA





Computer Type Thermal Deformation Vicat Softening Point Testing Machine 0

Computer Type Thermal Deformation Vicat Softening Point Testing Machine 1

Computer Type Thermal Deformation Vicat Softening Point Testing Machine 2
