Melt Flow Index Tester Touch Screen Volumetric Melt Flow Index Meter

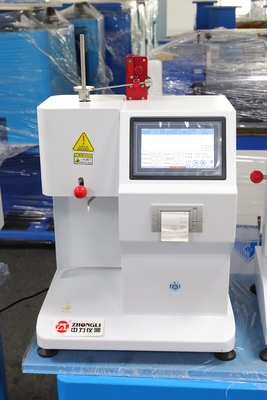

Large Image : Melt Flow Index Tester Touch Screen Volumetric Melt Flow Index Meter

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-3014B

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Melt Flow Index Tester Touch Screen Volumetric Melt Flow Index Meter will be Packaged in wooden case （fumigation free）
Delivery Time:	3-7 days
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	100 set per month

Contact Now

Detailed Product Description

Product Name:	Melt Flow Index Tester Touch Screen Volumetric Melt Flow Index Meter	Key Words:	Melt Flow Index
Model:	ZL-3014B	Temperature Range:	0 ℃ -450 ℃
Temperature Fluctuation:	±0.2℃	Displacement Accuracy:	0.001mm
Volume Timing:	0.001S	Barrel Diameter:	Φ2.095±0.005mm
Length Of Outlet:	8.000±0.025mm	Diameter Of Charging Barrel:	Φ9.550±0.025mm
Weight Accuracy:	±0.5%	Power Supply Voltage:	AC220V±10% 50HZ
Highlight:	Volumetric Melt Flow Index Tester , Touch Screen Melt Flow Index Tester , Melt Flow Index Tester

Melt Flow Index Tester Touch Screen Volumetric Melt Flow Index Meter

Professional melt flow index testing equipment for precise measurement of thermoplastic melt flow rates using both mass and volume methods.

Download Documentation:
ZL-3014B Automatic Melt Flow Rate Meter.pdf
Rubber Testing Machine Documentation

Product Overview

This melt flow index tester measures the MFR value of various plastics and resins in viscous flow state under specific temperature and load conditions. It calculates the melt flow rate through a standard die every 10 minutes, making it suitable for engineering plastics including polycarbonate, polyarylsulfone, fluoroplastics, nylon, as well as polyethylene (PE), polystyrene (PS), polypropylene (PP), ABS resin, polyoxymethylene (POM), and other thermoplastics. Widely used in plastic production, manufacturing, petrochemical industries, research institutions, and quality inspection departments.

Compliance Standards

ISO 1133:1997 - Determination of Thermoplastic Melt Mass Flow Rate MFR and Melt Volume Flow Rate MVR
ASTM D1238 - Standard Test Method for Determination of Melt Flow Rate of Thermoplastics by Extrusion Plastometer

Testing Methods

Mass Method and Volume Method (MFR & MVR)

Display Interface

7-inch Touch Screen Controller

Key Features

Chinese and English color LCD display interface

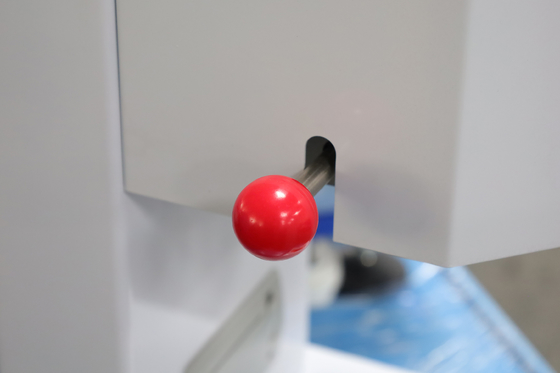

Manual and automatic cutting capabilities
Dual temperature control system for precise temperature accuracy and higher heating efficiency
Dual-inlet sensors for accurate upper and lower temperature gradients, independent operation capability, and extended service life
Barrel constructed from imported Hastelloy alloy with nitriding treatment
Die made from durable carbon tungsten steel
Insulation barrel manufactured from SUS304 stainless steel for long-term high-temperature rust resistance
Automatic result calculation with printout functionality

Technical Specifications

Temperature Range	0℃ - 450℃
Temperature Fluctuation	±0.2℃
Temperature Uniformity	±1℃
Temperature Display Resolution	0.1℃
Time Display Resolution	0.1S
Displacement Accuracy	0.001mm
Volume Timing	0.001S
Mass Method Test Range	0.1-150g/10min
Volume Method Test Result Range	50-5000cm³/10min
Barrel Diameter	Φ2.095±0.005mm
Length of Outlet	8.000±0.025mm
Diameter of Charging Barrel	Φ9.550±0.025mm
Weight Accuracy	±0.5%
Output Mode	Miniature automatic printout
Cutting Method	Manual and automatic cutting
Test Load	Full set of eight-level weights
Power Supply Voltage	AC220V±10% 50HZ
