Melt Flow Index Tester Mass Volumetric Melt Flow Rate Meter

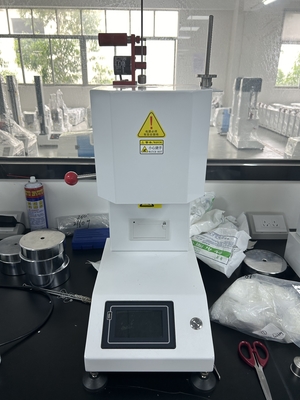

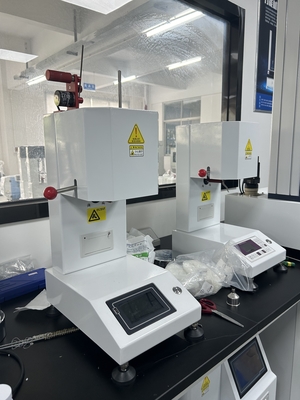

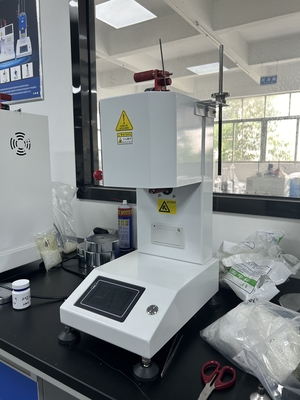

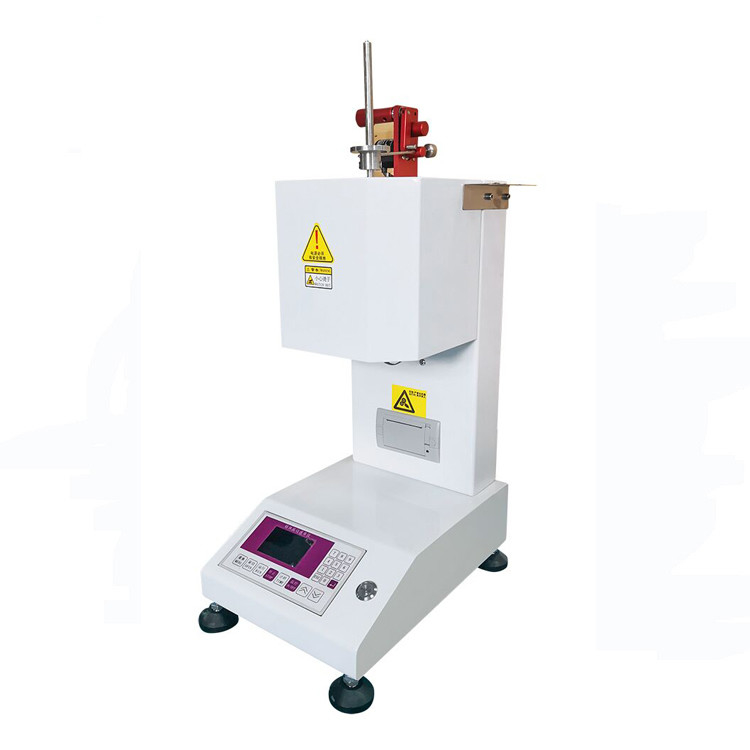

Large Image : Melt Flow Index Tester Mass Volumetric Melt Flow Rate Meter

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-3014

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Melt Flow Index Tester Mass Volumetric Melt Flow Rate Meter will be Packaged in wooden case （fumigation free）
Delivery Time:	3-7 days
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	100 set per month

Contact Now

Detailed Product Description

Product Name:	Melt Flow Index Tester Mass Volumetric Melt Flow Rate Meter	Model:	ZL-3014A
Temperature Range:	0℃-450℃	Temperature Fluctuation:	±0.2℃
Temperature Uniformity:	±1℃	Barrel Diameter:	Φ2.095±0.005mm
Length Of Outlet:	8.000±0.025mm	Diameter Of Charging Barrel:	Φ9.550±0.025mm
Power Supply Voltage:	Power Supply Voltage AC220V±10% 50HZ
Highlight:	Volumetric Melt Flow Rate Meter , Mass Volumetric Melt Flow Rate Meter , Melt Flow Index Tester

Melt Flow Index Tester Mass Volumetric Melt Flow Rate Meter

The Melt Flow Index Tester is designed to measure the Melt Flow Rate (MFR) and Melt Volume Flow Rate (MVR) of various plastics and resins under specific temperature and load conditions. This instrument determines the amount of material extruded through a standard die over 10 minutes, providing essential data for quality control and material characterization.

Download Brief: ZL-3014B Automatic Melt Flow Rate Meter.pdf

Rubber Testing Machine: rubber machine.pdf

Applications

Suitable for testing polycarbonate, polyarylsulfone, fluoroplastics, nylon, and other engineering plastics. Also ideal for polyethylene (PE), polystyrene (PS), polypropylene (PP), ABS resin, polyoxymethylene (POM), and polycarbonate (PC) resin. Widely used in plastic production, manufacturing, petrochemical industries, research institutions, universities, and quality inspection departments.

Compliance Standards

ISO 1133:1997 - Determination of Thermoplastic Melt Mass Flow Rate (MFR) and Melt Volume Flow Rate (MVR)
ASTM D1238 - Standard Test Method for Determination of Melt Flow Rate of Thermoplastics by Extrusion Plastometer

Test Method

Quality Method

Display Interface

Chinese and English color touch screen display

Key Features

Chinese and English color LCD display
Manual and automatic cutting options
Dual temperature control system for precise temperature accuracy and higher heating efficiency
Dual-inlet sensors for accurate upper and lower temperature gradients, independent operation, and extended service life
Barrel made of imported Hastelloy alloy with nitriding treatment
Die constructed from carbon tungsten steel for durability
Insulation barrel made of SUS304 stainless steel, resistant to rust at high temperatures
Automatic result calculation and printout capability

Technical Specifications

Temperature Range	0℃ - 450℃
Temperature Fluctuation	±0.2℃
Temperature Uniformity	±1℃
Temperature Display Resolution	0.1℃
Time Display Resolution	0.1S
Displacement Accuracy	0.01mm
Barrel Diameter	Φ2.095±0.005mm
Length of Outlet	8.000±0.025mm
Diameter of Charging Barrel	Φ9.550±0.025mm
Weight Accuracy	±0.5%
Output Mode	Miniature automatic printout
Cutting Method	Manual and automatic cutting
Test Load	8 levels, 8 sets of weights
Power Supply Voltage	AC220V±10% 50HZ
