ISO 1133 Touch Screen Mass Method Melt Index Meter

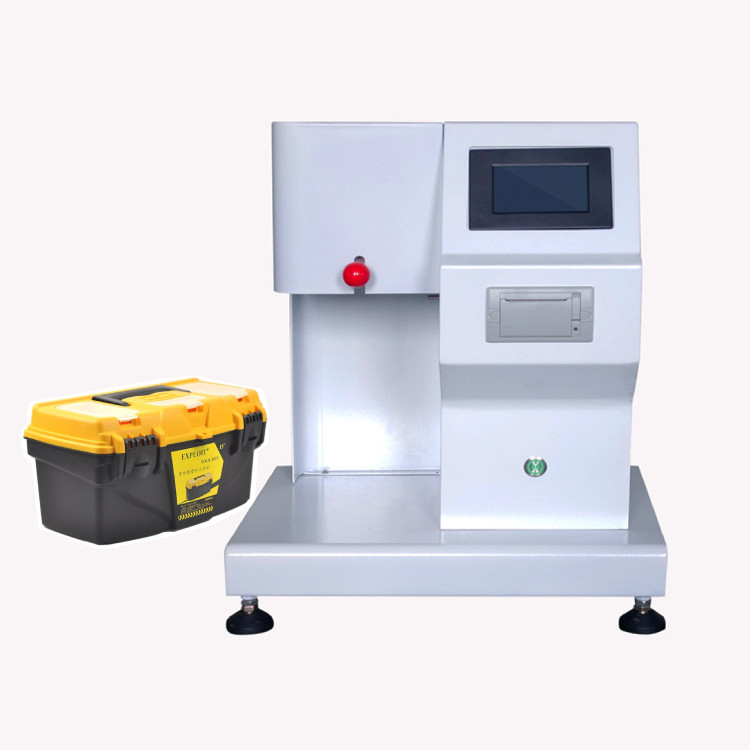

Large Image : ISO 1133 Touch Screen Mass Method Melt Index Meter

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-3013

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable

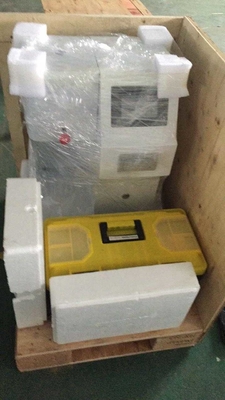

Packaging Details:	ISO 1133 Touch Screen Mass Method Melt Index Meter will be Packaged in wooden case
Delivery Time:	3-7 days
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	100 set per month

Contact Now

Detailed Product Description

Name:	ISO 1133 Touch Screen Mass Method Melt Index Meter	Temperature Range:	0℃-450℃
Temperature Fluctuation:	±0.2℃	Temperature Uniformity:	±1℃
Displacement Accuracy:	0.001mm	Volume Timing:	0.001S
Test Result Range:	0.1-150g/10min	Barrel Diameter:	Φ2.095±0.005mm
Modek:	ZL-3013B
Highlight:	Mass Method Melt Index Meter , Touch Screen Melt Index Meter

ISO 1133 Touch Screen Mass Method Melt Index Meter

Document Downloads

ZL-3013 Melt Flow Rate Meter PDF Rubber Testing Machine PDF

Product Overview

This melt index meter measures the Melt Flow Rate (MFR) value of various plastics and resins in viscous flow state under specific temperature and load conditions. It determines the amount of material passing through a standard die every 10 minutes, making it suitable for testing engineering plastics including polycarbonate, polyarylsulfone, fluoroplastics, nylon, as well as common plastics like polyethylene (PE), polystyrene (PS), polypropylene (PP), ABS resin, polyoxymethylene (POM), and polycarbonate (PC) resin. Widely used in plastic production, manufacturing, petrochemical industries, and by educational institutions, research facilities, and quality inspection departments.

Compliance Standards

ISO 1133:1997 - Determination of Thermoplastic Melt Mass Flow Rate (MFR) and Melt Volume Flow Rate (MVR)
ASTM D1238 - Standard Test Method for Determination of Melt Flow Rate of Thermoplastics by Extrusion Plastometer

Testing Method

Mass Method (MFR)

Display Interface

7-inch Touch Screen Controller

Key Features

Chinese and English color LCD display
Manual and automatic cutting capabilities
Dual temperature control system for precise temperature accuracy and higher heating efficiency
Dual-inlet sensors providing accurate upper and lower temperature gradients, independent operation, and extended service life
Barrel constructed from imported Hastelloy alloy with nitriding treatment; die made from durable carbon tungsten steel
Insulation barrel manufactured from SUS304 stainless steel, resistant to rust at high temperatures
Automatic result calculation and printout functionality

Technical Specifications

Temperature Range	0℃-450℃
Temperature Fluctuation	±0.2℃
Temperature Uniformity	±1℃
Temperature Display Resolution	0.1℃
Time Display Resolution	0.1S
Displacement Accuracy	0.001mm
Volume Timing	0.001S
Test Result Range	0.1-150g/10min
Barrel Diameter	Φ2.095±0.005mm
Length of Outlet	8.000±0.025mm
Diameter of Charging Barrel	Φ9.550±0.025mm
Weight Accuracy	±0.5%
Output Mode	Miniature automatic printout
Cutting Method	Manual and automatic cutting
Test Load	A full set of eight-level weights
Power Supply Voltage	AC220V±10% 50HZ
