DIN 53505 ASTM D2240 Shore C Hardness Tester Shore C Durometer

Large Image : DIN 53505 ASTM D2240 Shore C Hardness Tester Shore C Durometer

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-3012C

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Shore C Hardness Tester Shore C durometer will be Packaged in wooden case （fumigation free）
Delivery Time:	3-5 days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	500 set per month

Contact Now

Detailed Product Description

Model:	ZL-3012C	Name:	DIN 53505 ASTM D2240 Shore C Hardness Tester Shore C Durometer
Dial Value:	0-100 Degrees	Needle Stroke:	A/C Type 0.55N-8.06N D Type 0-44.5N
Standard:	GB/T531-99, GB2411-80, HG/T2489-93, JJG304-2003.	Testing Material:	Rubber
Type:	Types: A Type, D Type And C Type.	Warranty Period:	1 Year
Highlight:	DIN 53505 Shore C Hardness Tester , ASTM D2240 Shore C Hardness Tester

DIN 53505 ASTM D2240 Shore C Hardness Tester Shore C Durometer

Rubber Testing Machine:

●Features:

Type A is suitable for general rubber, synthetic rubber, soft rubber, multi-fat, leather, wax, etc.

Type C is suitable for microporous materials made of crispy and crispy plastics containing foaming agents

Type D is suitable for general hard rubber, resin, acrylic, glass, thermoplastic rubber, printing plate, fiber, etc.

Conform to Standard:DIN53505, ASTMD2240, JISR7215

●Overview:

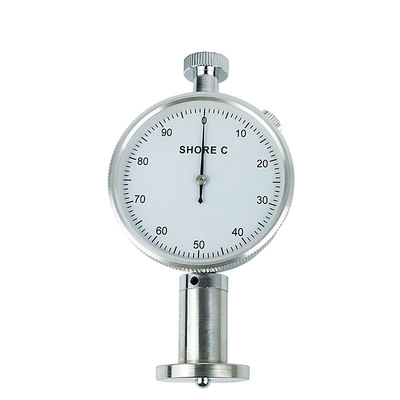

Shore rubber hardness tester is an instrument for measuring the hardness of vulcanized rubber and plastic products. The instrument has three types: A type, D type and C type.

Type A and Type D are suitable for testing low-medium hardness and high-hardness materials respectively. Type C is suitable for testing the hardness of microporous materials for shoes made of rubber and plastic and containing foaming agent when the compression is 50% and the stress is above 0.049MPa.

This hardness tester implements the relevant regulations of GB/T531-99, GB2411-80, HG/T2489-93, JJG304-2003.

●Main Parameters:

Dial Value

0-100 degrees

Needle Stroke

0-2.5mm

Needle End Pressure

A/C Type 0.55N-8.06N

D Type 0-44.5N

DIN 53505 ASTM D2240 Shore C Hardness Tester Shore C Durometer 0
