Precise Measurement Shore D Hardness Tester For Rubber

Large Image : Precise Measurement Shore D Hardness Tester For Rubber

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-3012B

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Packaged in wooden case （fumigation free）
Delivery Time:	3-5 days
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	500 set per month

Contact Now

Detailed Product Description

Model:	ZL-3012B	Name:	Shore D Hardness Tester For Rubber
Dial Value:	0 ～ 100HD	Pressure Needle Stroke:	2.5 Mm
Recommended Range:	20 ～ 90HD	Pressure Needle Head Size:	SR 0.1 Mm
Weight:	～ 0.5 Kg
Highlight:	Rubber Hardness Tester , Shore D Hardness Tester , Rubber Shore D Hardness Tester

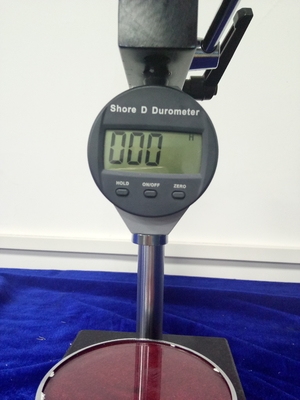

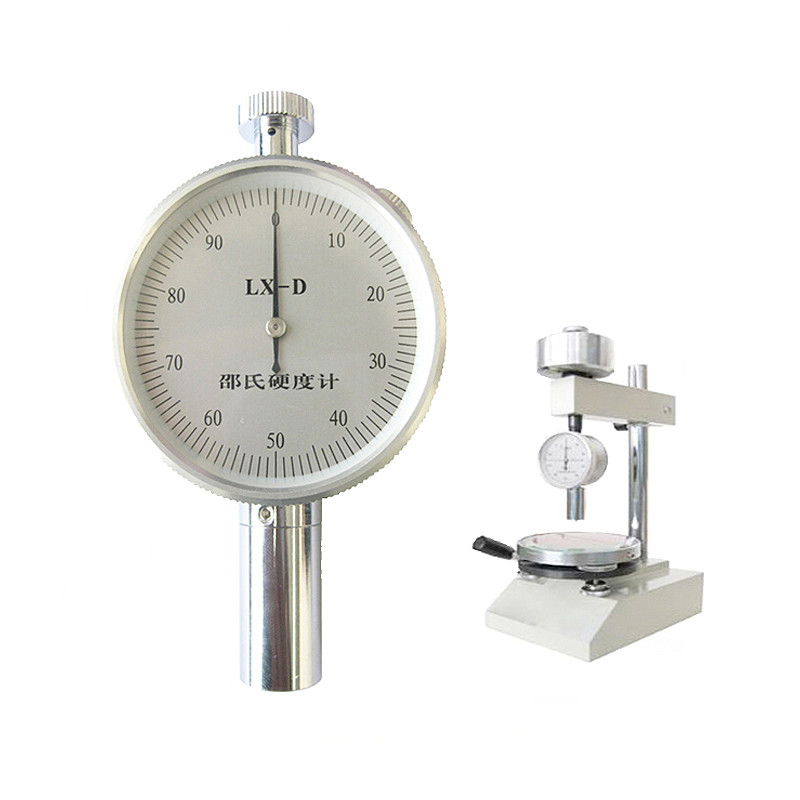

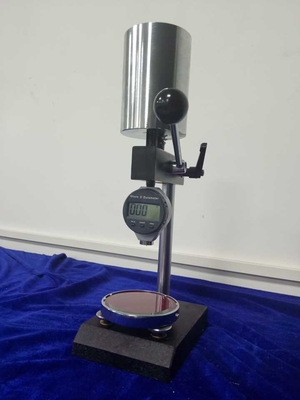

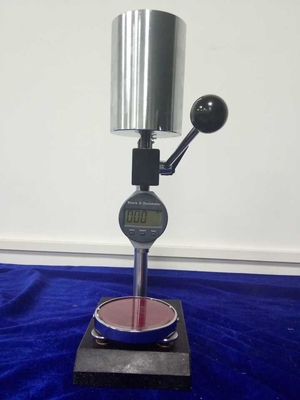

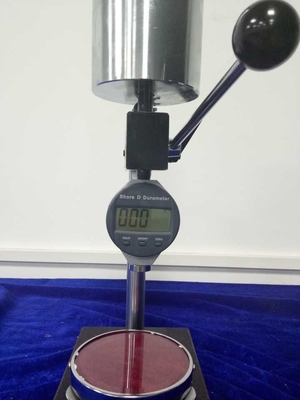

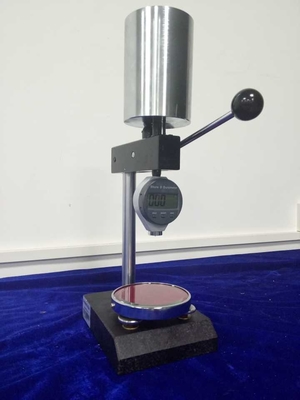

Precise Measurement Shore D Hardness Tester For Rubber

The Shore D Hardness Tester is designed for accurate hardness testing of rubber and other high-hardness materials, providing reliable measurements for quality control and material analysis.

Download Rubber Testing Machine Documentation

Product Summary

The ZL-3012B Shore D Hardness Tester (with stand) is specifically applied for testing the hardness of general hard rubber, hard resin, acrylic, glass, thermoplastic plastics, printing plates, and fiber materials with high hardness requirements.

Corresponding Standards

Complies with HG/T2489 and other related industry standards for hardness testing equipment.

Main Features

Instruction pointer for easy reading and accurate measurements
High precision testing capabilities
Hand-held design for easy portability
Can be used as hand-held measurement or installed on supporting rack for testing

Technical Parameters

Model	ZL-3012B Shore D Hardness Tester
Dial Value	0 - 100HD
Pressure Needle Stroke	2.5 mm
Recommended Range	20 - 90HD
Pressure Needle Head Size	SR 0.1 mm
Weight	Approximately 0.5 kg
