Shore A Hardness Tester Rubber Shore A Durometer

Large Image : Shore A Hardness Tester Rubber Shore A Durometer

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-3012A

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Shore A Hardness Tester Rubber Shore A Durometer will be Packaged in wooden case
Delivery Time:	3-5 days
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	500 set per month

Contact Now

Detailed Product Description

Model Number:	ZL-3012A	Dial Value:	0 ~ 100HA
Recommended Range:	20 ~ 90HD	Pressure Needle Head Size:	0-2.5mm
Weight:	About 0.5 Kg	Recommended Measuring Range:	10～90HA
Needle Stroke:	2.5mm	Dimensions Of Indenter Head:	φ0.79mm
Dimensions:	115×60×25mm
Highlight:	Shore A Hardness Tester , Shore A Hardness Tester Rubber , Rubber Shore A Durometer

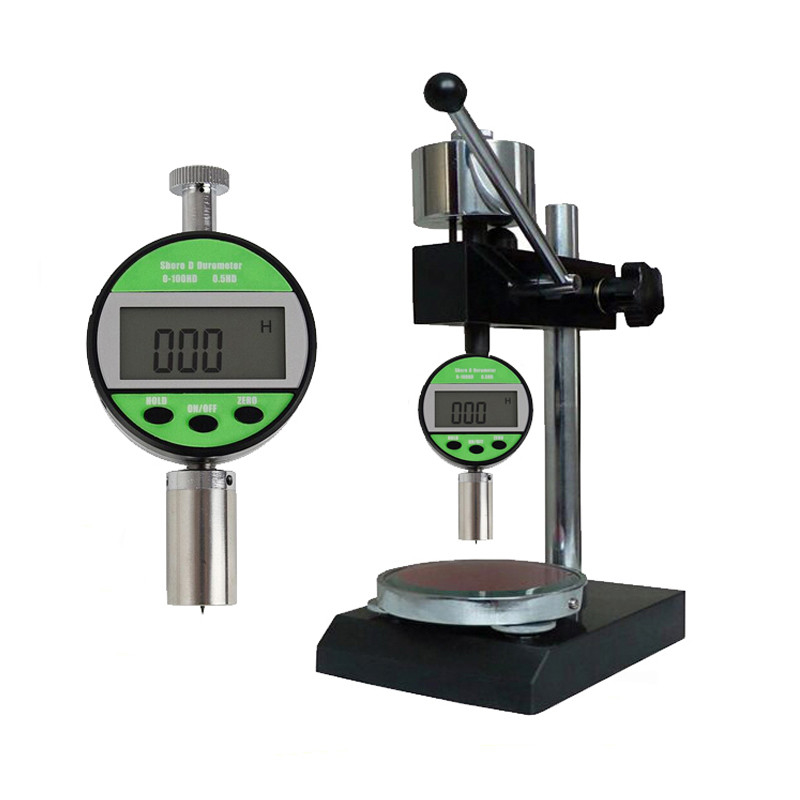

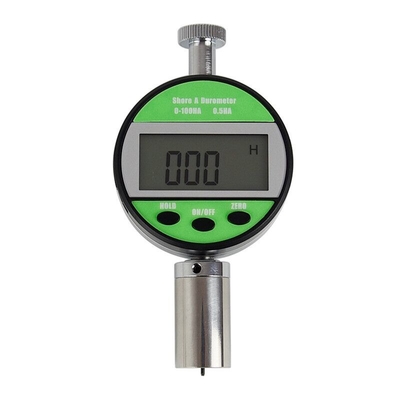

Shore A Hardness Tester Rubber Shore A Durometer

Professional hardness testing equipment for rubber and plastic materials, compliant with GB/T531-1999 standards and other relevant specifications.

Equipment Overview

Primary Function

The Shore Type A Hardness Tester is designed for measuring the hardness of medium and low hardness materials including various types of rubber, plastics, leather, polyolester, and wax.

Technical Specifications

Parameter	Specification
Dial Value	0～100HA
Recommended Measuring Range	10～90HA
Needle Stroke	2.5mm
Dimensions of Indenter Head	φ0.79mm
Dimensions	1156025mm
Weight	~0.5kg

Enhanced Testing Capabilities

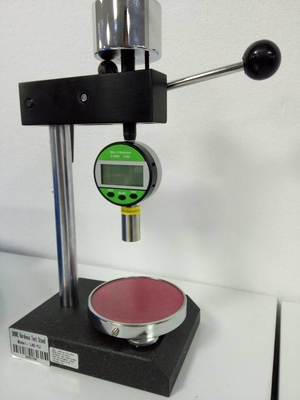

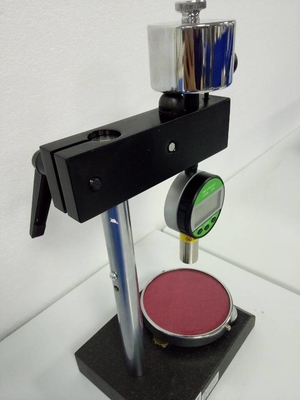

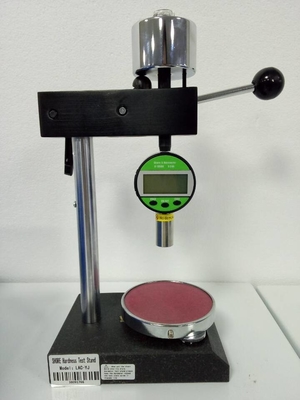

The rubber hardness tester test frame is specifically designed to complement Shore A and Shore C rubber hardness testers. Its scientifically engineered test principle and compact, optimized structure significantly improve testing stability and accuracy. The integration of a high-hardness metal platform eliminates the fragility concerns associated with traditional glass platforms.

Additional Technical Parameters

Compact, rationally designed structure with simple operation
Compatible with optional Shore A and Shore C rubber hardness testers
Manual loading mechanism for ease of use
Dimensions: 100*212*250mm
Net weight: 10 kg
