ASTM D2863 ISO4589-2 Limiting Oxygen Index Tester

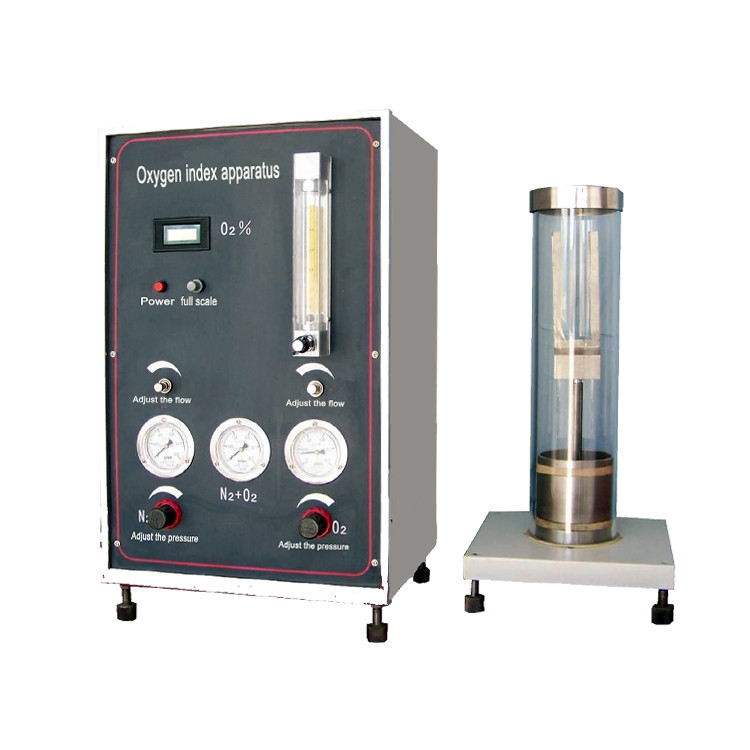

Large Image : ASTM D2863 ISO4589-2 Limiting Oxygen Index Tester

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-3010

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	ASTM D2863 ISO4589-2 Limiting Oxygen Index Tester will be Packaged in wooden case （fumigation free）
Delivery Time:	3-7 Days
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	100 set per month

Contact Now

Detailed Product Description

Name:	ASTM D2863 ISO4589-2 Limiting Oxygen Index Tester	Model:	ZL-3010
Inner Diameter Of Combustion Cylinder:	100MM	Height Of Combustion Tube:	450MM
Accuracy Of Flowmeter:	2.5 Grade	Pressure Gauge Accuracy:	2.5 Grades
Test Environment:	Temperature: 10-35°C, Humidity: 45%-75%	Input Pressure:	0.2—0.3Mpa
Working Pressure:	0.05—0.15Mpa
Highlight:	ASTM D2863 Limiting Oxygen Index Tester , ISO4589-2 Limiting Oxygen Index Tester

ASTM D2863 ISO4589-2 Limiting Oxygen Index Tester

Product Overview

The ASTM D2863 ISO4589-2 Limiting Oxygen Index Tester determines the minimum oxygen concentration required for polymer combustion. Featuring a straightforward design and intuitive operation, this instrument uses imported sensors for precise digital measurements without complex calculations.

This testing machine serves as an essential tool for identifying polymer combustion characteristics and supports research into understanding material combustion processes.

Applications

This instrument is designed for testing combustion properties of plastic, rubber, foam, and various other materials. It delivers accurate, reproducible results and is indispensable for flame retardant material research and production.

Technical Definition

The Limiting Oxygen Index represents the minimum oxygen concentration (expressed as volume percentage) required for a material to sustain flaming combustion in an oxygen-nitrogen mixed flow under specified conditions.

Oxygen Index < 22: Flammable materials
Oxygen Index 22-27: Combustible materials
Oxygen Index > 27: Flame-retardant materials

Compliance Standards

This tester complies with ASTM D2863 and ISO4589-2 international standards.

Download Rubber Testing Machine Documentation

Technical Specifications

Combustion Cylinder Inner Diameter	100mm
Combustion Tube Height	450mm
Flowmeter Accuracy	2.5 grade
Pressure Gauge Accuracy	2.5 grade
Gas Sources	Oxygen (GB3863), Nitrogen (GB3864)
Test Environment	Temperature: 10-35°C, Humidity: 45%-75%
Input Pressure	0.2-0.3Mpa
Working Pressure	0.05-0.15Mpa
Sample Types	Self-supporting and non-self-supporting materials
Display Method	Digital readout
