ASTM D2444 ISO 3127 Pipe Falling Weight Impact Test Machine

ASTM D2444 ISO 3127 Pipe Falling Weight Impact Test Machine
ASTM D2444 ISO 3127 Pipe Falling Weight Impact Test Machine ASTM D2444 ISO 3127 Pipe Falling Weight Impact Test Machine

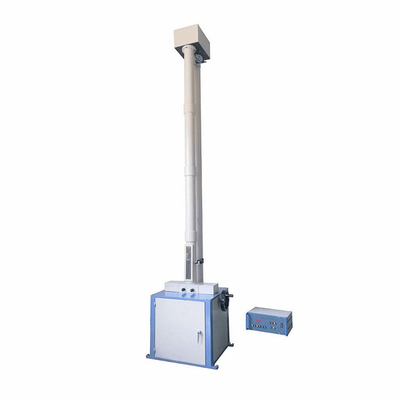

Large Image :  ASTM D2444 ISO 3127 Pipe Falling Weight Impact Test Machine

Product Details:
Place of Origin: China
Brand Name: ZL
Certification: ISO
Model Number: ZL-3008E
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: ASTM D2444 ISO 3127 Pipe Falling Weight Impact Test Machine will be Packaged in wooden case （fumigation free）
Delivery Time: 3-7 Days
Payment Terms: T/T,L/C,Western Union
Supply Ability: 100 set per month
Contact Now
Detailed Product Description
Name: ASTM D2444 ISO 3127 Pipe Falling Weight Impact Test Machine Model: ZL-3008E
Hammer Head Weight Range: 0.25-15KG Maximum Impact Height: Set Arbitrarily Within 0.5-2m
The Maximum Size Of The Sample: Φ400mm Altitude Positioning Accuracy: ≤±1%
Hammer Radius: R5mm, R10mm, R25mm, R30mm, R50mm (or Customized) Table Travel: 400mm
Power Supply: AC220V±10%, 10A
Highlight:

Pipe Falling Weight Impact Test Machine

,

Pipe Falling Impact Test Machine

ASTM D2444 ISO 3127 Pipe Falling Weight Impact Test Machine
The ASTM D2444 ISO 3127 Pipe Falling Weight Impact Test Machine measures the pressure impact resistance of thermoplastic pipes, pipe fittings, double-wall corrugated pipes, PE water supply pipes, and hard plastic plates.
Technical Documentation
Download Rubber Testing Machine PDF
Functions
This Plastic Pipe Drop Hammer Impact Tester evaluates the external impact resistance and pressure impact performance of thermoplastic pipes, pipe fittings, double-wall corrugated pipes, PE water supply pipes, and hard plastic plates.
Technical Parameters
Parameter Specification
Hammer Head Weight Range 0.25-15KG
Maximum Impact Height Set arbitrarily within 0.5-2m
Maximum Sample Size Φ400mm
Altitude Positioning Accuracy ≤±1%
Hammer Radius R5mm, R10mm, R25mm, R30mm, R50mm (or customized)
Table Travel 400mm
Power Supply AC220V±10%, 10A
Key Features
  • Automatic control system with manual hanging and lifting hammer control
  • Adjustable test height from 0.5-2m with digital display
  • Electric-controlled lower space adjustment with automatic sample zeroing
  • Reduces operator workload and improves efficiency
  • Automatic prevention of secondary impact
ASTM D2444 ISO 3127 Pipe Falling Weight Impact Test Machine 0
