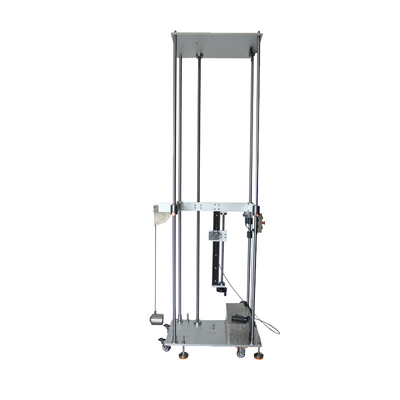

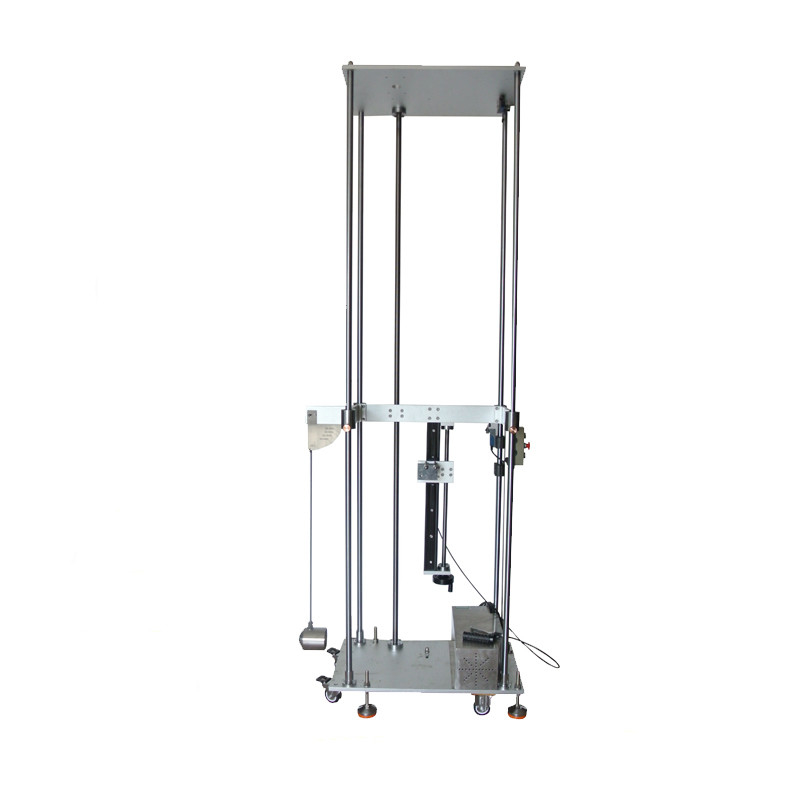

IEC 62262 IK Pendulum Impact Testing Machine

IEC 62262 IK Pendulum Impact Testing Machine
IEC 62262 IK Pendulum Impact Testing Machine

Large Image :  IEC 62262 IK Pendulum Impact Testing Machine

Product Details:
Place of Origin: China
Brand Name: ZL
Certification: ISO
Model Number: ZL-3008D
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: IEC 62262 IK Pendulum Impact Testing Machine will be Packaged in wooden case （fumigation free）
Delivery Time: 3-7 Days
Payment Terms: T/T,L/C,Western Union
Supply Ability: 100 set per month
Contact Now
Detailed Product Description
Name: IEC 62262 IK Pendulum Impact Testing Machine Model: ZL-3008D
Swing Rod Angle: 0-90° Adjustable Length Of Pendulum: 1000MM
Hammer Head Configuration: 2J (IK Code 07), 5J (IK Code 08), 10J (IK09), 20J (IK10) Hammer Heads Impact Test Height: 200-1200mm
Warranty Period: 1 Year
Highlight:

IEC 62262 Pendulum Impact Testing Machine

,

IK Pendulum Impact Testing Machine

IEC 62262 IK Pendulum Impact Testing Machine
This professional testing equipment meets the requirements of IEC61439-1:2009, IEC62262-2002 Article 6 and IEC60068-2-75 standards, designed for evaluating the mechanical impact strength and external protection grade of electrical equipment enclosures.
Product Documentation
Download Technical Specifications (PDF)
Product Overview
Constructed with a durable stainless steel frame, this impact testing machine features a compact and robust design. The mounting bracket offers vertical adjustment capability, while the impact angle can be precisely adjusted from 0-90°. The system ensures straightforward operation and reliable performance.
Technical Parameters
  • Swing Rod Angle: 0-90° adjustable with scale display
  • Length of Pendulum: 1000mm
  • Hammer Head Configuration: Includes 2J (IK07), 5J (IK08), 10J (IK09), and 20J (IK10) hammer heads, each with dedicated swing rod
  • Impact Test Height: 200-1200mm, electrically adjustable
  • Capable of vertical impact testing
Impact Energy Specifications
Energy (J) 2 5 10 20 50
Equivalent Mass (kg ±2%) 0.5 1.7 5 5 10
Drop Height (±1% mm) 400 300 200 400 500
IEC 62262 IK Pendulum Impact Testing Machine 0
