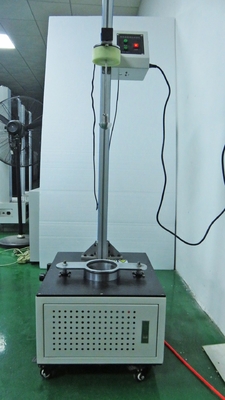

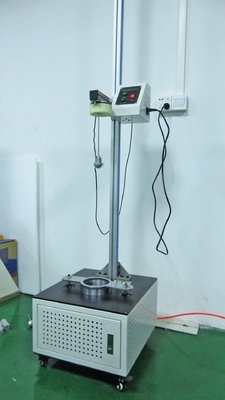

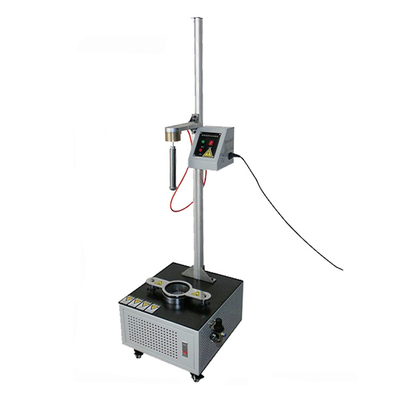

1.8M Free Falling Film Resistance Drop Dart Impact Testing Machine For Plastic Film

Large Image : 1.8M Free Falling Film Resistance Drop Dart Impact Testing Machine For Plastic Film

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-3008C

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	1.8M Free Falling Film Resistance Drop Dart Impact Testing Machine for Plastic Film will be Packaged in wooden case （fumigation free）
Delivery Time:	3-7 Days
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	100 set per month

Contact Now

Detailed Product Description

Name:	1.8M Free Falling Film Resistance Drop Dart Impact Testing Machine For Plastic Film	Model:	ZL-3008C
Maximum Impact Energy:	30J	Measuring Method:	A Method, B Method (optional)

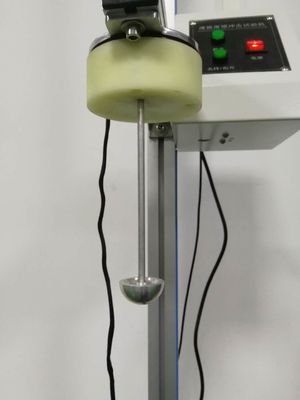

Test Range:	Method A: 50~2000g Method B:300~2000g	Dropping Dart Head Half Diameter:	Method A: 38MM Method B: 50MM
Test Height:	0.3-1.8M Manually Adjustable	Test Conditions:	23°C 50%RH (standard)

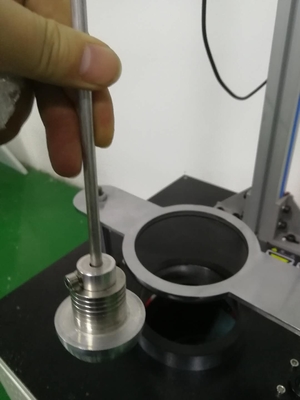

Specimen Clamping:	Pneumatic	Fixture Inner Diameter:	125mm
Highlight:	1.8M Drop Dart Impact Testing Machine , Drop Dart Impact Testing Machine

1.8M Free Falling Film Resistance Drop Dart Impact Testing Machine For Plastic Film

This precision testing instrument is designed to evaluate the impact resistance of plastic film materials using the free-falling dart method cascade approach.

Technical Documentation

Product Overview

The film drop dart impact testing machine implements requirements from international standards including GB/T9639, ASTM D1709, JIS K7124, and ISO7765-1:1988. This instrument determines the impact mass and energy when plastic film and sheet samples are damaged, making it ideal for food packaging QS certification and quality control applications.

Application Scope

This instrument is suitable for testing plastic films and thin sheets with thickness less than 1mm, and materials with a breaking mass range of 0.05~2kg.

Testing Principle

Under specified conditions, the instrument uses Method A to determine the mass of the falling body where the number of damaged samples reaches 50%.

Technical Specifications

Maximum Impact Energy	30J
Measuring Method	Method A, Method B (optional)
Test Range	Method A: 50~2000g Method B: 300~2000g
Dropping Dart Head Diameter	Method A: 38MM Method B: 50MM
Test Height	0.3-1.8M manually adjustable
Test Conditions	23°C 50%RH (standard)
Specimen Clamping	Pneumatic
Fixture Inner Diameter	125MM
