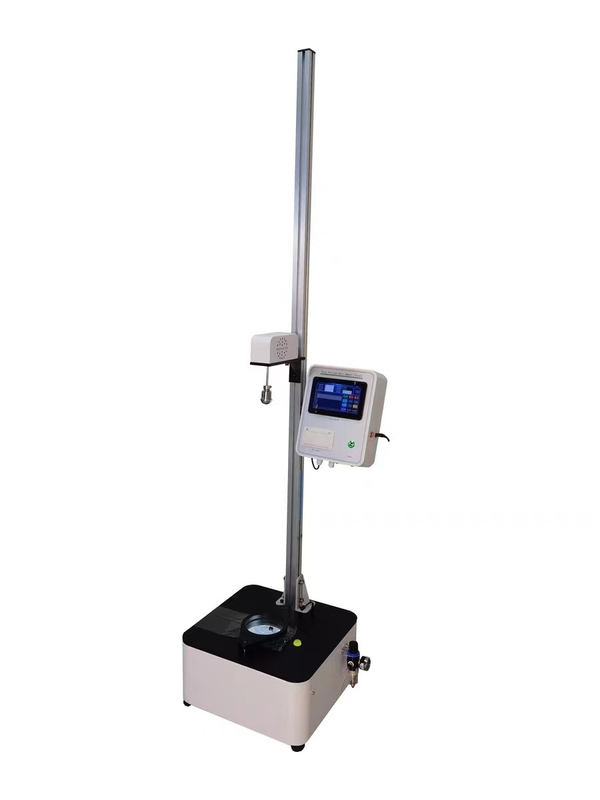

ISO 7765 ASTM D1709 Thin Film Falling Dart Impact Tester

Large Image : ISO 7765 ASTM D1709 Thin Film Falling Dart Impact Tester

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-3008B

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	ISO 7765 ASTM D1709 Thin Film Falling Dart Impact Tester will be Packaged in wooden case （fumigation free）
Delivery Time:	3-7 Days
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	100 set per month

Contact Now

Detailed Product Description

Name:	ISO 7765 ASTM D1709 Thin Film Falling Dart Impact Tester	Model:	ZL-3008B
Control Mode:	Touch Screen	Output Mode:	Thermal Printer
Method:	Method A\B	Test Range:	Method A: 50 ~ 2000 G , Method B: 120 ~ 2000 G
Falling Dart Head Diameter:	Method A: 38mm , Method B: 50mm	Test Height:	0.3 ~ 1.5M Manually Adjustable
Sample Clamping:	125 Mm
Highlight:	ASTM D1709 Falling Dart Impact Tester , Thin Film Falling Dart Impact Tester , ISO 7765 Falling Dart Impact Tester

ISO 7765 ASTM D1709 Thin Film Falling Dart Impact Tester

This precision testing instrument evaluates the impact resistance performance of thin film materials using free-falling dart cascade methods, compliant with international standards including GB/T 9639.1-2008 Method A and ISO 7765-88 requirements.

Product Overview

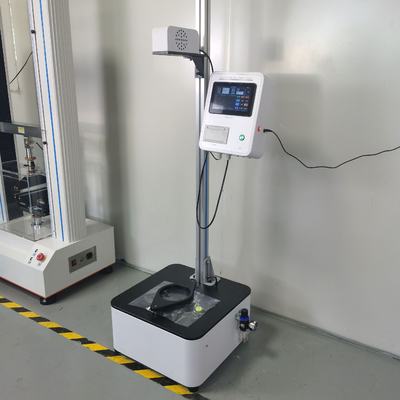

The Thin Film Falling Dart Impact Tester is engineered to determine the impact resistance of plastic films and thin wafers through controlled free-fall impact testing.

Application Scope

This instrument is suitable for testing plastic films and wafers with thickness less than 1 mm, capable of measuring breakthrough quality for materials weighing 0.05 to 2 kg.

Testing Principle

Using either Method A or Method B, the instrument determines the falling mass quantity that causes 50% sample damage under specified test conditions.

Technical Specifications

Parameter	Specification

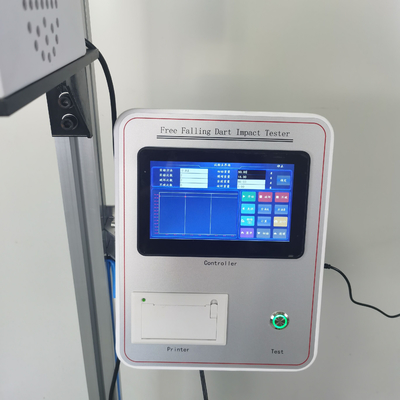

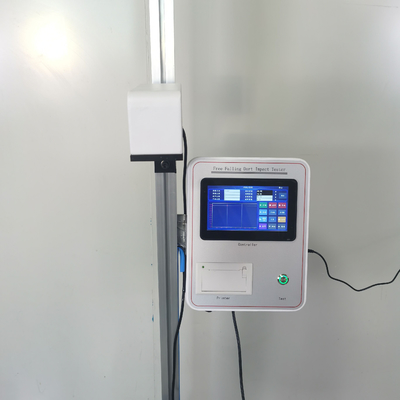

Control Mode	Touch screen
Output Mode	Thermal printer
Testing Methods	Method A & Method B
Test Range	Method A: 50-2000 g, Method B: 120-2000 g
Falling Dart Head Diameter	Method A: 38 mm, Method B: 50 mm
Test Height	0.3-1.5 m (manually adjustable)
Standard Test Conditions	23°C, 50% RH

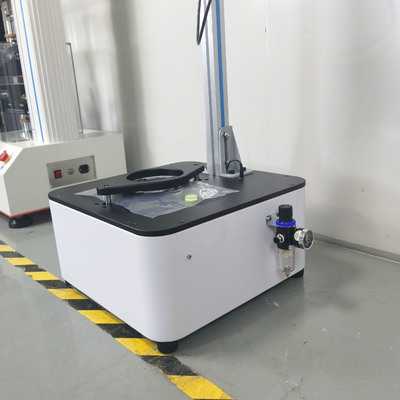

Sample Clamping	125 mm
Power Requirements	30W
Air Pressure Requirements	> 0.5 MPa
Machine Dimensions	Method A: 4505301500 mm, Method B: 4505302050 mm
Net Weight	Approximately 45 kg (both methods)

Download Product Documentation ISO 7765 ASTM D1709 Thin Film Falling Dart Impact Tester 0
