Falling Ball Impact Test Machine Plastic Films Falling Dart Impact Tester

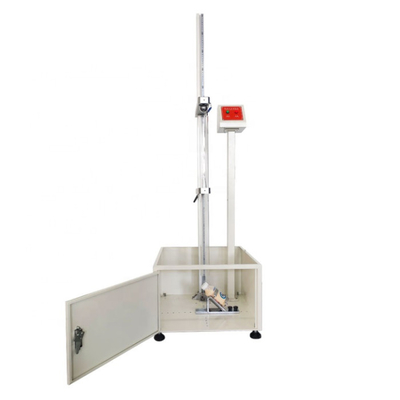

Large Image : Falling Ball Impact Test Machine Plastic Films Falling Dart Impact Tester

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-3008A

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Falling Ball Impact Test Machine Plastic Films Falling Dart Impact Tester will be Packaged in wooden case （fumigation free）
Delivery Time:	3-7 Days
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	100 set per month

Contact Now

Detailed Product Description

Name:	Falling Ball Impact Test Machine Plastic Films Falling Dart Impact Tester	Model:	ZL-3008A
Ball Weight:	112g, 198g, 225g, 357g, 533g (optional 1042g, 2280g)	Drop Height:	20 ~ 1500mm
Drop Height Scale:	Minimum Instruction 1cm	Machine Size:	W400 X D450 X H2200mm
Machine Weight:	40kg	Power Source:	1∮, 220V, 5A Or Designated
Highlight:	Falling Ball Impact Test Machine , Plastic Films Falling Dart Impact Tester

Falling Ball Impact Test Machine Plastic Films Falling Dart Impact Tester

Product Overview

This precision testing instrument evaluates the impact resistance of various materials including plastics, ceramics, acrylic, glass fibers, and coated surfaces using controlled falling ball impact methodology.

Technical Documentation

Operating Principle

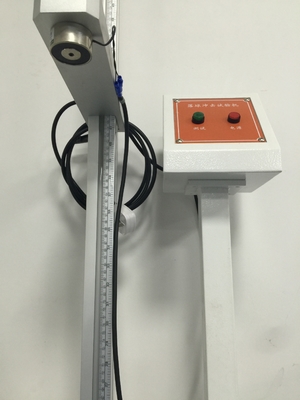

The machine utilizes DC electromagnetic control technology. The steel ball is positioned beneath the magnetic chuck, where it is automatically secured. Upon activation, the chuck instantaneously releases the ball, allowing it to free-fall and impact the specimen surface. Drop height is precisely adjustable with altitude scale measurement, while various ball weights enable comprehensive impact testing across different material specifications.

Technical Specifications

Parameter	Specification
Ball Weight Options	112g, 198g, 225g, 357g, 533g (optional 1042g, 2280g)
Drop Height Range	20 - 1500mm
Drop Height Scale	Minimum instruction: 1cm
Machine Dimensions	W400 * D450 * H2200mm
Machine Weight	40kg
Power Source	1∮, 220V, 5A or designated

Application Testing

Impact resistance testing of plastic films and sheets
Ceramic material durability assessment
Acrylic and polymer impact performance
Glass fiber reinforced material testing
Paint and coating adhesion strength evaluation

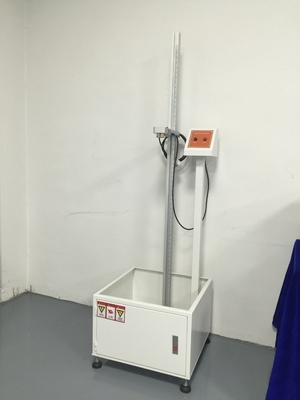

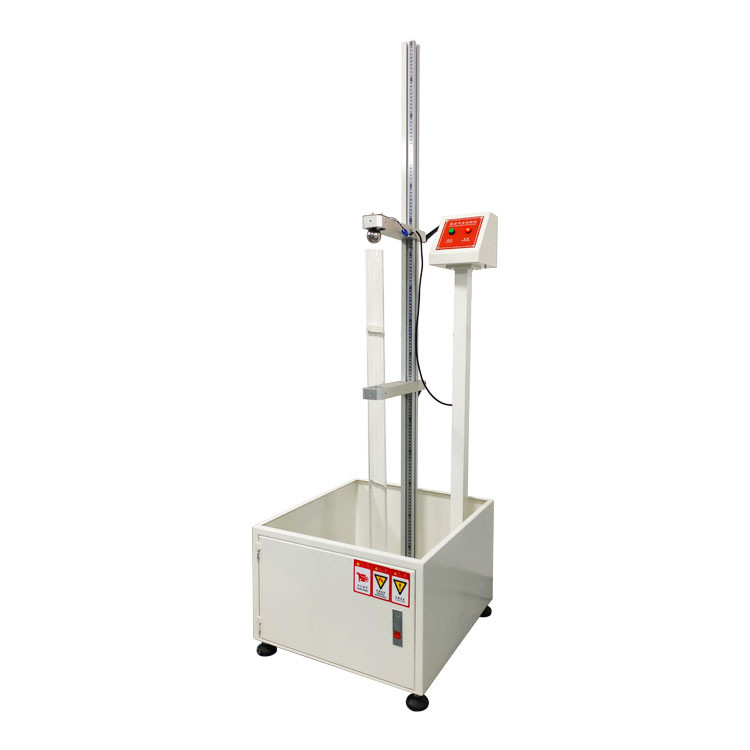

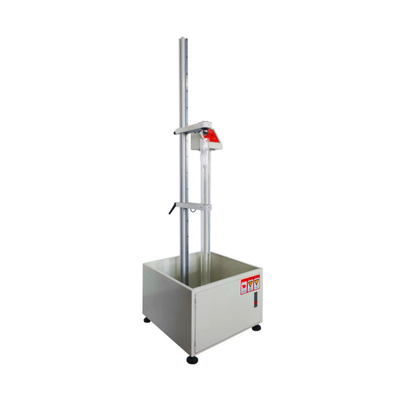

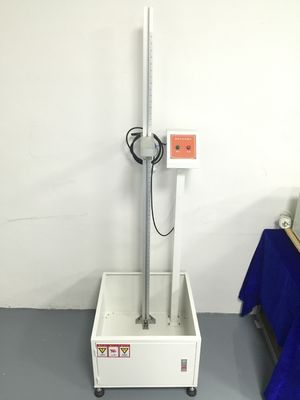

Product Image
