ASTM D430 ASTM D813 ISO 132 Rubber Fatigue Cracking Tester

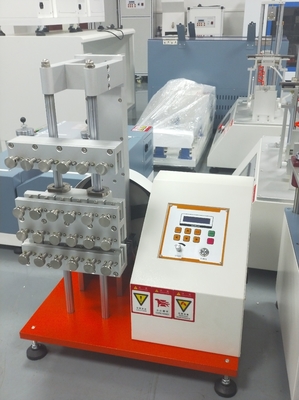

Large Image : ASTM D430 ASTM D813 ISO 132 Rubber Fatigue Cracking Tester

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO , CE
Model Number:	ZL-3006

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	Negotiable
Packaging Details:	ASTM D430 ASTM D813 ISO 132 Rubber Fatigue Cracking Tester is packaged within safety wooden case
Delivery Time:	3-7 Days
Payment Terms:	T/T,Western Union,L/C
Supply Ability:	100 SET / MONTH

Contact Now

Detailed Product Description

Product Name:	ASTM D430 ASTM D813 ISO 132 Rubber Fatigue Cracking Tester	Power:	Electronic
Key Words:	Flex Cracking Fatigue	Model:	ZL-3006
Specimen Specifications:	140-155 20-25 X 6 (LWD) Mm	Fixture Spacing:	19-75mm, 57-75mm (optional)
Test Speed:	300r/min	Volume:	550440690 Mm
Counter:	0~999,999	Warranty:	24 Month
Highlight:	ASTM D813 Rubber Fatigue Cracking Tester , ISO 132 Rubber Fatigue Cracking Tester , ASTM D430 Rubber Fatigue Cracking Tester

ASTM D430 ASTM D813 ISO 132 Rubber Fatigue Cracking Tester

The ZL-3006B Rubber Fatigue Cracking Tester evaluates the continuous bending fatigue resistance of rubber, leather, synthetic leather, shoe soles, and similar materials by observing crack development to determine durability characteristics.

Documentation

Rubber Testing Machine Technical Documentation (PDF)

Equipment Specifications

Model: ZL-3006B

Application: Continuous bending fatigue testing of rubber, leather, synthetic leather, shoe soles, and similar materials to observe cracking and compare durability

Compliance Standards

JIS K6260 Dematia method
ISO 132 Demesia type
ASTM D813 Rubber Deterioration - Test Method for Crack Growth
ASTM D430 Rubber Deterioration - Test Method for Dynamic Fatigue
BS-903 Physical tests of rubber: Determination of abrasion resistance
GB/T 13934 Vulcanized rubber or thermoplastic rubber - Determination of flex cracking and crack growth

Performance Features

All controls integrated on a single panel with touch buttons and connector connections for extremely convenient operation and maintenance.

Technical Parameters

Parameter	Specification
Model	ZL-3006B
Specimen Specifications	140-155 * 20-25 * 6 mm (LWD)
Fixture Spacing	19-75mm, 57-75mm (optional)
Test Speed	300r/min
Motor	1/4HP
Volume	550440690 mm
Counter	0-999,999, automatically stops and alarms when reaching set count
Weight	78kg
Power Supply	1∮, AC220V, 3A

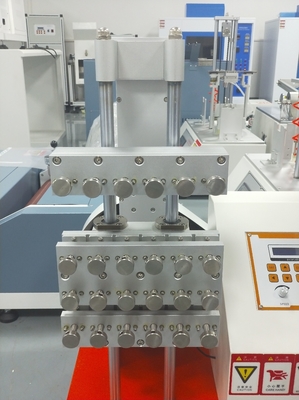

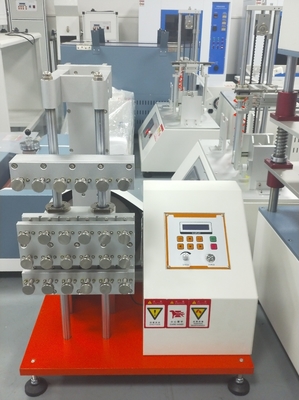

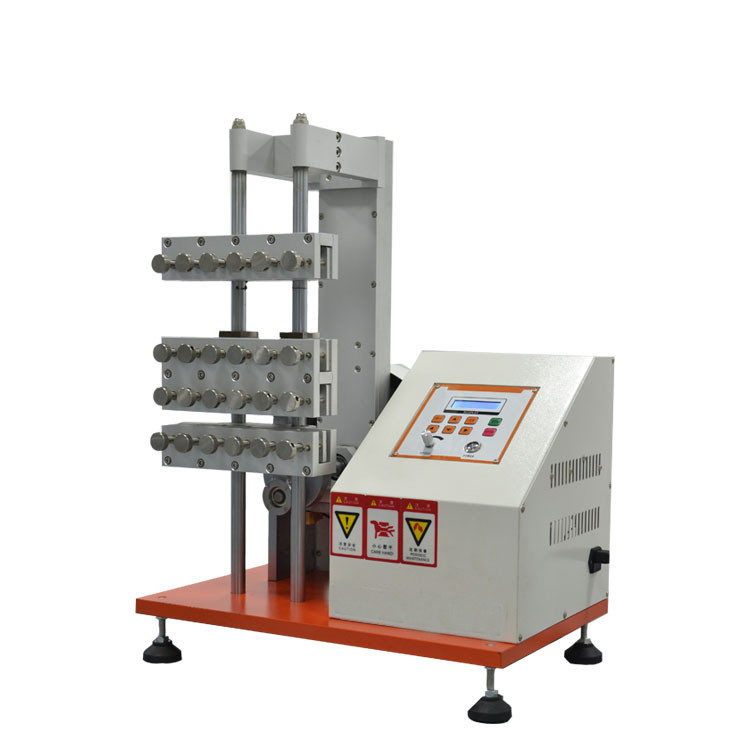

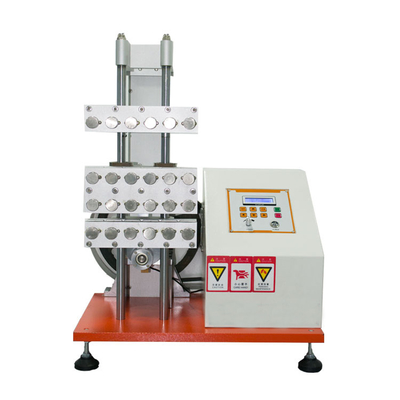

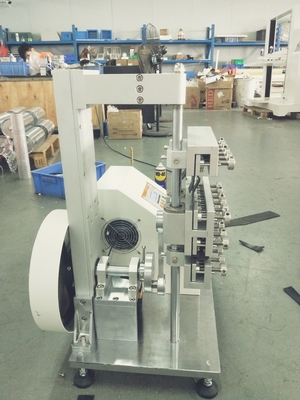

Product Images

Tag:

Contact Person: Ms. Fiona Zhong

Tel: +86 135 3248 7540

Fax: 86-0769-3365-7986
