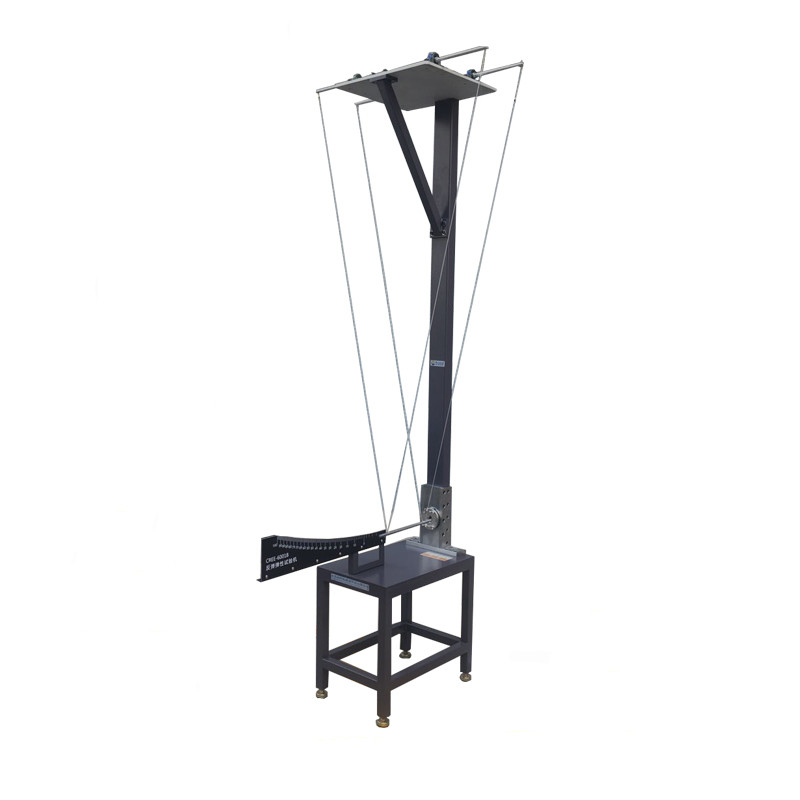

JIS-K6255 Rebound Elasticity Testing Machine For Rubber Industry

JIS-K6255 Rebound Elasticity Testing Machine For Rubber Industry
JIS-K6255 Rebound Elasticity Testing Machine For Rubber Industry JIS-K6255 Rebound Elasticity Testing Machine For Rubber Industry

Large Image :  JIS-K6255 Rebound Elasticity Testing Machine For Rubber Industry

Product Details:
Place of Origin: China
Brand Name: ZL
Certification: ISO
Model Number: ZL-3007C
Payment & Shipping Terms:
Minimum Order Quantity: set
Price: Negotiable
Packaging Details: JIS-K6255 Rebound Elasticity Testing Machine for Rubber Industry will be Packaged in wooden case （fumigation free）
Delivery Time: 5-7 days
Payment Terms: T/T,L/C,Western Union
Supply Ability: 200 set per month
Contact Now
Detailed Product Description
Name: JIS-K6255 Rebound Elasticity Testing Machine For Rubber Industry Model: ZL-3007C
Specimen: Ф28.6829，（D）12.7mm Peeler: Ф12.7mm（L）356，（R）6.35mm, Weight 350
Length Of Gauge Level: （L）625，（R）2000 Mm Height Of Gauge Vertical: 100mm（divided Into 100 Parts）
Height Of Fall: 100mm（vertical） Hanging Wire Length: 2000 Mm（fore-and-aft Gap 250 Mm，left-and-right Gap 900 Mm）
Volume: 120*92*275cm Weight: 70kg
Brand: ZL-3007C
Highlight:

JIS-K6255 Rebound Elasticity Testing Machine

,

Rubber Industry Rebound Elasticity Testing Machine

JIS-K6255 Rebound Elasticity Testing Machine for Rubber Industry
This specialized testing equipment is designed to measure the elastic rebound properties of sulfur rubber materials in accordance with JIS-K6255 standards.
Equipment Documentation
Download Technical Specifications (PDF)
Testing Methodology
The testing procedure involves moving an iron bar to position the pointer at scale 100, followed by free fall of the iron bar. The operator then reads the four-hit and rebound height measurements to determine the test material's elastic rebound rate.
Compliance Standards
JIS-K6255
Industry Application
Rubber Industry
Technical Specifications
Parameter Specification
Model ZL-3007C
Specimen Ф28.6829, (D)12.7mm
Peeler Ф12.7mm(L)356, (R)6.35mm, weight 350
Length of gauge level (L)625, (R)2000 mm
Height of gauge vertical 100 mm (divided into 100 parts)
Height of fall 100 mm (vertical)
Hanging wire length 2000 mm (fore-and-aft gap 250 mm, left-and-right gap 900 mm)
Volume 120*92*275 cm
Weight 70 kg
JIS-K6255 Rebound Elasticity Testing Machine For Rubber Industry 0
