ASTM-D2632 DIN 53512 Test Machine Rebound Resilience Elasticitity Tester

Large Image : ASTM-D2632 DIN 53512 Test Machine Rebound Resilience Elasticitity Tester

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-3007B

Payment & Shipping Terms:

Minimum Order Quantity:	set
Price:	Negotiable
Packaging Details:	Packaged in wooden case （fumigation free）
Delivery Time:	5-7 days
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	200 set per month

Contact Now

Detailed Product Description

Name:	ASTM-D2632 DIN 53512 Test Machine Rebound Resilience Elasticitity Tester	Model:	ZL-3007B
Height Of Fall:	400mm	Weight Hammer:	28g
Volume:	25×15×52.5cm	Weight:	8KG
Standard:	ASTM-D2632	Brand:	ZL
Certificate:	CE
Highlight:	Rebound Resilience Test Machine , ASTM-D2632 Test Machine , DIN 53512 Test Machine

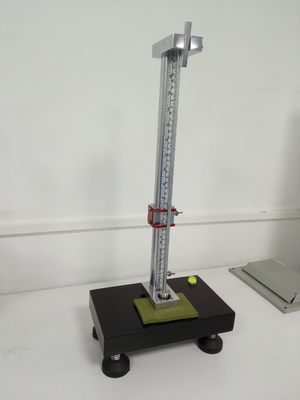

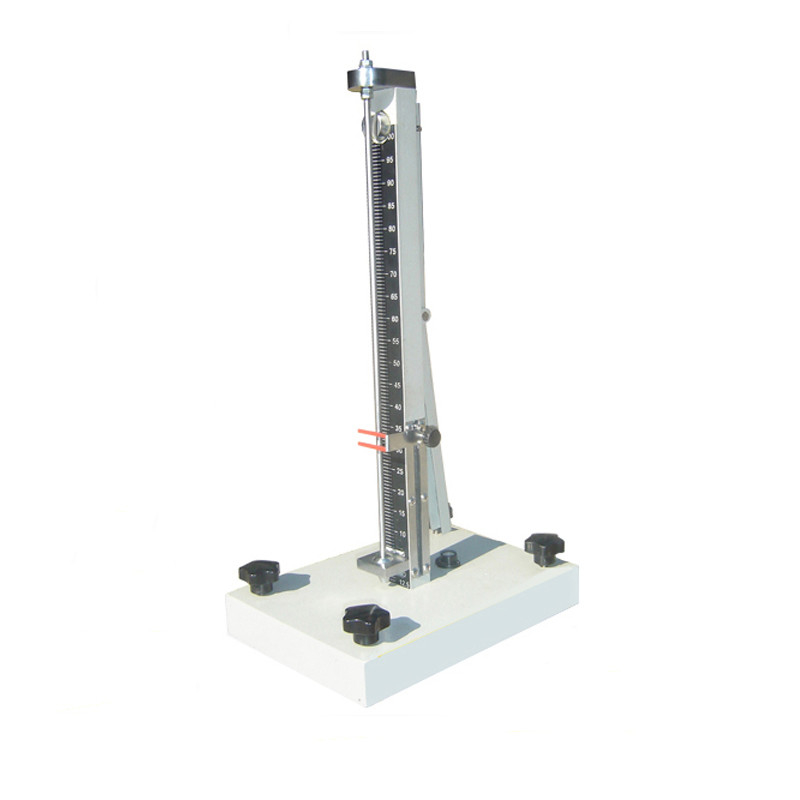

ASTM-D2632 DIN 53512 Test Machine Rebound Resilience Elasticity Tester

This precision testing instrument measures the rebound resilience and elasticity of rubber materials using the vertical free-fall hammer method, ensuring accurate material performance evaluation.

Testing Methodology

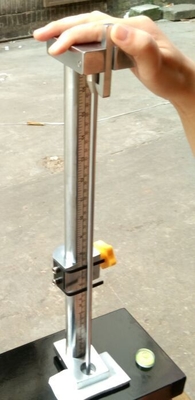

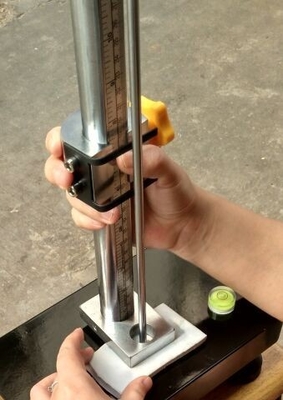

The tester employs a vertical free-fall hammer approach to assess rubber material elasticity. Proper level adjustment is essential, followed by raising the drop hammer to a specified height. Test specimens should be positioned more than 14mm from the edge, with the first three tests serving as calibration. The fourth, fifth, and sixth rebound heights are recorded and averaged for final results.

Technical Specifications

Parameter	Specification
Model	ZL-3007B
Height of Fall	400mm
Weight Hammer	28g
Volume	251552.5cm
Weight	8kg

Standards Compliance

Compliant with ASTM-D2632 testing standards for accurate and reliable rubber material evaluation.

Industry Application

Specifically designed for the rubber industry to ensure material quality and performance consistency.
