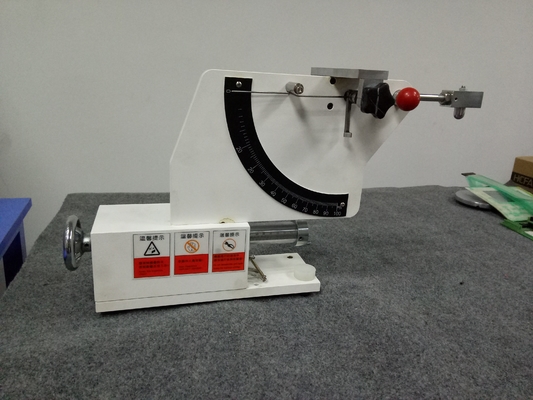

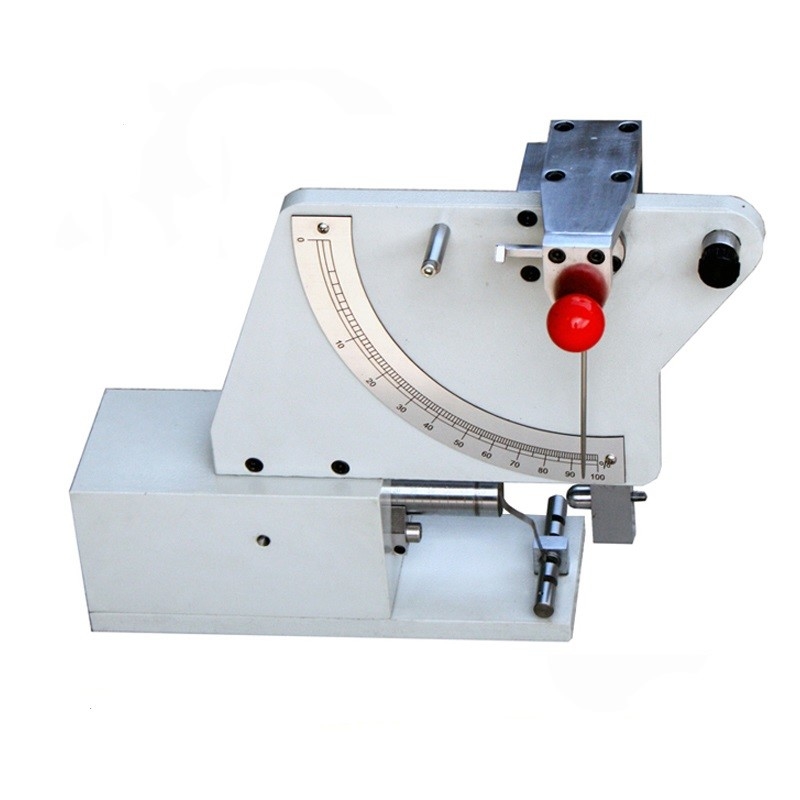

Rubber Rebound Resilience Impact Elasticity Testing Machine

Large Image : Rubber Rebound Resilience Impact Elasticity Testing Machine

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-3007A

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Rubber Rebound Resilience Impact Elasticity Testing Machine will be Packaged in wooden case
Delivery Time:	3-7 days
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	200 set per month

Contact Now

Detailed Product Description

Name:	Rubber Rebound Resilience Impact Elasticity Testing Machine	Mpdel:	ZL-3007A
Punch Diameter:	Φ12mm	Specimen Specification:	Φ29×12.5mm
Impact Mass:	0.35-0.1kg	Impact Speed:	1.4+0.6m/s
Expressed Strain Energy Density:	351+112kJ/m3	Indication Error Of Springback:	±0.5%
Dimensions (L×W×H):	320×200×360mm	Host Weight:	20kg
Highlight:	Impact Elasticity Testing Machine , Rubber Impact Elasticity Testing Machine , Rebound Resilience Impact Elasticity Testing Machine

Rubber Rebound Resilience Impact Elasticity Testing Machine

This pendulum-type impact testing machine measures the rebound resilience and elasticity of vulcanized rubber with nominal hardness between 30-85 IRHD.

Equipment Overview

The 0.5J pendulum-type impact testing machine is designed for measuring rebound resilience values of vulcanized rubber with nominal hardness ranging from 30-85 IRHD.

Key Features

Automatic display of test results with storage and direct printing capabilities
Comprehensive data display including angle energy measurements
Integrated safety protection devices with emergency stop button for secure testing operations

Compliance Standards

Compliant with GB/T 1681 "Determination of vulcanized rubber elasticity", ISO 4662 standards, and ASTM D-7121 requirements.

Industry Application

Rubber manufacturing and testing industries

Technical Specifications

Punch Diameter	Φ12mm
Specimen Specification	Φ29*12.5mm
Impact Mass	0.35-0.1kg
Impact Speed	1.4+0.6m/s
Expressed Strain Energy Density	351+112kJ/m³
Indication Error of Springback	±0.5%
Dimensions (L * W * H)	320200360mm
Host Weight	20kg
