Rubber Fatigue Cracking Tester Rubber Demattia Fatigue Flex Cracking Tester

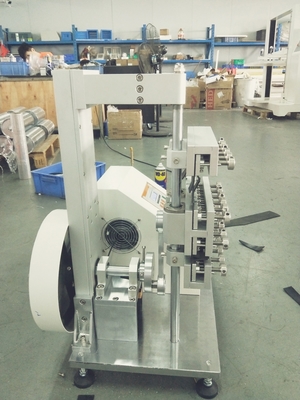

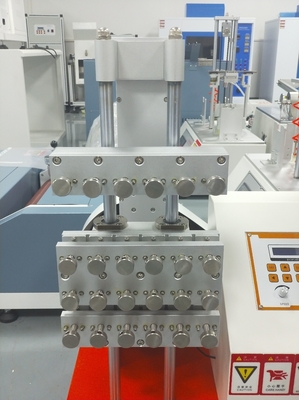

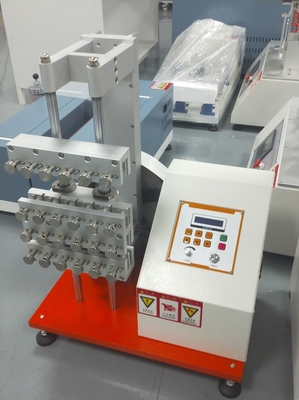

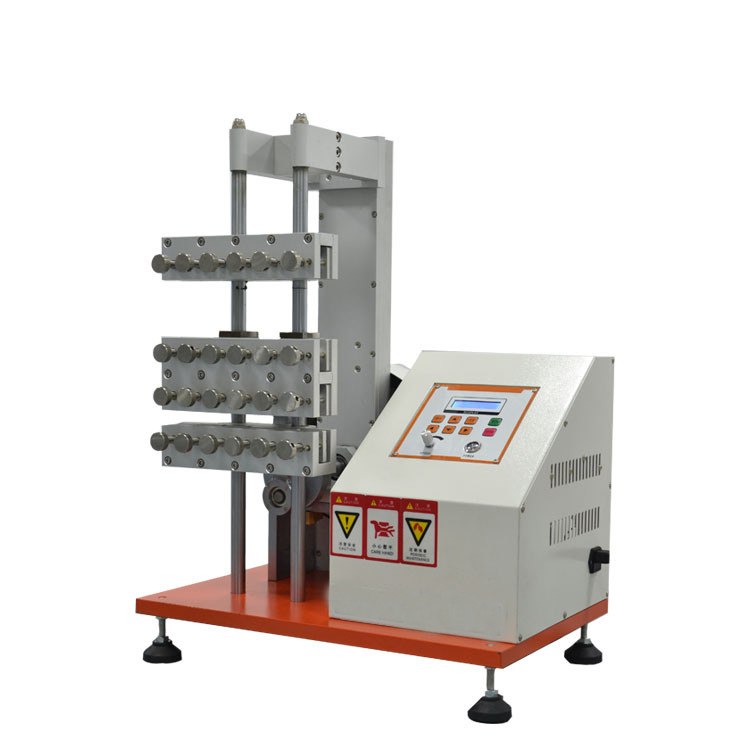

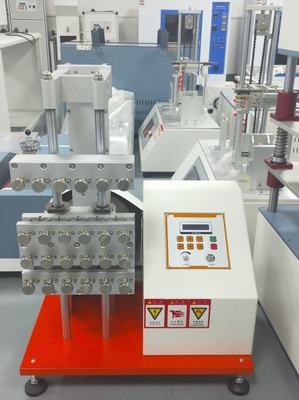

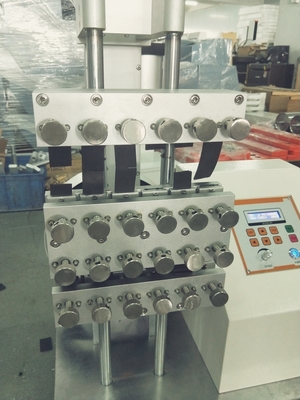

Large Image : Rubber Fatigue Cracking Tester Rubber Demattia Fatigue Flex Cracking Tester

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO , CE
Model Number:	ZL-3006

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	Negotiable
Packaging Details:	Rubber Fatigue Cracking Tester Rubber Demattia Fatigue Flex Cracking Tester is packaged within safety wooden case
Delivery Time:	3-7 Days
Payment Terms:	T/T,Western Union,L/C
Supply Ability:	100 SET / MONTH

Contact Now

Detailed Product Description

Product Name:	Rubber Fatigue Cracking Tester Rubber Demattia Fatigue Flex Cracking Tester	Power:	Electronic
Usage:	Abrasion Testing For Rubber / Shoes Etc	Under Gripper Reciprocating Frequency:	300c/min
The Upper And Lower Gripper Adjustable Maximum Distance:	200mm	Maximum Distance Adjustable Eccentric Wheel:	50mm
The Clip Device Maximum Distance Travel Under:	100mm	Voltage:	220V 50HZ
Warranty:	24 Month	Key Words:	Flex Cracking Fatigue
Highlight:	Rubber Fatigue Cracking Tester , Demattia Rubber Fatigue Cracking Tester , Flex Rubber Fatigue Cracking Tester

Rubber Fatigue Cracking Tester

The ZL-3006B Rubber Demattia Fatigue Flex Cracking Tester is designed for continuous bending fatigue testing of rubber materials, leather, synthetic leather, and shoe soles to evaluate cracking resistance and durability.

Equipment Applications

This testing machine performs continuous bending fatigue tests on various materials including rubber, leather, synthetic leather, and shoe soles. The equipment observes cracking patterns to determine and compare material durability under repeated stress conditions.

Compliance Standards

JIS K6260 Dematia method
ISO 132 Demesia type
ASTM D813 Rubber Deterioration - Test Method for Crack Growth
ASTM D430 Rubber Deterioration - Test Method for Dynamic Fatigue
BS-903 Physical tests of rubber: Determination of abrasion resistance
GB/T 13934 Vulcanized rubber or thermoplastic rubber - Determination of flex cracking and crack growth

Performance Features

All control functions are integrated on a single panel with touch button operation and connector-based connections, ensuring convenient operation and simplified maintenance procedures.

Technical Specifications

Parameter	Specification
Model	ZL-3006B
Specimen Specifications	140-155 × 20-25 × 6 mm (L×W×D)
Fixture Spacing	19-75mm, 57-75mm (optional)
Test Speed	300 r/min
Motor	1/4 HP
Volume	550 × 440 × 690 mm
Counter	0-999,999 with automatic stop and alarm at set count
Weight	78 kg
Power Supply	1∮, AC220V, 3A
