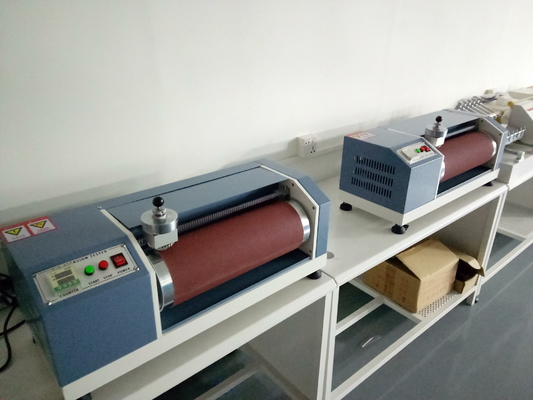

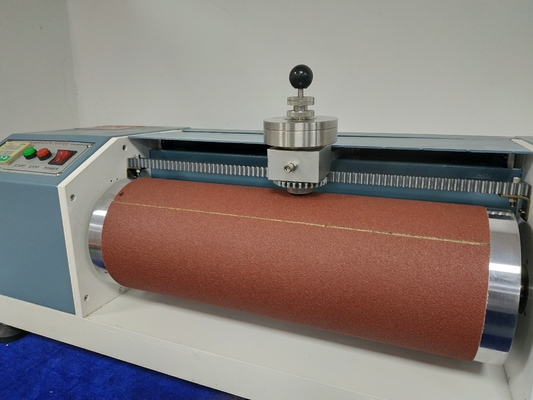

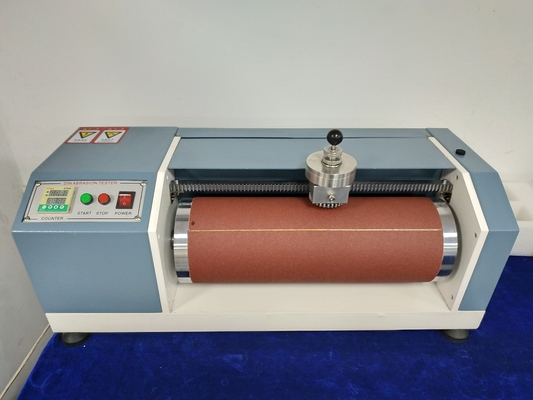

DIN Abrasive Tester Din Abrasion Tester Abrasion Resistance Test Machine

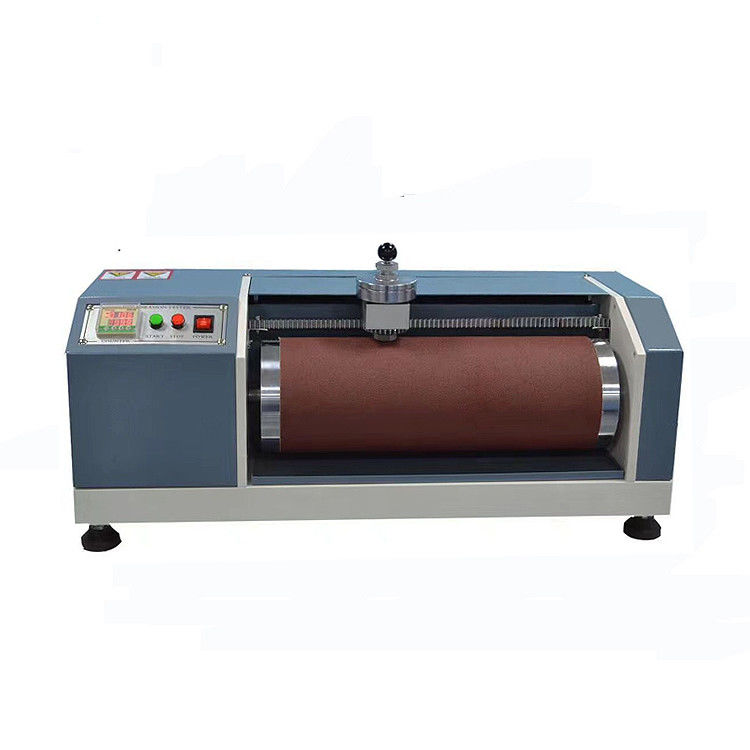

Large Image : DIN Abrasive Tester Din Abrasion Tester Abrasion Resistance Test Machine

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO , CE
Model Number:	ZL-3004

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	Negotiable
Packaging Details:	DIN Abrasive Tester Din Abrasion Tester Abrasion Resistance Test Machine will be Packaged within safety wooden case (fumigation free）
Delivery Time:	3-7 Days
Payment Terms:	T/T,Western Union,L/C
Supply Ability:	100 SET / MONTH

Contact Now

Detailed Product Description

Name:	DIN Abrasive Tester Din Abrasion Tester Abrasion Resistance Test Machine	Model:	ZL-3004
Roller Diameter:	φ150mm	Roller Length:	460 Mm
Roller Speed:	40rpm	Abrasion Stroke:	40 Mm (20 Mm)
Abrasion Speed:	0.32 M/sec	Inclination:	3°
Test Piece Diameter:	φ16 Mm
Highlight:	Din Abrasion Tester , Resistance Abrasion Tester

DIN Abrasive Tester - Abrasion Resistance Test Machine

This precision testing equipment evaluates material wear resistance through controlled abrasion testing, providing reliable data for quality control and material development.

Equipment Overview

The DIN Abrasion Tester assesses material wear resistance by rubbing test piece surfaces with specific sandpaper over defined distances. The equipment measures surface wear conditions, weight loss, volume loss, wear thickness, and compares results against standard references to evaluate material durability.

Primary Applications

This machine is designed for abrasion testing of elastic materials including:

Rubber compounds and tires
Conveyor and transmission belts
Shoe soles and footwear materials
Soft synthetic leather and genuine leather

The system delivers high efficiency, excellent reproducibility, and straightforward operation.

Compliance Standards

Meets international testing standards: DIN-53516, ISO-4649, and GB/T9867-88

Industry Applications

Suitable for footwear manufacturing, rubber industry, research laboratories, quality inspection agencies, technical supervision departments, and commodity arbitration for comprehensive leather product performance testing.

Technical Specifications

Parameter	Specification
Roller Diameter	φ150mm
Roller Length	460 mm
Roller Speed	40rpm
Abrasion Stroke	40 mm (20 mm)
Abrasion Speed	0.32 m/sec
Inclination	3°
Test Piece Diameter	φ16 mm
Thickness	6~15mm
Test Load	5N, 10N
Lateral Displacement of Fixture	4.2 mm/roller per circle
