ISO812 ASTM D2137 Rubber Low Temperature Brittleness Tester Rubber Testing Instruments

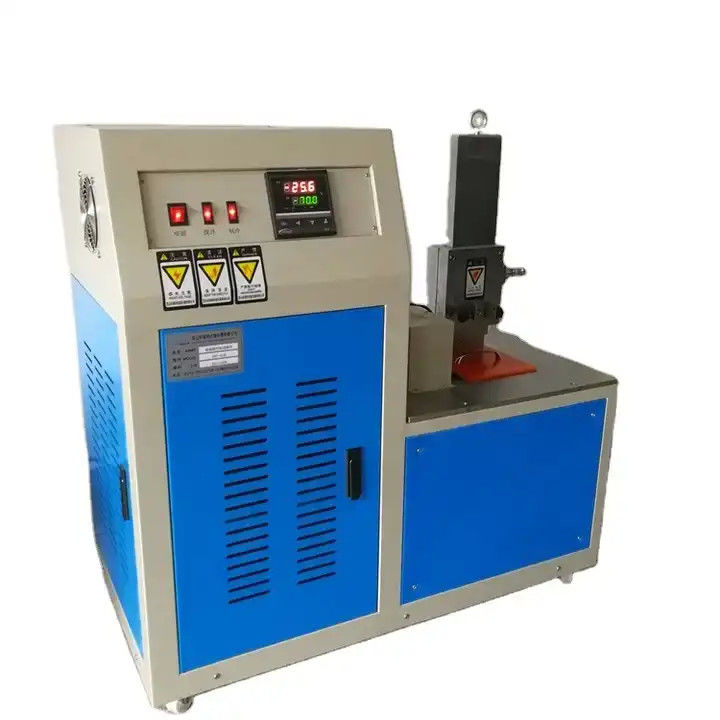

Large Image : ISO812 ASTM D2137 Rubber Low Temperature Brittleness Tester Rubber Testing Instruments

Product Details:

Place of Origin:	CHINA
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-3003

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	Negotiable
Packaging Details:	ISO812 ASTM D2137 Rubber Low Temperature Brittleness Tester Rubber Testing Instruments is packaged within wooden case.
Delivery Time:	5-8 work day
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	50 sets / month

Contact Now

Detailed Product Description

Product Name:	ISO812 ASTM D2137 Rubber Low Temperature Brittleness Tester Rubber Testing Instruments	Model:	ZL-3003
Test Temperature:	-60℃--0℃	Impact Speed:	2m/s ±0.2m/s
After Constant Temperature, The Temperature Fluctuates Within 3 Minutes Of The Test:	＜±0.5℃	Distance From The Center Of The Impactor To The Lower End Of The Holder:	11±0.5mm
Dimensions:	720mm×700mm×1380mm	Power:	1100W
Cold Well Volume:	700ml
Highlight:	ISO812 Temperature Brittleness Tester , Rubber Testing Instruments Temperature Brittleness Tester , D2137 Temperature Brittleness Tester

ISO812 ASTM D2137 Rubber Low Temperature Brittleness Tester

Equipment Overview

The ZL-3003 single-sample vulcanized rubber low-temperature brittleness tester measures the highest temperature at which rubber samples are damaged by impact under specified conditions, determining the brittle temperature. This instrument tests non-rigid plastics and other elastic materials under low temperature conditions for performance comparison and identification.

It accurately determines the brittleness temperature and low-temperature performance of various rubber materials and differently formulated vulcanized rubber, making it essential for quality inspection in scientific research and production process control.

Standards Compliance

This instrument is designed according to national standard GB-T1682-1994 for determining low temperature brittleness of vulcanized rubber, with all technical indicators meeting national standard requirements.

Application Industry

Rubber Industry

Technical Parameters

Parameter	Specification
Model	ZL-3003
Test Temperature	-60℃ to 0℃
Impact Speed	2m/s ±0.2m/s
Temperature Fluctuation After Constant Temperature	<±0.5℃
Distance from Impactor Center to Holder Lower End	11±0.5mm
Dimensions	720mm700mm1380mm
Power	1100W
Cold Well Volume	700ml
