No Rotor Rheometer Rubber Rheometer Moving Die Rheometer

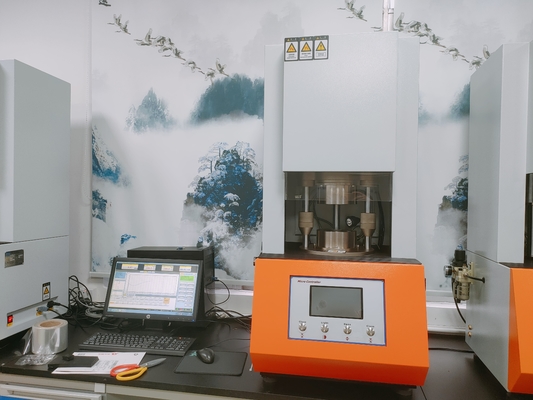

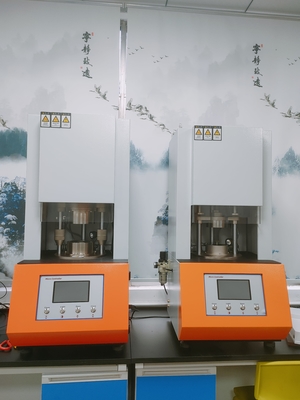

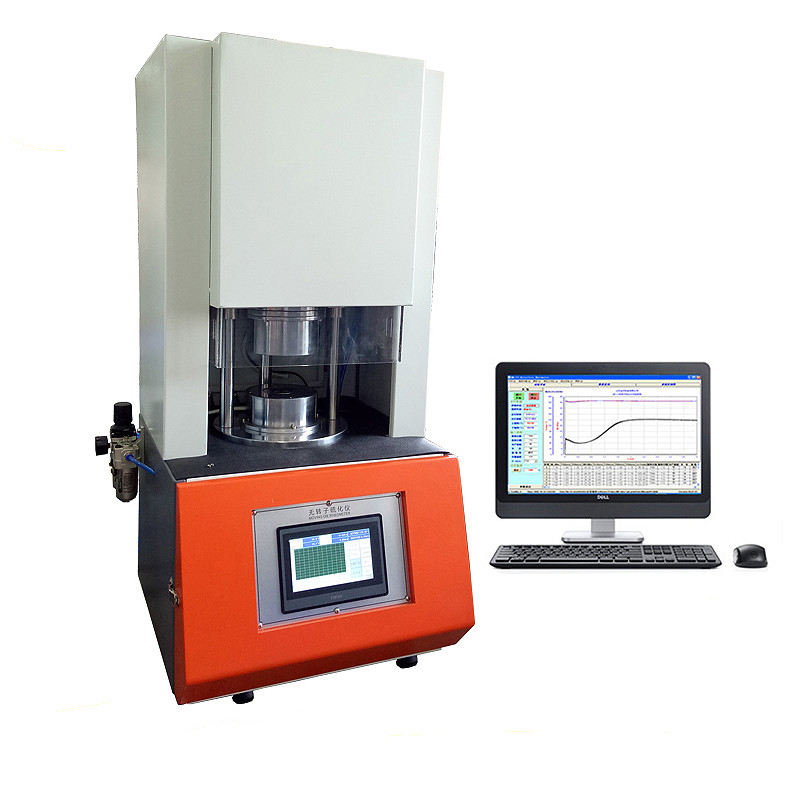

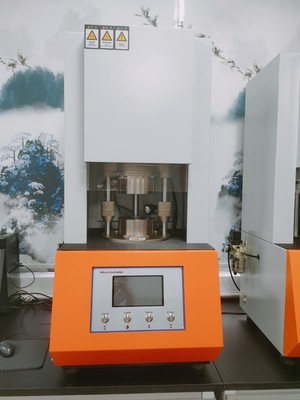

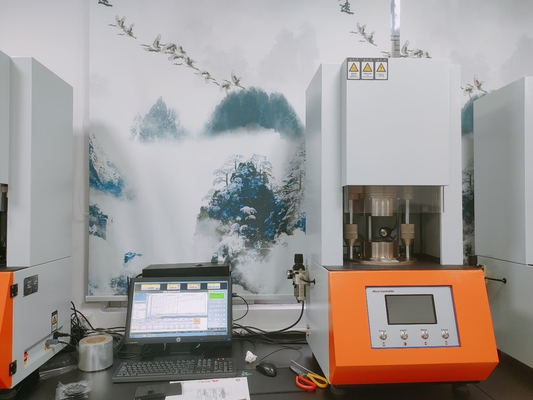

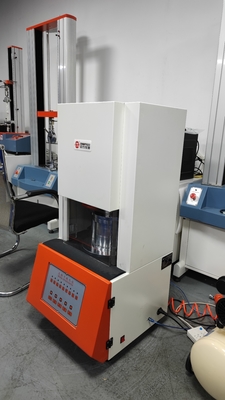

Large Image : No Rotor Rheometer Rubber Rheometer Moving Die Rheometer

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-3001

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	No Rotor Rheometer Rubber Rheometer Moving Die Rheometer is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Product Name:	No Rotor Rheometer Rubber Rheometer Moving Die Rheometer	Meet Standard:	GB/T16584, ISO6502:1991 And ASTMD5289-95
Temperature Tester:	Room Temperature To 200°C	Heating Speed:	Room Temperature—200℃,about 10 Min
Temperature Accuracy:	≤ ±0.1°C	Temperature Resolution:	0.1°C
Torque Range:	0-5N.M、0-10N.M、0-20N.M (option)	Torque Resolution::	0.001NM
Motor Rotating Speed:	100 Times / Min	Rotor Type:	Rotor Less
Highlight:	Rubber Rotor Rheometer , Moving Die Rotor Rheometer

No Rotor Rheometer - Rubber Rheometer Moving Die Rheometer

The ZL-3001A-1 No Rotor Rheometer is the most widely used instrument in the rubber processing industry for quality control, rapid inspection, and rubber basic research. It provides accurate data for optimal rubber formula combinations and precisely measures scorch time, normal vulcanization time, vulcanization index, maximum and minimum torque, and other critical parameters.

Equipment Overview

This advanced rheometer delivers precise measurements essential for rubber quality control and research applications, enabling optimal formula development and comprehensive vulcanization analysis.

Main Features

Advanced software with fast heating capability (within 3 minutes) and high temperature control accuracy
Alpha closed mold cavity structure for superior performance and repeatability
Advanced Alpha upper force sensor technology with precision reaching 0.001N.m
Imported sealing rings for optimal cavity sealing and consistent performance
World-leading closed cavity design ensuring complete repeatability and precision

Application Industries

This essential testing instrument is used for developing new products, researching rubber formulas, controlling rubber quality, and conducting rubber basic research. Widely applied across various rubber product manufacturing industries.

Compliance Standards

The No Rotor Rheometer meets the requirements of GB/T16584 "Rubber - Determination of vulcanization characteristics with a rotorless vulcanizer", ISO6502 standards, and the T10, T30, T50, T60, T90 data requirements per Italian standards.

Technical Parameters

Temperature Control Range	100.00～200℃
Heating Time	≤10 min
Temperature Fluctuation of Mold Body	≤±0.2 ℃%
Torque Range	0～10 N.m (5N.M and 20N.m option)
Swing Frequency	1.7 Hz (100 r.min‐1)
Swing Range	±1° (±0.5° option)
Cavity Structure	Monsanto Form
Report Content	ML, MH, ts1, ts2, t10, t30, t50, t70, t90, curing curve, temperature curve
Executive Standard	ASTMD5289－95 ISO6502,1991 GB/T16584－1996
Power Supply Voltage	AC 220V±10%
Dimensions	640mm╳680 mm╳1300 mm(LWH)
Net Weight	210Kg

About Zhongli Instrument Technology Co., Ltd

We are instrument experts headquartered in Dongguan, Guangdong, China, specializing in manufacturing laboratory testing equipment since 2007. With over 14 years of experience, our products have been successfully exported to more than 95 countries worldwide, with particular popularity in European and American markets.

Our equipment portfolio covers diverse industries including rubber and plastics, food, packaging, electronics, and is suitable for scientific research units, quality inspection institutions, and academic applications.

In addition to standard machines, our R&D team provides custom solutions tailored to your specific requirements.
