| Product Name: | Computerized Horizontal Tension Tester Horizontal Tensile Testing Machine | Capacity Selection: | 10, 20, 50, 100, 200KG Optional |
|---|---|---|---|
| Force Measurement Accuracy: | Better Than ±1.0% | Force Resolution: | 1/10,000 |
| Effective Force Range: | 1~100%F.S. | Displacement Resolution: | 0.001mm |
| Accuracy Of Displacement Indication: | Better Than ±1.0% | Test Speed Range: | 100～500mm/min, Can Be Adjusted Arbitrarily |
| Test Maximum Stroke: | Maximum 600mm, Without Fixture | ||
| High Light: | 200KG Capacity Tensile Testing Machine,Computerized Tensile Testing Machine |
||
This machine is suitable for industries such as rubber and plastics, paper products, color printing and packaging, adhesive tapes, bags and handbags, textiles, pharmaceuticals, daily chemicals, food, wires and electronics. It can test the physical properties of various materials, finished products, and semi-finished products. You can choose various fixtures to do tensile, compressive, holding, holding, bending, tearing, peeling, adhesion, and shear tests.
This machine is a microcomputer-type tensile (compression) force testing machine newly designed and developed by Dazhong Company. The company has completely changed the shortcomings of the traditional material testing machine, which is bulky, complicated to operate, and single in performance. The structure adopts the aluminum extruded sealing plate treated with high-grade paint, with built-in high precision, low resistance, Taiwan TBI ball screw and guide column; measurement and control system The data acquisition and calculation speed are high, the product performance is stable and reliable, the measurement accuracy is high, and the operation is simple and easy to understand.
Machine Features:
★The machine includes a thermal printer, which can automatically output the test results;
★Units can be switched at will: power: kN/N/kgf/gf/t/lbf,
Displacement: mm/cm/in;
★Automatic homing function;
★ Overload protection function can be set;
★ Various test methods such as fixed load and fixed displacement.
| Capacity Selection | 10, 20, 50, 100, 200KG optional (American Transmission) |
| Force Measurement Accuracy | Better than ±1.0% |
| Force Resolution | 1/10,000 |
| Effective Force Range | 1~100%F.S. |
| Displacement Resolution | 0.001mm |
|
Accuracy of Displacement Indication |
Better than ±1.0% |
| Test Speed Range | 100～500mm/min, can be adjusted arbitrarily |
| Test Maximum Stroke | Maximum 600mm, without fixture |
| Effective Test Space | Front and rear 120mm, left and right ∝ |
| Power Unit Switch | kgf, gf, N, kN, Ibf |
| Stress Unit Toggle | MPa, kPa, kgf/cm2, Ibf/in2 |
| Morph Unit Toggle | mm, cm, in |
| Shutdown Mode | Upper and lower limit safety setting, emergency stop button, test piece damage detection |
| Machine Size | 50×45×130cm(W×D×H) |
| Machine Weight | About 75kg |
| Power | Taiwan TECO Servo Motor |
| Power Supply | AC220V, 50/60Hz, 10A or specified |

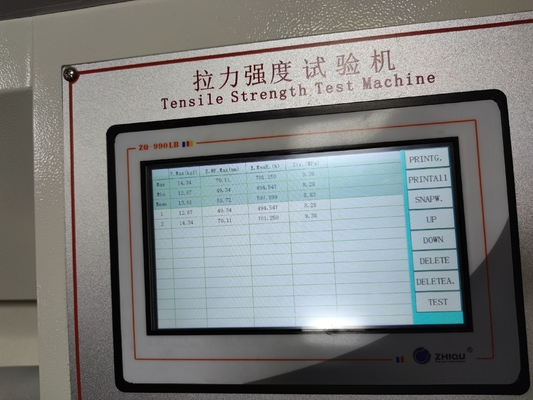

Test Screen:
