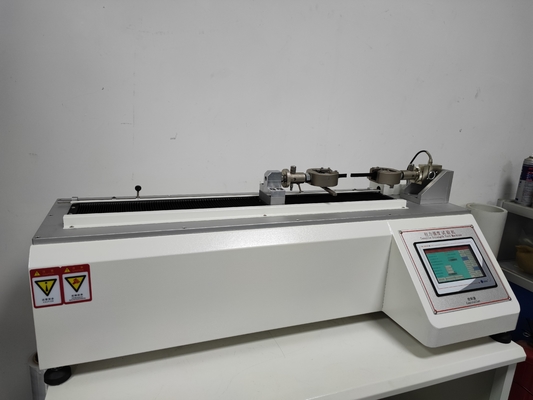

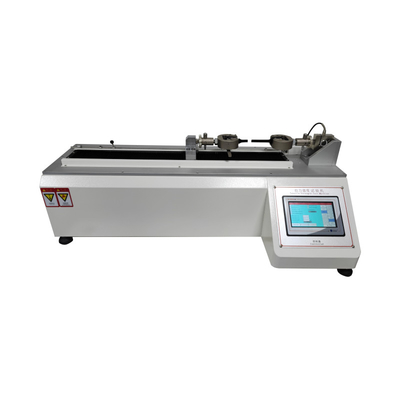

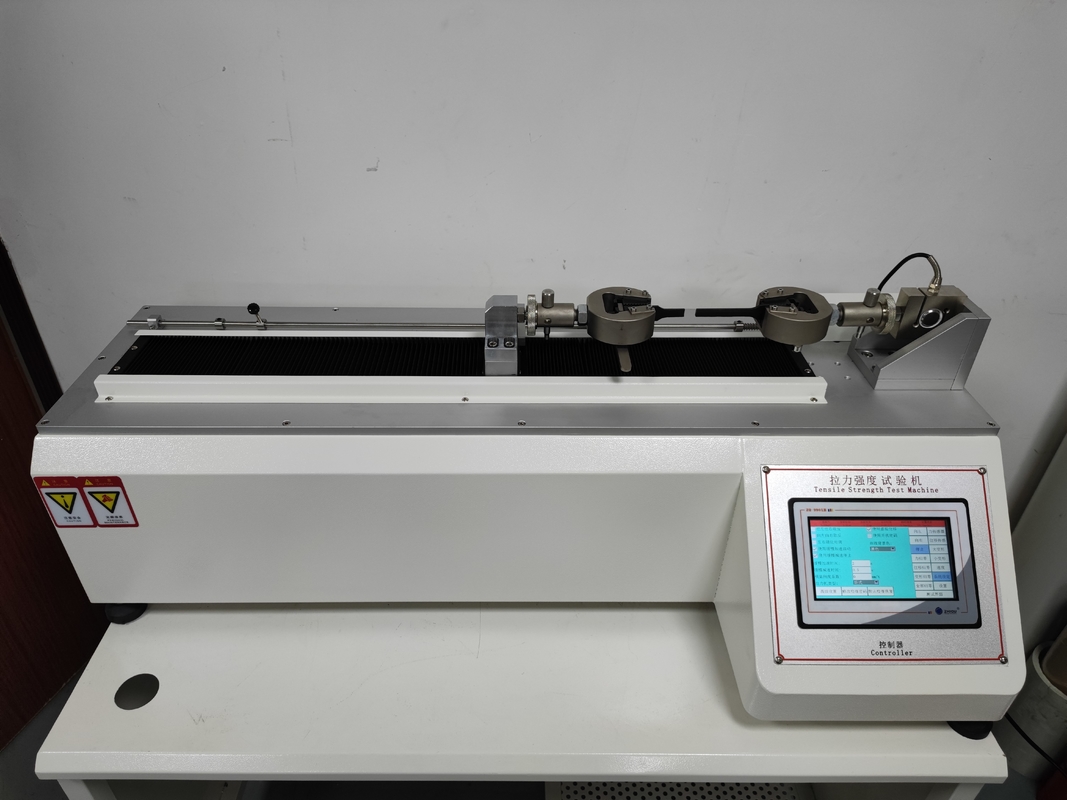

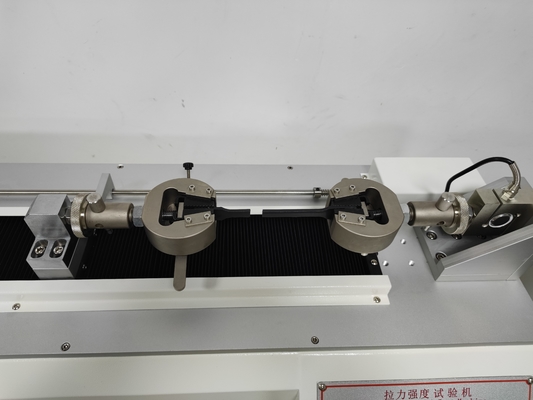

Touch Screen Horizontal Tension Tester Tensile Test Machine

Large Image : Touch Screen Horizontal Tension Tester Tensile Test Machine

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-8005A

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Touch Screen Horizontal Tension Tester Tensile Test Machine is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Product Name:	Touch Screen Horizontal Tension Tester Tensile Test Machine	Capacity Option:	100KG
Measurement Accuracy:	±1%	Resolution:	1/200000
Test Speed:	0～300 Mm/min	Effective Stroke:	600mm
Test Space:	120 Mm	Units Of Force:	Kgf, Gf, N, KN, Lbf
Stress Unit:	MPa, KPa, Kgf/cm2, Lbf/in2
Highlight:	Touch Screen Horizontal Tension Tester , 600mm Effective Stroke Horizontal Tension Tester , Touch Screen Tensile Testing Machine

Touch Screen Horizontal Tension Tester Tensile Test Machine

The Microcomputer-Controlled Horizontal Tensile Testing Machine combines hydraulic force characteristics with computer-automated data collection, printing results, and user-friendly operation. This equipment delivers high testing accuracy and stable force application, making it suitable for stretching, tensile shearing, and tearing tests on both metal and non-metal materials.

Key Features

Computer-automated data collection and result printing
High testing accuracy with stable force application
Compatible with various test methods and standards including ISO and GB
Widely used in wire and cable industry and quality inspection institutions
User-friendly operation with convenient test procedures

Technical Specifications

Parameter	Specification
Capacity Option	100KG
Measurement Accuracy	±1%
Resolution	1/200000
Test Speed	0～300 mm/min
Effective Stroke	600mm
Test Space	120 mm
Units of Force	kgf, gf, N, kN, lbf
Stress Unit	MPa, kPa, kgf/cm², lbf/in²
Stop Mode	Left and right limit safety setting, test piece breakpoint sensing
Result Output	Miniature printer
Power	Adjustable speed motor
Optional	Tension clamp (conventional)
Machine Weight	About 40 KG
Power Supply	1PH, AC220V, 50/60Hz

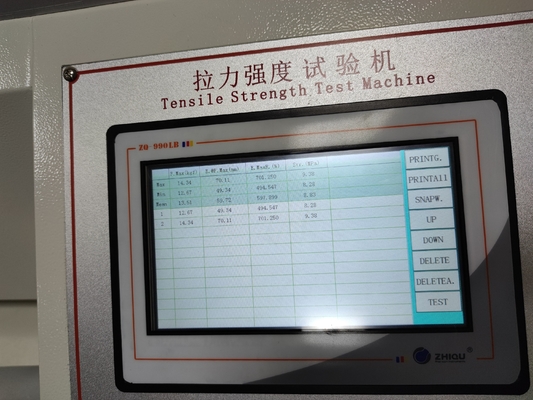

Test Screen Display
