Product Name: | Economical Material Universal Testing Machine Manufacturer With Computer-type | Model: | ZL-8003C |
---|---|---|---|
Maximum Load: | 100N, 200N, 500N, 1KN, 2KN, 5KN, Optional Within | Test Speed Range: | 50~500mm/min 0.005~500mm/min |
Overload Protection: | 10% More Than The Maximum Load, The Machine Automatically Protects | Host Size: | 550×420×1800mm(L*W*H) |
Power Supply: | 220V, 50HZ | Host Weight: | 500 KG(approximately) |
Highlight: | Economical Material Universal Testing Machine,utm Machine With Computer-type,Universal Testing Machine 100N |

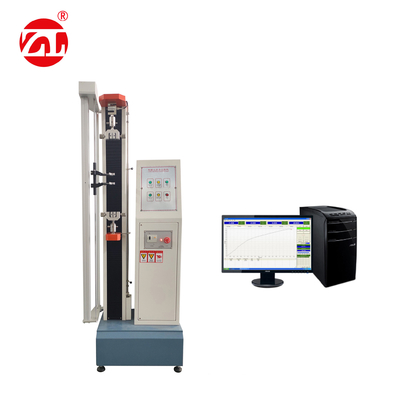

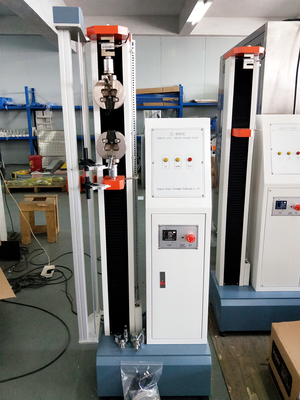

Economical Material Universal Testing Machine Manufacturer With Computer-type
The Main Function:
This machine is suitable for rubber, tire, hose, tape, shoe sole, plastic, film, acrylic, FRP, ABS, EVA, PU, aluminum-plastic tube, composite material, waterproof material, fiber, textile, wire and cable, paper, gold Testing and analysis of mechanical properties such as tension, compression, tearing, peeling (90 degrees and 180 degrees are acceptable) for flexible foils, tapes, wires, springs, wood, pharmaceutical packaging materials, tapes, etc.
Main Feature:
1. It is driven by Japanese Panasonic servo motor, and the transmission mechanism drives the beam to move up and down to realize the test loading process.
2. The whole control system has high cost performance and high reliability.
3. The whole test process is controlled by a microcomputer, and the load value, displacement value, deformation value, test speed and test curve are dynamically displayed in real time.
4. Microcomputer is used for data processing and analysis, and the test results can be automatically saved. After the test is over, the test curve can be recalled, and the test process can be reproduced through curve traversal, or curve comparison and curve amplification can be performed.
5. The test software under the Windows platform in English has strong data and graphics processing functions, and can print out complete test reports and test curves in real time.
6. It has complete safety protection functions such as limit protection, overload protection, and emergency stop.
Standard:
ISO7500/1, ASTM D638, ASTM D412, JIS B7721, JIS B7733, EN 1002-3, BS 1610,ISO13997:1999,ISO139352,ASTM D2261
Technical Parameters:
Model | ZL-8003C | |
Maximum Load | 100N, 200N, 500N, 1KN, 2KN, 5KN, optional within | |
Accuracy Class | Level 0.5 | |
Effective Force Range | 0.4%~100% (Level 0.5) | |
Force Measurement Accuracy | Within ±1% of indicated value/Within ±0.5% of indicated value | |
Testing Machine Resolution | The maximum load is 1/200000, there is no division between inside and outside, and the resolution remains unchanged throughout the process | |
Load Cell |
Basic Configuration: One tension and pressure sensor (maximum load) Extended Configuration: Multiple sensors can be added |
|
Deformation Measurement System (Optional According To Requirements) |
Extended configuration: large deformation: minimum gauge distance 10mm, deformation range: 800mm Extended configuration: small deformation: gauge length 25mm, 50mm, 100mm Deformation range: 5mm, 10mm, 25mm |
|
Effective Test Width | 400mm (can be widened according to customer requirements) | |
Effective Stretching Space | 400, 500, 600mm, 800mm (can be increased according to customer requirements) | |
Test Speed Range | 50~500mm/min 0.005~500mm/min | |
Displacement Measurement Accuracy | Within ±0.5% of indicated value/Within ±0.2% of indicated value | |
Deformation Measurement System(Optional According to Requirements) |
Extended Configuration: large deformation: minimum gauge distance 10mm, deformation range: 800mm Extended Configuration: small deformation: gauge length 25mm, 50mm, 100mm; deformation range: 5mm, 10mm, 25mm |
|
Deformation Measurement Accuracy |
Within ±0.5% of the indicated value (large or small deformation can be selected according to customer requirements) | |
Test Bench Safety Device | Electronic limit protection | |
Test Bench Lifting Device | Fast/slow two speed automatic control, jogging possible | |
Bench Return Function | Manual or automatic two options, automatic or manual return to the initial position of the test at the highest speed after the test | |
Overload Protection | 10% more than the maximum load, the machine automatically protects | |
Fixture Configuration | A set of tensile fixtures | |
Host Size | 550×420×1800mm(L*W*H) | |
Power System | Panasonic servo motor + drive + Taiwan high precision ball screw | |
Power Supply | 220V, 50HZ | |
Power | 0.75KW (according to different force value requirements, different power motors are standard) | |
Host Weight | 500 KG(approximately) |
