60T 100T Servo Hydraulic Compression Tester | for Manhole Cover Strength Test | Computer Control System

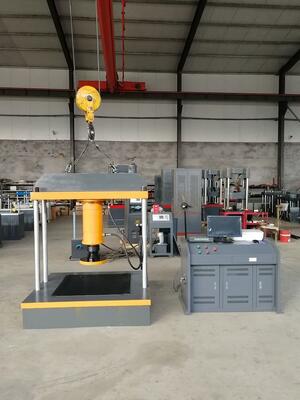

Large Image : 60T 100T Servo Hydraulic Compression Tester | for Manhole Cover Strength Test | Computer Control System

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	ZL

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Detailed Product Description

Test Force:	600KN/1000KN	Effective Test Space:	1200mmx1200mm/1400mm×1400mm
Table Height:	300mm	Force Value Accuracy:	≤ ± 1%
Loading Speed Range:	0.1 ~ 25KN/s	Piston Stroke:	300mm
Deformation Measurement Range:	0-20mm	Deformation Resolution:	0.01mm
Load Indication Accuracy:	0.1KN	Loading Method:	Electro-hydraulic
Control Mode:	Manual/electro-hydraulic Servo	Loading Media:	46#/68# Anti-wear Hydraulic Oil
Motor Power:	0.75KW	Voltage:	380V/220V
Host Weight:	3000Kg
Highlight:	60T servo hydraulic compression tester , manhole cover strength testing machine , computer control universal testing machine

60T 100T Servo Hydraulic Compression Tester for Manhole Cover Strength Test

Product Overview

This computer-controlled servo hydraulic compression test machine is designed for evaluating the bearing capacity and deformation of manhole covers according to industry standards including CJ/T3012-1993, CJ/T121-2000, JC889-2001, and GB/T 23857-2009.

Technical Specifications

Parameter	Value
Test Force	600KN/1000KN
Effective Test Space	1200mm×1200mm/1400mm×1400mm (customizable)
Table Height	300mm
Force Value Accuracy	≤ ±1% (better than level 1)
Loading Speed Range	0.1~25KN/s (manual stepless speed regulation)
Piston Stroke	300mm
Deformation Measurement Range	0-20mm
Deformation Resolution	0.01mm
Load Indication Accuracy	0.1KN
Loading Method	Electro-hydraulic
Control Mode	Manual/Electro-hydraulic servo speed
Loading Media	46#/68# anti-wear hydraulic oil
Motor Power	0.75KW
Voltage	380V/220V
Host Dimensions	1200mm×1400mm×1500mm (L×W×H)
Host Weight	3000Kg

Key Features

High rigidity structure ensures test safety
Convenient 300mm table height for easy specimen handling
Ball joint connection between rigid block and piston ensures accurate bearing capacity measurement
Special sealing materials provide high sealing, low friction, and long service life
Professional test oil pump motor unit operates quietly with extended lifespan
Ultra-fine oil filtration maintains clean hydraulic system for reliable long-term operation
Digital display shows real-time force values and peak measurements

Standard Configuration

1000KN manhole pressure test machine host (1 set)
Control oil source (1 unit)
Complete documentation including user manual, certificate, warranty card, and packing list

Click here for factory prices and shipping information

Frequently Asked Questions

How to choose the most suitable mechanical equipment?

Our professional team will provide recommendations based on your specific testing requirements and specifications.

What's the delivery time?

Standard delivery time is 15-20 working days after deposit receipt. Rush orders can be accommodated with special arrangements.

Do you accept customization?

Yes, we offer both standard and customized machines tailored to your specific requirements.

Can we visit your factory?

We welcome factory visits and can assist with hotel arrangements and airport transfers.

What is your warranty policy?

Standard warranty is two years, including technical support and parts replacement. On-site engineer support is available when necessary.
