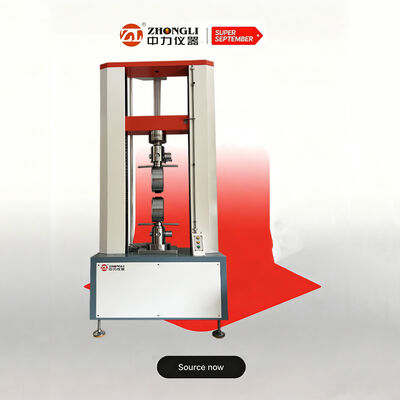

50kN Universal Tensile Testing Machine | ISO 6892 Fiber Reinforced Composites Test | Digital Control System

Large Image : 50kN Universal Tensile Testing Machine | ISO 6892 Fiber Reinforced Composites Test | Digital Control System

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	ZL
Certification:	CE
Model Number:	ZL-8006A

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Detailed Product Description

Maximum Load:	50KN,100KN,200KN,300KN	Accurate Grade:	0.5 Grade
Effective Measuring Range:	0.4%~100%	Measuring Accuracy:	Display The Value±0.5%
Tester Resolution:	Max Load 1/200000	Effective Testing Width:	400mm
Effective Tensile Stroke:	800mm	Testing Speed Range:	0.01~100mm/min
Displacement Measurement Accuracy:	±0.5%	Deformation Measurement Range:	Min Span: 10mm, Max Range: 800mm
Deformation Measurement Accuracy:	±0.5%	Power Supply:	220V, 50HZ
Power Consumption:	0.75KW	Machine Dimensions:	10756210cm
Weight:	320kg
Highlight:	50kN universal tensile testing machine , ISO 6892 fiber composites test machine , digital control tensile testing machine

50kN Universal Tensile Testing Machine | ISO 6892 Fiber Reinforced Composites Test | Digital Control System

Main Functions

This test machine is designed for testing flexible materials with large deformation, including rubber, plastics, leather, and similar materials. It performs tensile, tear, adhesive strength, and peel tests, equipped with a large deformation extensometer for precise measurement of specimen deformation.

Applicable Industries

Widely used in quality control across multiple industries including:

Rubber & Plastics
Metallurgical iron and steel
Manufacturing machinery
Electronic equipment
Automobile production
Textile fiber
Wire and cable
Packaging materials and foodstuffs
Instrumentation
Medical equipment
Civil nuclear energy
Civil aviation
Colleges and universities
Research laboratories
Inspection arbitration and technical supervision departments
Building materials and ceramics
Petroleum & Chemical

Corresponding Standard

GB/T16491-1996 electronic universal testing machine

Technical Parameters

Model	ZL-8006
Maximum load	50KN,100KN,200KN,300KN
Accurate grade	0.5 grade
Effective measuring range	0.4%~100%(0.5 grade)
Measuring accuracy	Display the value±0.5%
Tester resolution	Max load 1/200000,constant the resolution
Load sensor	Basic configuration:sensor(max load): one Extended configuration:can add more sensors
Effective testing width	400mm(can be widened according to customer's requirement)
Effective tensile stroke	800mm (can be increased according to customer's requirement)
Range of testing speed	0.01~100mm/min
Accuracy of displacement measurement	Tolerance: ±0.5%
Deformation of measured system	Min span: 10mm, Max range of deformation: 800mm Extended deformation: Min span: 25mm,50mm,100mm, range of deformation: 5mm,10mm,25mm
Accuracy of measured deformation	Tolerance: ±0.5% (according to requirement of customer to choose the larger or small deformation)
Safety	Electronic-limit protection
Testing platform moving device	Fast/slow two speeds to control, can jog
Back to function of testing platform	Manual or automatic operation
Overload protection	Overload 10%, automatic protection
Fixture	A set of tensile fixture
Machine size	10756210cm(lengthwidthheight)
Motor	Panasonic AC servo motor and drive
Sensor	USA Transcell high accuracy loadcell
Power	220V, 50HZ, 0.75KW (depending on different demand of force)
Weight	Approximately 320 KG
Unit	KG, N, LB, TON can be exchanged

Equipment Summary

Electronic Universal Tensile Test Equipment combines electronic technology with mechanical transmission, featuring accurate load speed, force measurement range, and high accuracy for load and displacement measurement. Capable of constant-velocity loading and displacement testing, this machine is simple to operate and ideal for quality control in production lines, suitable for testing non-metallic and metallic materials with loads less than 2 tons.

Testable Items in Computer Servo Testing Machine

Tensile stress
Tensile strength
Rate of elongation at break
Fixed stress
Rate of stress at break
Stress strength
Tear strength
The value of force at any point
Rate of elongation at any point
Pull-out strength
Force of adhesion and the peak of force

Main Features

Features include photoelectric encoder for displacement measurement, embedded single-chip microcomputer controller with multifunction software for measurement, control, calculation and storage. Automatically calculates stress, elongation rate (with extensometers), tensile strength, elastic modulus, and statistical results. Computer displays dynamic curves during testing with post-test data analysis and report generation capabilities.

Software Features

Standard modular function covering GB, ASTM, DIN, JIS, BS testing standards
Product information database with formula-based automatic correction
Dual-report editor with EXCEL format support
Unit conversion for length and force measurements
Auto-optimization of graphic scale with multiple graph comparison options
EXCEL format output capability
Automatic or manual test result preservation with comprehensive calculation features
Historical data output capability

Fixture Accessories Customization
