Single Column UTM Tensile Testing Machine 500KG With Touch Screen

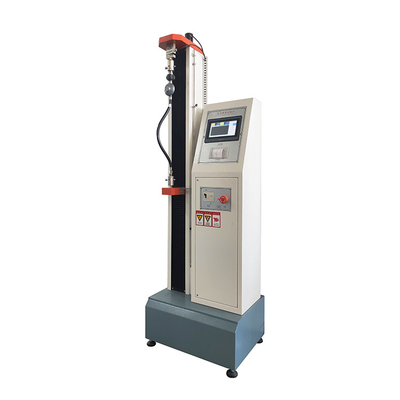

Large Image : Single Column UTM Tensile Testing Machine 500KG With Touch Screen

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-8003A

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Single Column UTM Tensile Testing Machine Price With Touch Screen is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	50 Sets

Contact Now

Detailed Product Description

Product Name:	Single Column UTM Tensile Testing Machine Price With Touch Screen	Maximum Allowable Load:	500KG
Load Cell:	Optional Within 10, 50, 100, 200, 500 KG. (made In The United States)	Load Measurement Accuracy:	Load Cell + ZL-2000 Display ±0.5% (5%-100% Of Full Scale)
Unit Switching:	Kg, Lb, N	Resolution:	1/50000
Displacement Resolution:	0.001mm	Power System:	AC Motor, Reducer (Made In Italy)
Highlight:	Single Column UTM Tensile Testing Machine , UTM Machine With Touch Screen , UTM Machine 500KG

ZL-8003A Microcomputer-Type Economical Material Testing Machine

The ZL-8003A is a modern material testing machine that combines electronic technology with mechanical transmission. Designed for precision testing with wide loading speed and force measurement ranges, this equipment offers high accuracy and sensitivity for load and displacement measurement and control. Its compact structure allows for convenient operation directly on workshop floors, making it ideal for quality control applications in production environments.

Primary Applications

Tensile testing
Compression testing
Bending tests
Shear testing
Peel testing
Tear testing
Two-point extension (with extensometer)

Technical Specifications

Maximum Allowable Load	500 KG
Load Cell Options	10, 50, 100, 200, 500 KG (US-made)
Load Measurement Accuracy	Load cell + ZL-2000 display ±0.5% (5%-100% of full scale)
Unit Switching	Kg, Lb, N
Resolution	1/50000
Displacement Resolution	0.001mm
Power System	AC motor, reducer (Italian-made)
Control System	Test speed 50~300 mm/min stepless speed regulation with 5 constant speed gears (50, 100, 200, 250, 300) or customer specified
Data Sampling Frequency	200 times/sec
Connecting Plate Stroke	1200 mm
Safety Features	Overload protection, emergency stop, upper/lower travel limits, leakage protection
Display System	Dark blue LCD with English display, touch screen interface
Power Supply	AC 220V single phase
Power Consumption	400W
Machine Dimensions	6004501800mm (LWH)
Weight	70kg

Advanced Features

Built-in printing capability
Stores results for 10 test reference points
Automatic calculation of averages and maximum values
Break force value detection
24-bit AD acquisition with 1/20000 resolution
Adjustable decimal places (0-4)
Password protection for operational security
Configurable break point ratio (0-99%)
Programmable overload protection
