| Product Name: | Computer Servo High-Temperature Tensile Test Using Universal Uesting Machine | Test Accuracy: | 0.5 Level, The Accuracy Of The Test Force Indication Is Better Than ±0.5% |
|---|---|---|---|
| High Resolution: | 1/500000 | Unit Selection: | N, KN |
| Test Speed Range: | 0.001~500 Mm/min Stepless Speed Regulation | Speed Control Accuracy: | ±0.5% |
| Displacement Decomposition Degree: | 0.001mm | Power Supply: | 1ø, 220 VAC, 50/60 Hz |
| High Light: | Computer Servo Universal Tensile Testing Machine,High-Temperature Universal Tensile Testing Machine,60Hz Universal Testing Machine |
||
Computer Servo High-Temperature Tensile Test Using Universal Uesting Machine

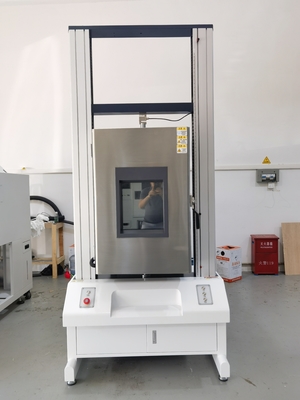

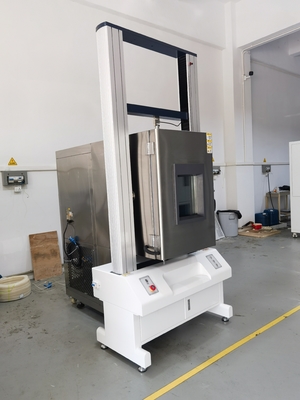

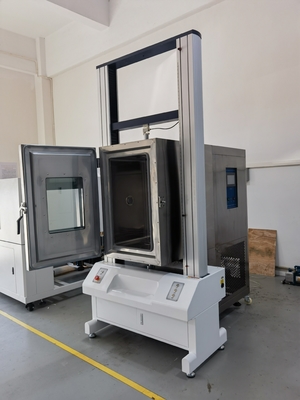

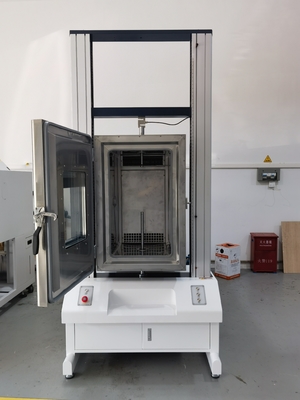

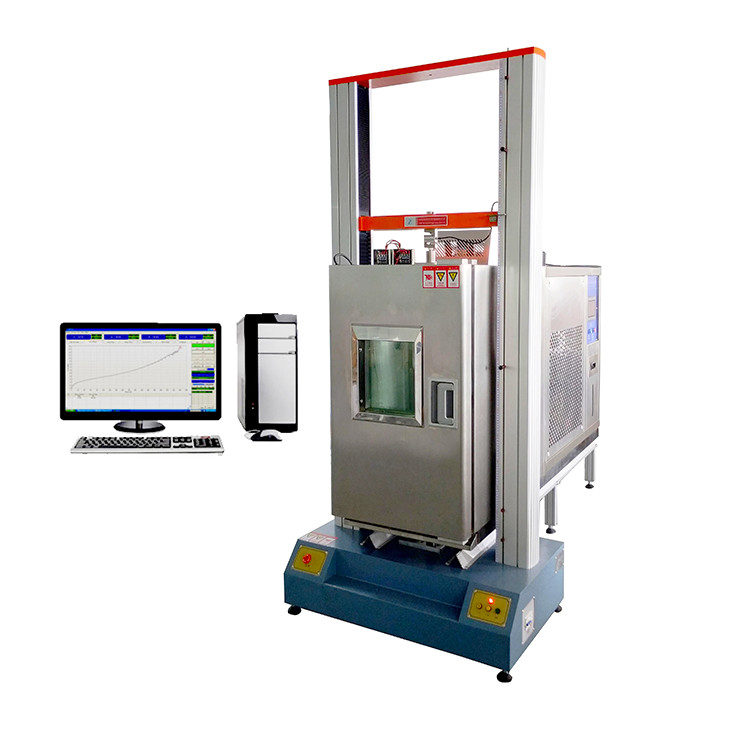

ZL-8001C Computer Servo High-Temperature Universal Testing Machine adopts computer control and is widely used in mechanical performance tests of non-metallic materials such as rubber, plastic, wire and cable, textiles, waterproof materials, non-woven fabrics, metal wires, metal foils, metal plates and metal rods. It can also be used with special fixtures. It is suitable for tensile, compression, peeling, shearing, tearing, bending (folding) tests of various finished products. It can print multiple data, and can make graphic output comparisons according to different data, with high control precision and easy operation; it adopts modular design, and various accessories are complete in variety and flexible in matching.
This machine is mainly suitable for testing the mechanical properties of metals such as tension, compression, and bending. It can also perform constant stress, constant strain, creep, relaxation, axial, and radial tests. Parameters such as tensile strength, yield strength, elongation, constant elongation stress, constant stress elongation, elastic modulus and other parameters can be automatically calculated according to GB, JIS, ASTM, DIN and other standards.
Technical Parameters:
| Capacityoption | KG | 2000 | 1000 | 500 | 200 | |
| Test Accuracy |
0.5 level, the accuracy of the test force indication is better than ±0.5% |
|||||
| Load Sensing | High-precision tension and pressure sensors (multiple sensors can be installed at the same time - optional) | |||||
| High Resolution | 1/500000 | |||||
| Magnification | 24-bit AD non-segment amplification | |||||
| Unit Selection | N, KN | |||||
| Test Speed Range | 0.001~500 mm/min stepless speed regulation | |||||
| Speed Control Accuracy | ±0.5% | |||||
| Displacement Decomposition Degree | 0.001mm | |||||
| Test Effective Width | Standard type: 400 mm (or customized according to customer requirements) | |||||
|
Test Stroke (Including Fixture) |
Standard type: 800 mm (or customized according to customer requirements) | |||||
|
Overload Setting Protection Function |
When it exceeds 10% of the set test force, the system automatically shuts down for protection | |||||
|
Stroke Setting Protection Function |
Travel upper and lower limit position setting protection | |||||
| Power | Servo Motor | Taiwan TECO servo motor (Panasonic servo motor optional) & Servo Drive Controller | ||||
| Power Consumption | 0.4KVA | |||||
| Power Supply | 1ø, 220 VAC, 50/60 Hz | |||||
|
Measurement System |
Hardware Specification | Provided computer hardware specifications to buy the original Haier brand machine, or the customer to prepare | ||||
| Special Software | Refer to the software version of the computer measurement system | |||||
| Volume | Host | 86x60x210 cm(W*D*H) | ||||
| Weight | Host | 300 kg | ||||
| Console | 100 kg | |||||
