| Product Name: | LCD Display Constant Temperature Humidity Climatic Chamber Lab Incubator | Model: | ZL-6030 |
|---|---|---|---|
| Temperature Control Range: | 0-60℃ | Power (KW): | 0.8-1.2 |
| Volume: | 50L-350L | Inner Liner Size (Width, Depth And Height) Mm: | 300*400*400 |
| Outer Box Size (Width, Depth, Height) Mm: | 500*540*940 | ||
| High Light: | LCD Display Climatic Chamber Lab Incubator,Humidity Climatic Chamber Lab Incubator,Temperature Humidity Chamber Incubator |
||

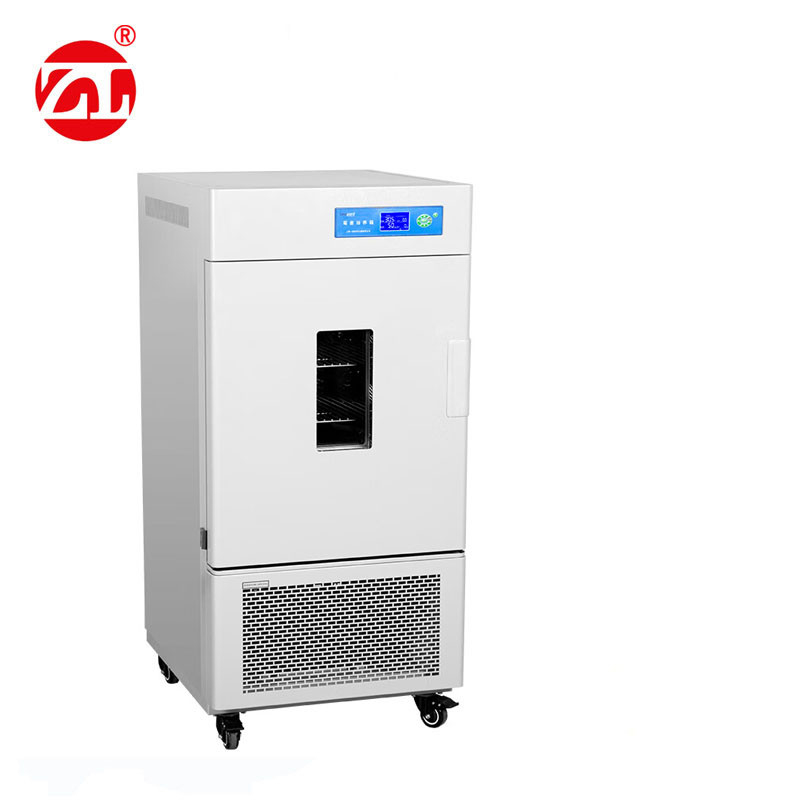

LCD Display Constant Temperature Humidity Climatic Chamber Lab Incubator
Environmental Test Chamber.pdf
I. Uses:
This product is suitable for environmental protection, health epidemic prevention, pharmacological supervision, agriculture and livestock, aquaculture and other scientific research institutions, production departments, is the water analysis and BOD determination, bacteria, mold, microbial culture, preservation, plant cultivation, breeding experiments of special thermostat equipment. Green environmental protection 134a refrigerant.
II. Technical parameters:
| Model | Temperature Control Range | Power (KW) | Volume | Inner Liner Size (Width, Depth and Height) mm | Outer Box Size (Width, Depth, Height) mm |
| ZL-50 |
0-60℃ |
0.8 | 50L | 300*400*400 | 500*540*940 |
| ZL-80 | 0.8 | 80L | 350*450*450 | 540*600*1040 | |
| ZL-150 | 0.9 | 150L | 400*500*730 | 620*640*1270 | |
| ZL-250 | 1 | 250L | 500*500*950 | 700*640*1490 | |
| ZL-350 | 1.2 | 350L | 500*600*1100 | 750*750*1550 |
III. Structural Features:
1.The product is vertical structure, the shell is made of high quality cold-rolled steel plate, the surface of electrostatic spraying.
2.The studio is made of mirror stainless steel plate processing. The four corners of the semi-circular arc over, partition bracket can be freely loaded and unloaded, easy to clean.
3.Temperature control system adopts microcomputer chip processor PID control mode, precise temperature control fluctuations, and has a time setting function, the maximum time can be set to 99 hours and 59 minutes.
4.The door with vacuum tempered glass observation window, can be observed through the observation window and lighting devices to observe the situation of the items inside the workplace, a broader view.
5.The use of brand compressors and circulating fans, a unique air supply system to make the temperature more uniform, to avoid the experimental process because of excessive air volume, resulting in the volatilization of samples.
6.The left side of the box is equipped with Ф40 test holes for users to check and external built-in equipment leads.
IV. Using Environment:
1.Power supply AC220V 50Hz.
2.Ambient temperature: 5 ℃ -35 ℃ (set temperature ≦ 10 ℃ when the ambient temperature ≦ 28 ℃)
3.Relative humidity≦80%;
4.The instrument shall not be surrounded by strong vibration and the presence of corrosive gases;
5.The instrument should avoid the influence of direct sunlight and other sources of heat and cold;
6.The instrument should be placed horizontally, and keep at least 20 centimeters of clearance around;
7.The instrument should be secured in a well-ventilated room without serious dust.
