ASTM1149 ASTM1171 Ozone Test Chamber/Rubber Plastic Climatic Ozone Aging Test Chamber

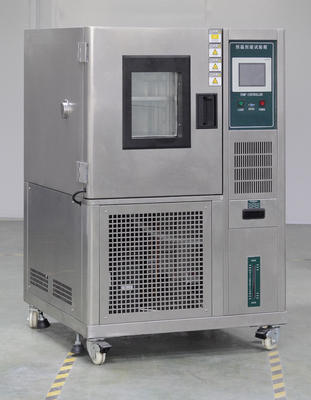

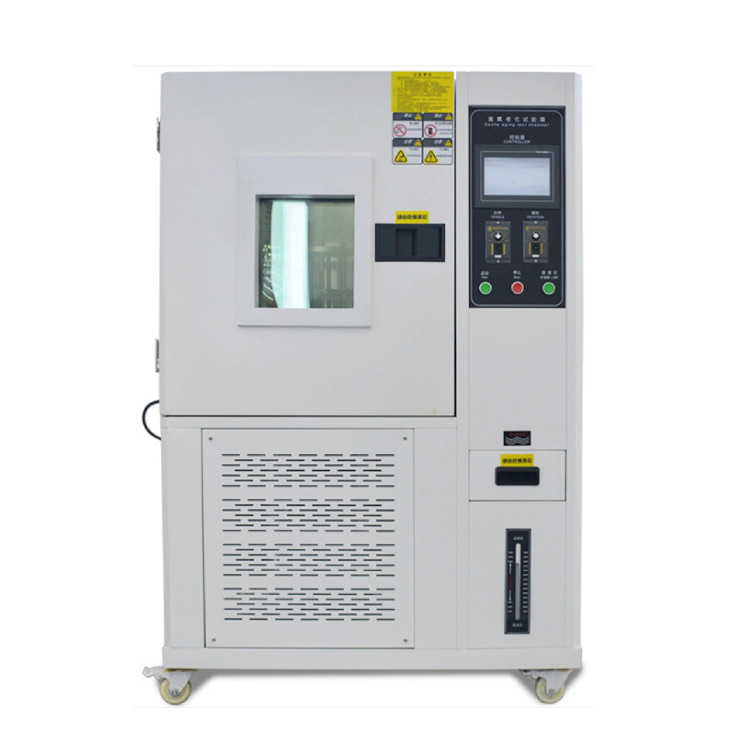

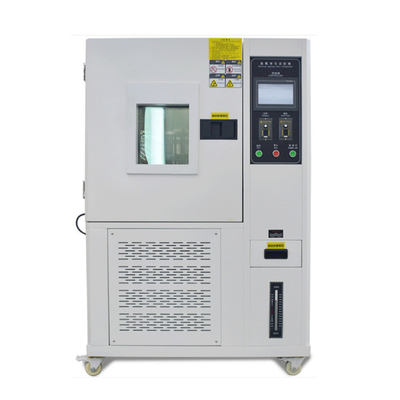

Large Image : ASTM1149 ASTM1171 Ozone Test Chamber/Rubber Plastic Climatic Ozone Aging Test Chamber

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-6018

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	ASTM1149 ASTM1171 Ozone Test Chamber/Rubber Plastic Climatic Ozone Aging Test Chamber is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Product Name:	ASTM1149 ASTM1171 Ozone Test Chamber/Rubber Plastic Climatic Ozone Aging Test Chamber	Volume:	150L
Inner Box Size:	W500 X H600 X D500mm	Outer Box Size About:	W1000 X H1700 X D900mm
Weight:	150KG	Power Supply:	AC220 ± 5% V/50 ± 0.5Hz
Temperature Fluctuation:	±0.5℃	Temperature Distribution Accuracy:	±2℃
Humidity Fluctuation:	35%～95%R.H
Highlight:	ASTM 1171 Ozone Test Chamber , Rubber Climatic Ozone Aging Test Chamber , 150L Ozone Aging Test Chamber

ASTM1149 ASTM1171 Ozone Test Chamber

Rubber Plastic Climatic Ozone Aging Test Chamber for evaluating ozone resistance of rubber and plastic materials under controlled environmental conditions.

Equipment Overview

Ozone chamber simulates and enhances atmospheric ozone conditions to study ozone effects on rubber, identify anti-ozone aging methods, and improve rubber product lifespan through effective anti-aging measures.

Main Functions

Tests rubber product cracking resistance in ozone environments with controlled ozone concentration to determine material ozone resistance.

Key Features

Silent high-efficiency ozone generator with treated air mixing
UV detector for continuous online ozone concentration monitoring
Precise ozone concentration control based on set values
Integrated heating and humidification systems
Maintains optimal test conditions throughout operation

Compliance Standards

JIS K 6259, ASTM1149, ASTM1171, ISO1431, DIN53509, GB/T13642, GB 2951 (wire and cable ozone resistance), GB/T 7762-2003 (vulcanized/thermoplastic rubber ozone cracking resistance - static tensile test).

Application Industries

Quality inspection, rubber & plastic, automotive, wire & cable, packaging materials, instrumentation, medical devices, civil nuclear energy, civil aviation, universities, research laboratories, technical supervision departments, and commercial arbitration.

Testing Process

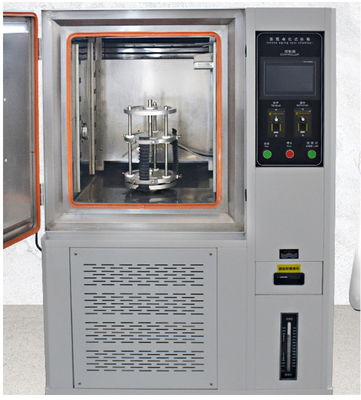

Specimens are elongated and fixed on rotating aluminum fixtures, contacting ozonated air parallel to airflow direction. Specimens rotate at 20-25 mm/s speed in vertical airflow plane, with 8-12 min rotation cycle and 40% chamber area scanning coverage.

Technical Parameters

Parameter	Specification
Product Name	(Static) Ozone Aging Tester
Volume	150L
Inner Box Size	W500 * H600 * D500mm
Outer Box Size	Approx. W1000 * H1700 * D900mm
Weight	Approx. 150kg
Power Supply	AC220 ± 5% V/50 ± 0.5Hz
Temperature Range	RT +10℃ - 60℃
Temperature Fluctuation	±0.5℃
Temperature Distribution	±2.0℃
Humidity Range	35% - 95% R.H (Optional)
Humidity Fluctuation	±3.0%
Ozone Concentration Accuracy	0-1000pphm ±15%
Test Gas Flow Rate	600 ± 100 mm/s
Rotation Rate	2 ± 1 r/min (Adjustable)
Test Components	3 groups simultaneously
Dynamic Pull-up Rate	0-20Hz (Adjustable)

Structural Characteristics

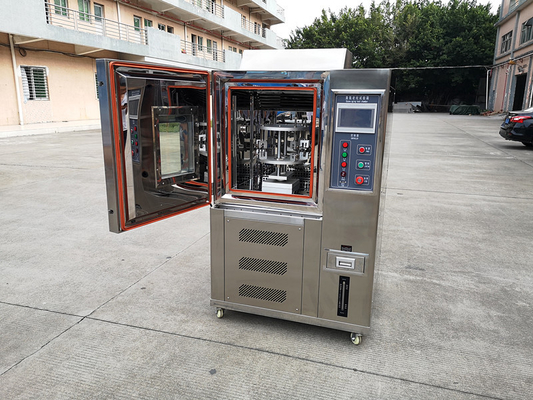

All-in-one structure with SUS304 stainless steel inner box and outer box (or beige baking paint). Double insulation protection with rigid polyurethane foam and aluminum silicate insulation cotton. Single left-opening door with silicone sealing, anti-condensation heating, observation window (W300*H450mm), and lighting.
