Dry And Wet Composite Salt Spray Corrosion Test Chamber 60L 120L Nss Aass Cass

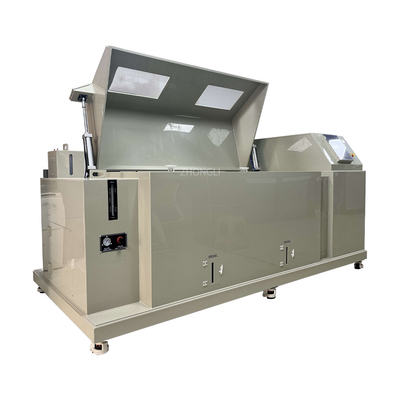

Large Image : Dry And Wet Composite Salt Spray Corrosion Test Chamber 60L 120L Nss Aass Cass

Product Details:

Place of Origin:	China
Brand Name:	Zhongli
Certification:	ISO
Model Number:	ZL-6001C

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Dry And Wet Composite Salt Spray Corrosion Test Chamber 60L 120L Nss Aass Cass With safety woonden case (fumigation free）
Delivery Time:	3-7 working days
Payment Terms:	T/T,Western Union,L/C
Supply Ability:	30 SetS Per Month

Contact Now

Detailed Product Description

Material:	Sheet Metal + Spray Paint	Color:	White
Power Supply:	80V Three-phase	Air Pressure:	1kg/cm2
Drying Test Temperature:	15°C~50°C ±1°C	Drying Test Humidity:	30% Or More
Wetting Test Temperature:	40 ° C ± 2 ° C	Wetting Test Humidity:	93%~100% Or More
Model:	ZL-6001C	Warranty:	12 Month
Name:	Dry And Wet Composite Salt Spray Corrosion Test Chamber 60L 120L Nss Aass Cass	Fixed Condition Can Set Time:	DIN PT-100Ω (platinum Induction)
Highlight:	60L Corrosion Test Chamber , 120L Corrosion Test Chamber , Cass Environmental Test Chamber

Dry And Wet Composite Salt Spray Corrosion Test Chamber

Available in 60L and 120L capacities with NSS, AASS, and CASS testing capabilities for comprehensive corrosion resistance evaluation.

Applications

This equipment is designed for testing the corrosion resistance performance of various materials including paints, electroplating, non-organic coatings, pastry film, anode treatments, and rust prevention oils.

Key Features

Automatic and manual water supply system with auto water supplement for low water level, ensuring continuous testing operations
Digital temperature controller with P.I.D. control and 0.1℃ accuracy for precise environmental conditions
Double over-temperature protection and low water level alarm for enhanced operating safety

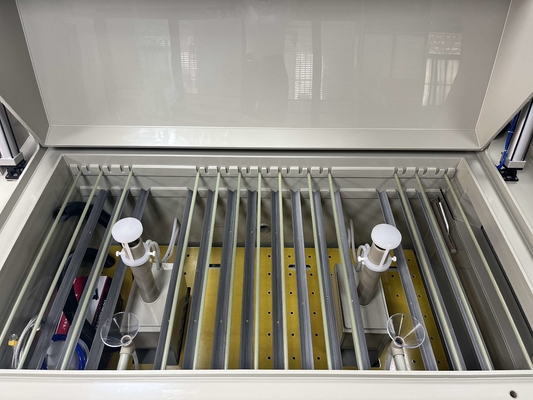

High-precision glass nozzle controls salt mist distribution, with conical diffuser ensuring uniform mist spray and free falling on specimens without crystallization salt blocking

Compliance Standards

This machine complies with specifications of IS, JASO M609 M610, SAE-J234, ASTM, and other international standards.

Technical Documentation

Testing Capacity Specifications

Type 90: 900 * 600 * 500 mm (W * D * H)
Type 120: 1200 * 1000 * 500 mm
Type 160: 1600 * 1000 * 500 mm
Type 200: 2000 * 1000 * 500 mm

Additional Specifications

Outer box space: According to actual size requirements

Power supply: 380V three-phase 50HZ MAX 30A

Testing Parameters

Test Type	Temperature Range	Additional Parameters
Salt Spray Laboratory: NSS, CASS	10°C ~ 50°C	Saturated air bucket: 47°C ± 1°C
Wetting Test	40°C ± 2°C	Humidity: 93%~100% or more Saturated air bucket: 47°C ± 1°C
Drying Test	15°C~50°C ±1°C	Humidity: 30% or more
