ISO1431 DIN53509 Climatic Ozone Test Chamber Accelerated Weathering Rubber Plastic

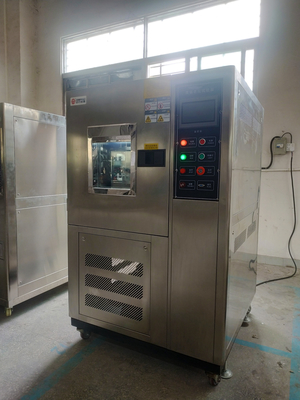

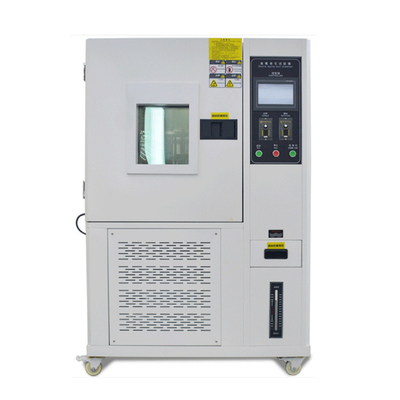

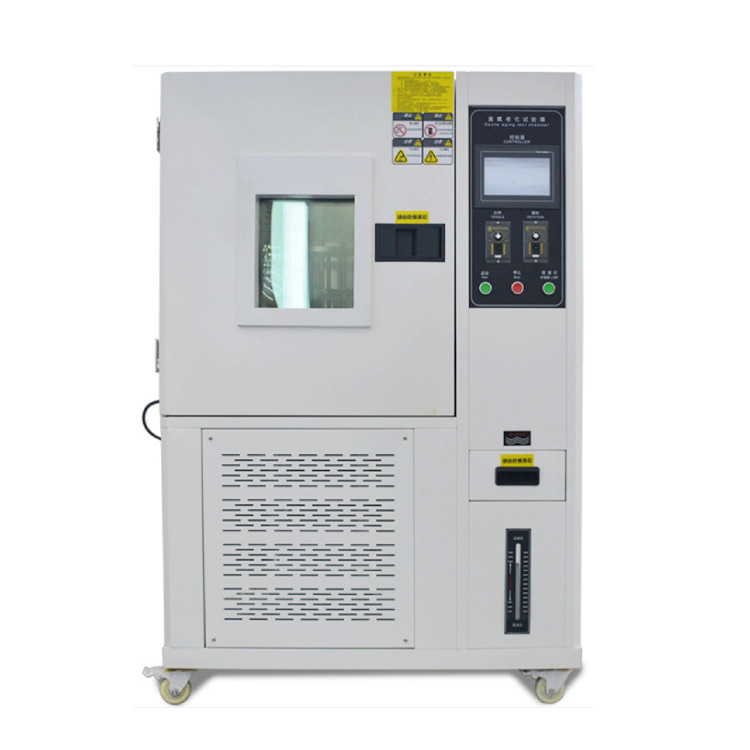

Large Image : ISO1431 DIN53509 Climatic Ozone Test Chamber Accelerated Weathering Rubber Plastic

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-6018

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	ISO1431 DIN53509 Accelerated Weathering Rubber Plastic Climatic Ozone Test Chamber is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Product Name:	ISO1431 DIN53509 Accelerated Weathering Rubber Plastic Climatic Ozone Test Chamber	Volume:	150L (L For Liter)
Inner Box Size:	W500 X H600 X D500mm	Weight:	Approx. 150kg
Temperature Range:	RT +10 ℃ - 60℃	Temperature Fluctuation:	±0.5℃
Temperature Distribution Accuracy:	±2.0℃	Humidity Fluctuation:	±3.0%.
Highlight:	DIN53509 Climatic Test Chamber , Climatic Ozone Test Chamber , ISO 1431 Ozone Test Chamber

ISO1431 DIN53509 Climatic Ozone Test Chamber for Accelerated Weathering of Rubber & Plastic

Download Technical Documentation: ZL-6018 Ozone-resistance testing machine.pdf

Ozone is a major factor in rubber cracking despite its rarity in the atmosphere. The ozone aging test chamber simulates and enhances atmospheric ozone conditions to study ozone's effects on rubber, enabling identification and evaluation of anti-ozone aging methods and effective anti-aging measures to extend rubber product lifespan.

Compliance Standards

JIS K 6259, ASTM1149, ASTM1171, ISO1431, DIN53509, GB7762, GB/T13642

Industry Applications

Widely used for quality control in rubber & plastics manufacturing, automotive production, wire and cable, packaging materials, instruments and meters, medical equipment, civilian nuclear energy, civil aviation, colleges and universities, research laboratories, inspection arbitration, and technical supervision departments.

Technical Specifications

Product Performance

Product Name	(Static) Ozone Aging Tester
Chamber Volume	150L
Inner Box Dimensions	W500 * H600 * D500mm
Outer Box Dimensions	Approx. W1000 * H1700 * D900mm
Weight	Approx. 150kg
Power Supply	AC220 ± 5% V/50 ± 0.5Hz

Testing Capabilities

This equipment simulates and strengthens atmospheric ozone conditions to study ozone's effects on rubber, enabling rapid identification and evaluation of rubber anti-ozone aging performance and anti-ozone agent protection effectiveness. Compliant with GB/T7762-2014, GB/T2951.21-2008, GB/T11206-2009, and other relevant standards.

Testing Methods

Testing methods include "static" (samples stretched or placed directly in chamber) and "dynamic" (samples placed on fixtures with 5%-45% stretching float).

Main Technical Parameters

Temperature Range	RT +10℃ - 60℃
Temperature Fluctuation	±0.5℃
Temperature Distribution Accuracy	±2.0℃
Humidity Range	35% - 95% R.H (Optional)
Humidity Fluctuation	±3.0%
Humidity Distribution Accuracy	±3.0%
Ozone Concentration Accuracy	0-1000pphm ±15%
Test Gas Flow Rate	600±100mm/s
Rotation Rate of Shelf	2±1r/min (adjustable)
Number of Test Components	3 groups simultaneously
Dynamic Pull-Up Rate	0-20Hz (adjustable)

Structural Features

Construction & Materials

Structure: All-in-one design
Inner Box: SUS304 stainless steel plate
Outer Box: SUS304 stainless steel plate or baking paint (beige)
Thermal Insulation: Rigid polyurethane foam + aluminum silicate insulation cotton double protection

Door & Observation

Single door, left opening
Double silicone rubber sealing strips with anti-condensation electric heating device
Observation window: W300*H450mm with lighting

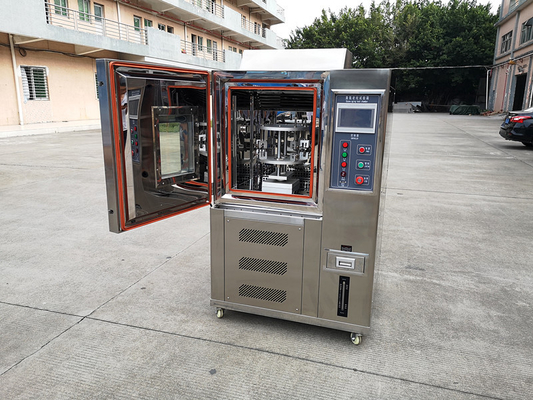

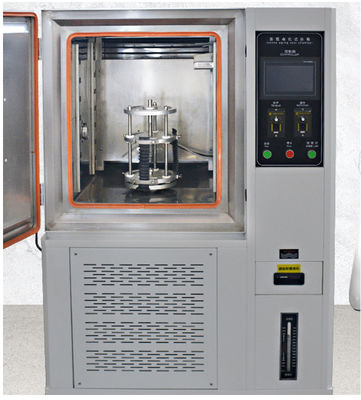

Sample Holder (Dynamic Testing)

Fixtures made of non-ozone-decomposing materials (aluminum), specimen rotation speed (20-25) mm/s, scanning area ≥40% of chamber effective area, minimum 3 specimens per test condition.

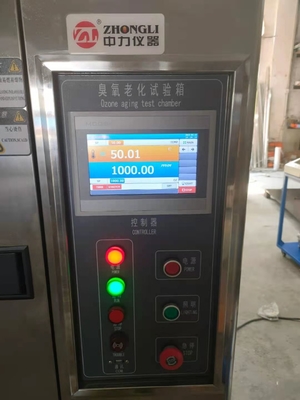

Control Panel & Configuration
