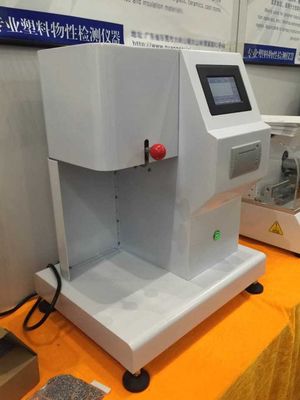

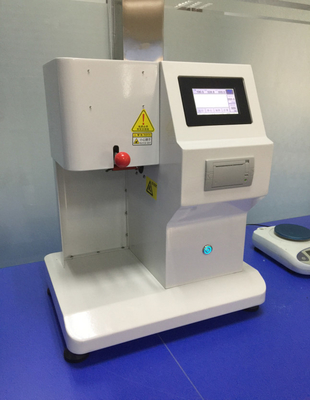

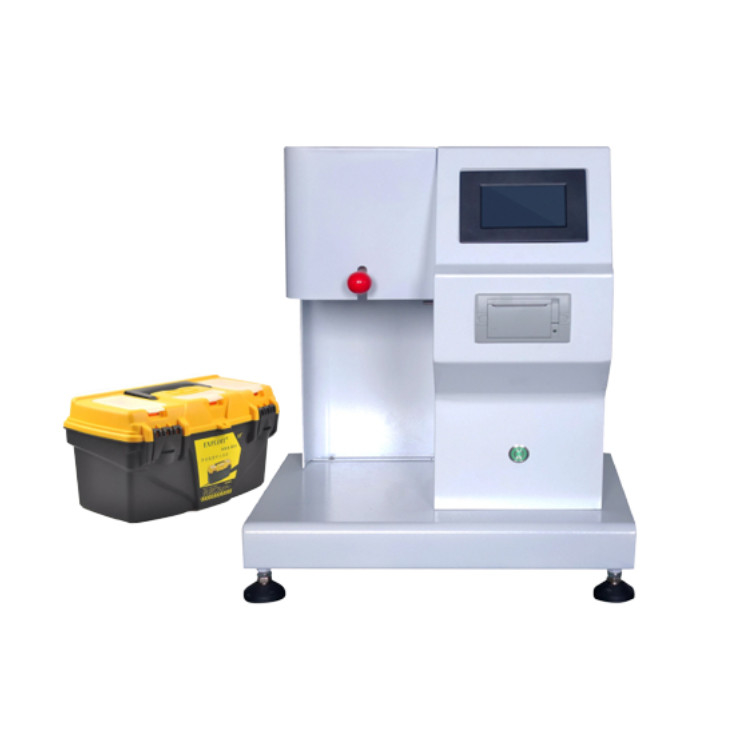

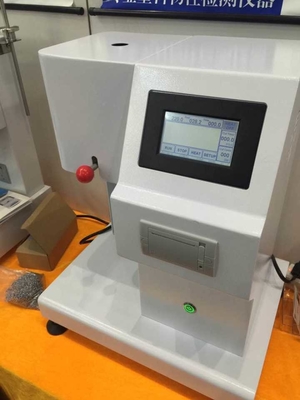

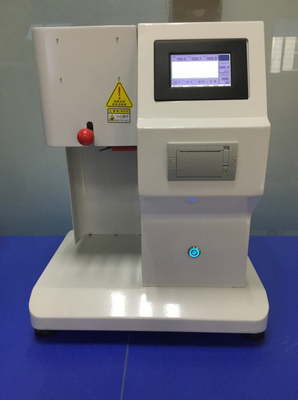

ISO 1133 Melt Flow Index Tester MVR MFI MFR Plastic Equipment

Large Image : ISO 1133 Melt Flow Index Tester MVR MFI MFR Plastic Equipment

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-3013

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	ISO 1133 Melt Flow Indexer Tester MVR MFI MFR Plastic Equipment will be Packaged in wooden case
Delivery Time:	3-7 days
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	100 set per month

Contact Now

Detailed Product Description

Test Method:	Quality Act (MFR)	Temperature Range:	Room Temperature——450℃
Temperature Accuracy:	±0.2℃	Temperature Resolution:	0.1℃
Timing Range:	0.1——999 Seconds	Timing Accuracy:	0.1 Seconds
Product Name:	GB / T3682 Digital Plastic MFI Melt Flow Index Test Equipment For ABS Resin , Nylon	Key Words:	Melt Flow Rate
Highlight:	ISO 1133 Melt Flow Index Tester , MVR Melt Flow Index Tester , MFI Melt Flow Tester

ISO 1133 Melt Flow Index Tester MVR MFI MFR Plastic Equipment

Equipment Overview

The Plastic MFI Melt Flow Index Test Equipment is designed to determine the melt flow rate of thermoplastics (MFR; units: g/10min). This instrument is suitable for testing polyethylene, polypropylene, polyoxymethylene, ABS resin, polycarbonate, nylon, and various other polymer fluorides to determine their melt flow rate at high temperatures.

Download Brief:
ZL-3013 Melt flow rate meter.pdf

Working Principle

The Plastic MFI Melt Flow Index Test Equipment operates by melting the test material under specified temperature conditions using a high-temperature furnace. In the molten state, the material is extruded through a standardized diameter orifice under the force of applied weight loads. The melt flow rate represents the polymer material's fluidity and viscosity properties in the molten state, commonly used in industrial and research applications.

Melt Flow Rate Formula:
MFR (θ, m_nom) = t_ref * m / t = 600 * m / t (g/10min)

Where:
θ - Test temperature
m_nom - Nominal Load (Kg)
m - Average cut quality (g)
t_ref - Reference time (10min): 600
t - Cut-off time interval (seconds)

Calculation Example

Sample Data: Cut sections every 30 seconds: 0.081g, 0.086g, 0.081g, 0.089g, 0.082g

Calculation:
Average cut quality m = (0.081 + 0.086 + 0.081 + 0.089 + 0.082) ÷ 5 = 0.0838 ≈ 0.084g
MFR = 600 * 0.084 ÷ 30 = 1.680 g/10min

Applications

This equipment is essential for factories, manufacturing enterprises, and research institutes involved in plastic production, quality control, and material research.

Compliance Standards

Designed and manufactured in accordance with GB/T3682-2000 requirements.

Technical Parameters

Parameter	Specification
Discharge Port Diameter	Φ2.095±0.005mm
Discharge Port Length	8.000±0.025mm
Loaded Barrel Diameter	Φ9.550±0.025mm
Loaded Barrel Length	152±0.1mm
Piston Head Diameter	9.475±0.015mm
Piston Head Length	6.350±0.100mm
Standard Test Load (8 grades)	0.325kg, 1.200kg, 2.160kg, 3.800kg, 5.000kg, 10.000kg, 12.500kg, 21.600kg
Load Test Relative Error	≤0.5%
Test Method	Quality Act (MFR)
Temperature Range	Room temperature - 450℃
Temperature Accuracy	±0.2℃
Temperature Resolution	0.1℃
Timing Range	0.1 - 999 seconds
Timing Accuracy	0.1 seconds
Material Cutting Method	Automatic or manual
Display	LCS
Print	Equipped with printer for test reports
Working Conditions	Ambient temperature 10℃-40℃; relative humidity 30%-80%
Dimensions	250350510mm (LWH)
