Rubber Impact Flexible And Elasticity Testing Machine , Lab Rubber Rebound Tester

Large Image : Rubber Impact Flexible And Elasticity Testing Machine , Lab Rubber Rebound Tester

Product Details:

Place of Origin:	CHINA
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-3007A

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	Negotiable
Packaging Details:	Lab Rubber Impact Flexible and Elasticity Testing Machine Rubber Rebound Tester is Packaged within wooden case.
Delivery Time:	4-7 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	50 set / month

Contact Now

Detailed Product Description

Instruction Range:	0-100%	Marking Scale:	1%
Adjustable Range Of Specimen Thickness:	0~60mm	Scale Mark:	1mm
Dimension:	621233cm	Weight:	38KG
Highlight:	1mm Elasticity Testing Machine , 60mm Elasticity Testing Machine , Lab Rubber Rebound Tester

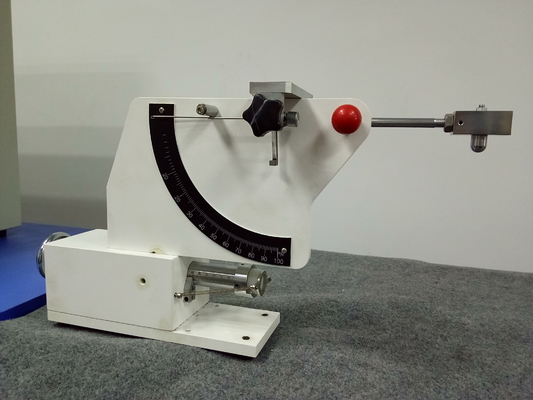

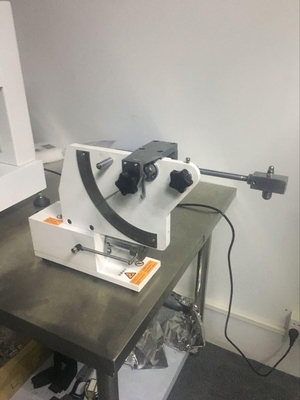

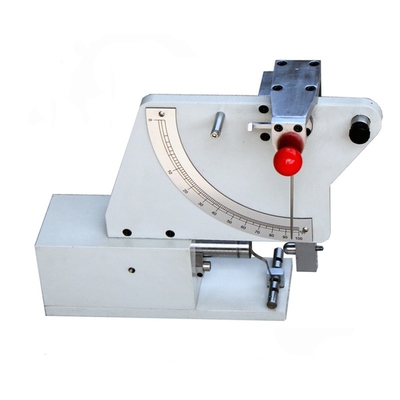

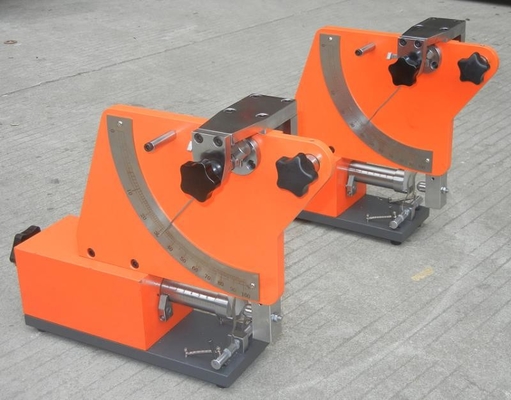

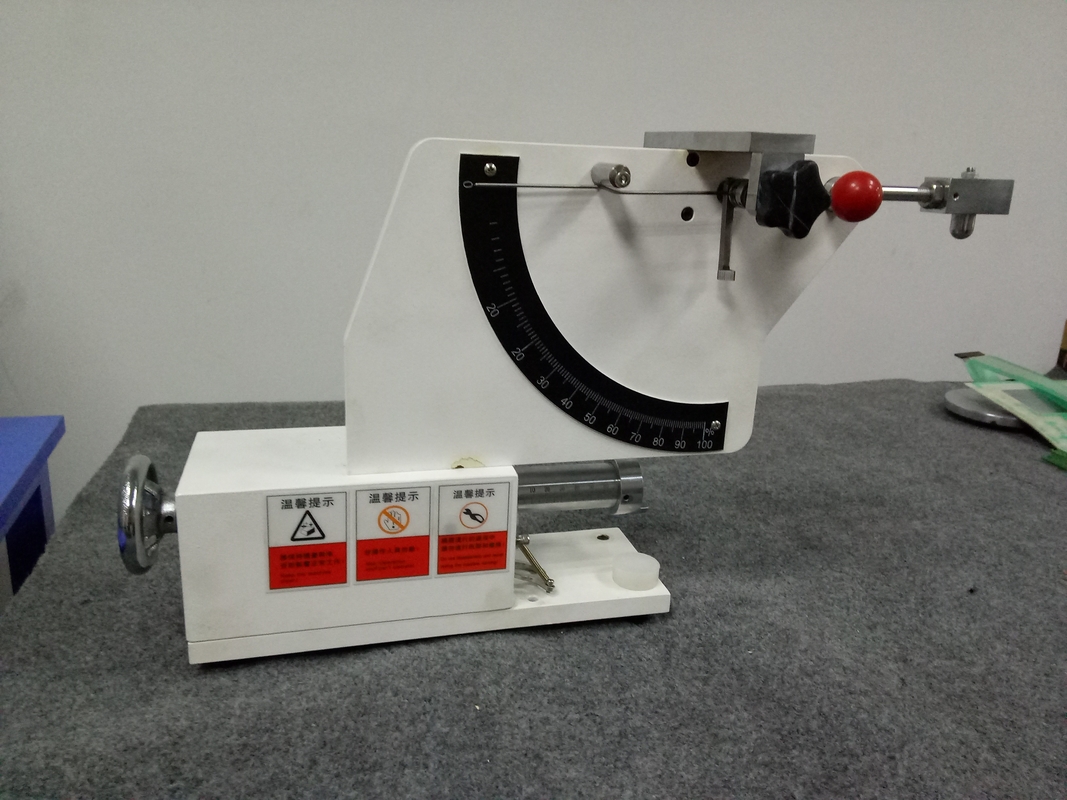

Lab Rubber Impact Flexible and Elasticity Testing Machine

This pendulum-type impact testing machine measures the rebound elasticity of vulcanized rubber with nominal hardness between 30-85 IRHD. Designed for precision laboratory testing, it delivers accurate results for rubber flexibility and elasticity analysis.

Equipment Overview

The 0.5J energy pendulum-type impact testing machine is specifically designed to measure rebound values for vulcanized rubber within the nominal hardness range of 30-85 IRHD, providing reliable flexibility testing data.

Key Features

Automatic display and storage of test results with direct printing capability
Comprehensive data display including angle energy measurements
Integrated safety protection devices with emergency stop button for secure testing operations

Compliance Standards

Meets GB/T 1681 "Determination of vulcanized rubber elasticity" requirements and conforms to ISO 4662 standards for reliable, standardized testing.

Industry Application

Specifically designed for rubber manufacturing and quality control applications.

Technical Specifications

Parameter	Specification
Instruction Range	0~100%
Marking Scale	1%
Adjustable Specimen Thickness Range	0~60mm
Scale Mark	1mm

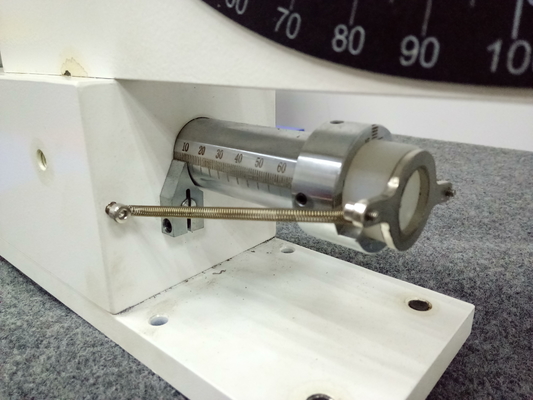

Measuring Elastic Feeding Device	Flexible test material measuring device (compliant with DIN53512 and ISO4662 specifications)
Dimensions	621233cm
Weight	38kg
