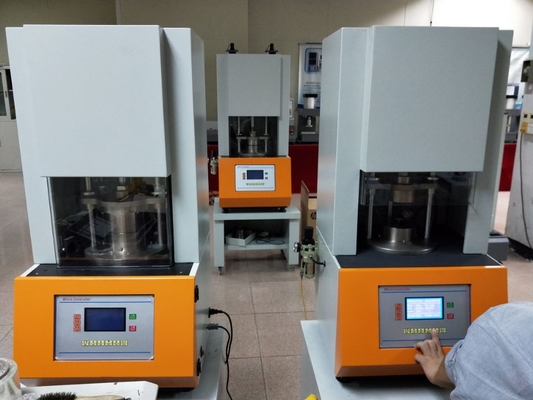

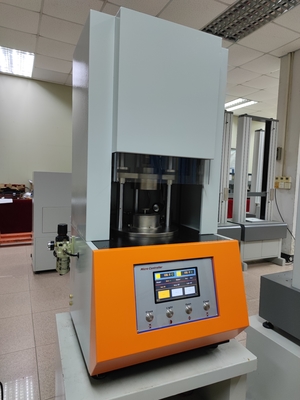

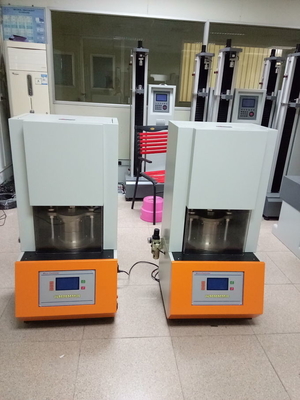

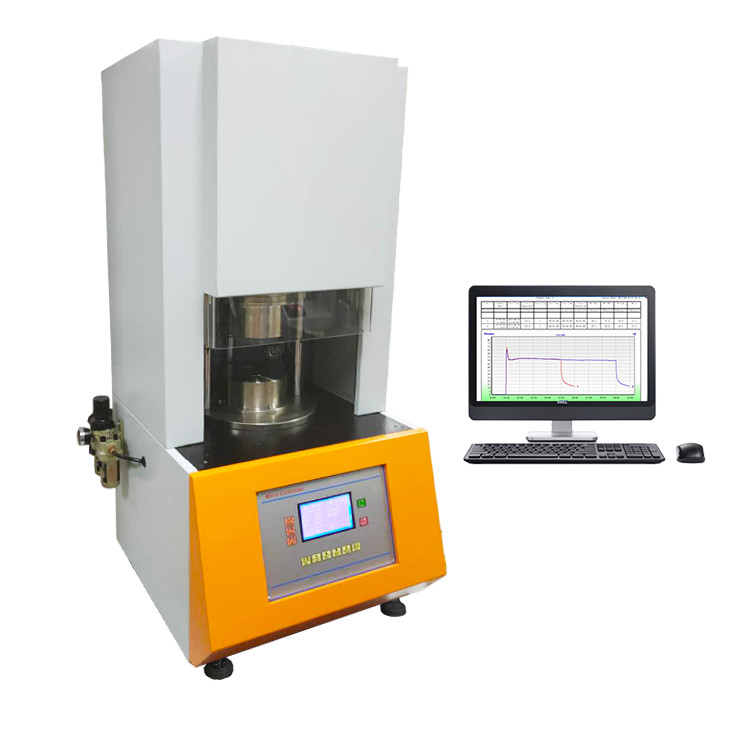

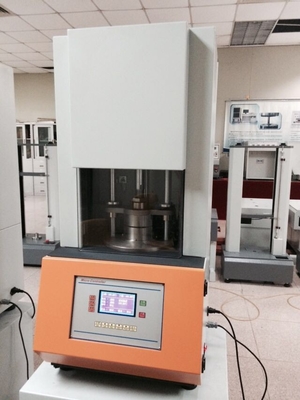

JSC-K6300 Computer Controlled Viscosity Mooney Viscometer Cup For Rubber

Large Image : JSC-K6300 Computer Controlled Viscosity Mooney Viscometer Cup For Rubber

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-3002

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	JSC-K6300 Computer Controlled Viscosity Mooney Viscometer Testing Machine Cup For Rubber is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Product Name:	JSC-K6300 Computer Controlled Viscosity Mooney Viscometer Testing Machine Cup For Rubber	Control Temperature Range:	Normal Temperature~200℃
Temperature Control Accuracy:	±0.3℃	Calibration Accuracy:	Mooney Value ±0.5
Rotor Speed:	2 Rotation/ Min ±0.02rotation/ Min	Torque Range:	Mooney Value 0～200
Torque Resolution:	Mooney Value 0.1	Print Content:	Date, Time, Temperature, Mooney Scorch Curve And MV,T5,T35,T3,T18,@15,@30
Power:	50HZ, ～220V±10％	Key Words:	Mooney Viscometer
Highlight:	50HZ Mooney Viscometer , Computer Controlled Mooney Viscometer , Rubber Viscosity Testing Machine

JSC-K6300 Computer Controlled Viscosity Mooney Viscometer Cup For Rubber

Product Overview

The JSC-K6300 Computer Controlled Viscosity Mooney Viscometer Testing Machine is designed to measure the Mooney viscosity of elastomers and rubbers. This precision instrument features a rotating spindle and heated dies, where the test substance encloses and overflows the spindle, with viscosity calculated from the torque measurement.

Technical Documentation

Download Brief: ZL-3002 Mooney Viscometer.pdf

Compliance Standards

ASTM-D2084, ASTM-D5289, ISO-6502, ASTM-D1646

Application & Features

This instrument determines viscosity, scorch, and vulcanization index of raw rubber or rubber compounds. With computer control, data display, and automatic calibration, it serves as ideal experimental equipment for rubber industry applications and scientific research units.

Test Results & Measurements

MI - Initial Mooney viscosity
ML - Minimum Mooney value in the last 30 seconds before motor stopped
Mx-t - Mooney value relating to time t
Stress Relaxation measurements
MRe - Mooney value at the end of stress relaxation
TRx - Time needed for x% torque stress relaxation
Xy% - Percentage of viscosity decay after motor stopped y seconds
Comprehensive graphing capabilities including Viscosity-Time curves and Test temperature curves

Technical Specifications

Parameter	Specification
Model	ZL-3002
Control Temperature Range	Normal temperature ~ 200℃
Temperature Display Resolution	0.01℃ (0.1℃ common type of imported temperature controller)
Temperature Control Accuracy	±0.3℃
Calibration Accuracy	Mooney value ±0.5
Rotor Speed	2 rotation/min ±0.02 rotation/min
Torque Range	Mooney value 0-200
Torque Resolution	Mooney value 0.1
Print Content	Date, time, temperature, Mooney scorch curve and MV, T5, T35, T3, T18, @15, @30
Power Requirements	50HZ, ~220V±10%
