Precision Laboratory Rubber Viscosity Tester , IOS-289 Mooney Viscometer

Large Image : Precision Laboratory Rubber Viscosity Tester , IOS-289 Mooney Viscometer

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-3002

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	IOS-289 Precision Labrotary Rubber Viscosity Tester Mooney Viscometer Viscosity Meter is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Product Name:	IOS-289 Precision Labrotary Rubber Viscosity Tester Mooney Viscometer Viscosity Meter	Control Temperature Range:	Normal Temperature~200℃
Temperature Control Accuracy:	±0.3℃	Calibration Accuracy:	Mooney Value ±0.5
Rotor Speed:	2 Rotation/ Min ±0.02rotation/ Min	Torque Range:	Mooney Value 0～200
Torque Resolution:	Mooney Value 0.1	Print Content:	Date, Time, Temperature, Mooney Scorch Curve And MV,T5,T35,T3,T18,@15,@30
Power:	50HZ, ～220V±10％	Key Words:	Mooney Viscometer
Highlight:	Precision Rubber Viscosity Tester , Laboratory Mooney Viscometer , IOS-289 Viscosity Meter

Precision Laboratory Rubber Viscosity Tester, IOS-289 Mooney Viscometer

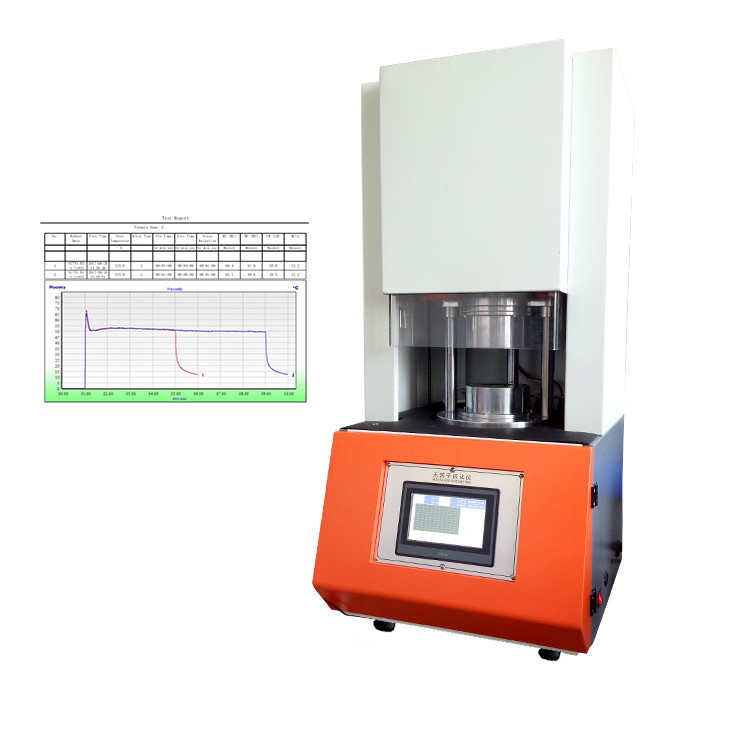

ZL-3002 Mooney Viscometer

Compliance Standards

ASTM-D2084, ASTM-D5289, ISO-6502, ASTM-D1646

Product Overview

The Mooney Viscometer is a precision instrument designed for measuring the viscosity of elastomers and rubbers. It features a rotating spindle and heated dies where the test substance encloses and overflows the spindle. Mooney viscosity is calculated from the torque measurement on the spindle.

Advanced Features

This instrument offers fully automatic testing with flexible measurement time adjustment. During testing, users can modify measurement points (15, 20, or 30 points) directly from the experimental chart interface. The system automatically adjusts measurement duration and will conclude testing if target values (t18 or t35) are not detected within 200 minutes, providing significant time and material savings.

Test Results & Measurements

MI - Initial Mooney viscosity
ML - Minimum Mooney value in last 30 seconds before motor stop
Mx-t - Mooney value relating to time t
MRe - Mooney value at end of stress relaxation
TRx - Time needed for x% torque stress relaxation
Xy% - Percentage of viscosity decay after motor stopped y seconds
Comprehensive graphing including Viscosity-Time curves and Test temperature curves

Technical Specifications

Model	ZL-3002
Control Temperature Range	Normal temperature ~ 200℃
Temperature Display Resolution	0.01℃
Temperature Control Accuracy	±0.3℃
Calibration Accuracy	Mooney value ±0.5
Rotor Speed	2 rotation/min ±0.02 rotation/min
Torque Range	Mooney value 0-200
Torque Resolution	Mooney value 0.1
Print Content	Date, time, temperature, Mooney scorch curve and MV, T5, T35, T3, T18, @15, @30
Power Requirements	50HZ, ~220V±10%

Manufacturer Information

Zhongli Instrument Technology Co., Ltd
Headquartered in Dongguan, Guangdong, China since 2007, we specialize in manufacturing laboratory testing equipment. With over 14 years of industry experience, our products are exported to more than 95 countries worldwide, with particular popularity in European and American markets.

Industry Applications

Our equipment serves a wide range of industries including rubber and plastics, food processing, packaging, electronics, and is suitable for scientific research institutions, quality inspection organizations, and academic applications.

In addition to standard machines, our R&D team provides custom solutions tailored to specific requirements. Contact us with your testing needs for personalized equipment solutions.
