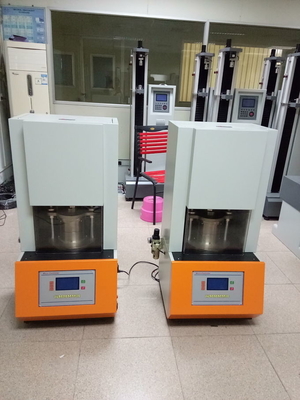

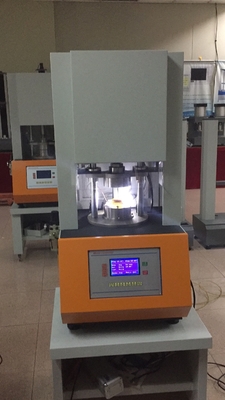

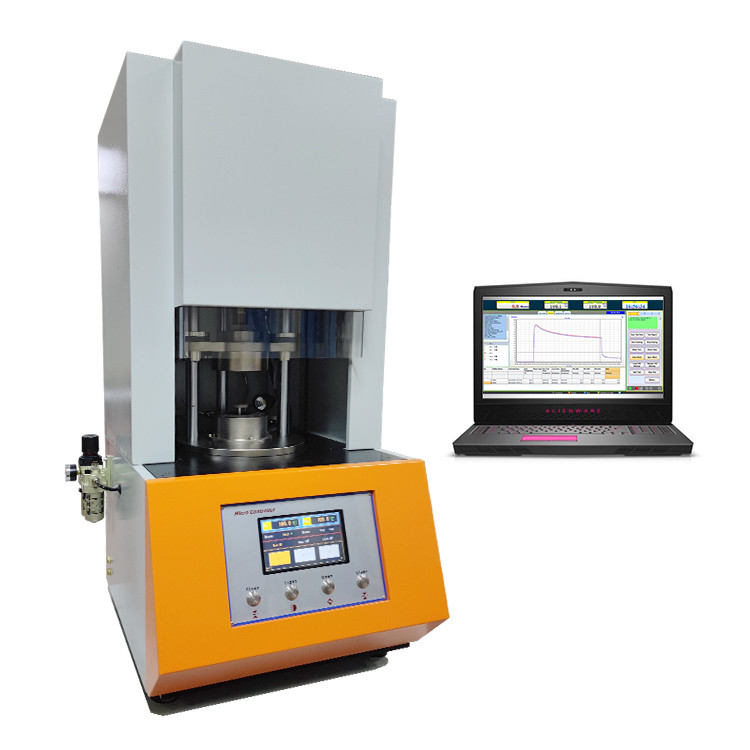

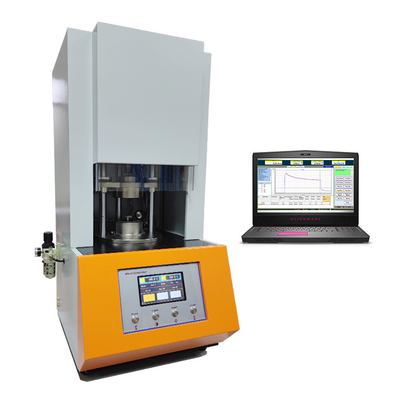

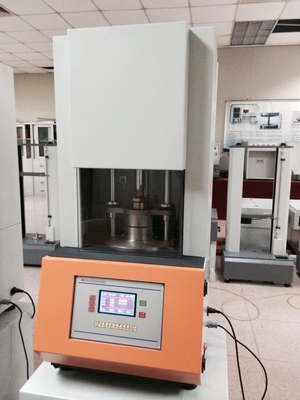

ASTM-D5289 Digital Mooney Viscosity Testing Machine Foam Plastic Rubber

Large Image : ASTM-D5289 Digital Mooney Viscosity Testing Machine Foam Plastic Rubber

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-3002

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	ASTM-D5289 Digital Mooney Viscosity Test Machine Foam Plastic Rubber Viscosity Meter is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Product Name:	ASTM-D5289 Digital Mooney Viscosity Test Machine Foam Plastic Rubber Viscosity Meter	Control Temperature Range:	Normal Temperature~200℃
Temperature Control Accuracy:	±0.3℃	Calibration Accuracy:	Mooney Value ±0.5
Rotor Speed:	2 Rotation/ Min ±0.02rotation/ Min	Torque Range:	Mooney Value 0～200
Torque Resolution:	Mooney Value 0.1	Print Content:	Date, Time, Temperature, Mooney Scorch Curve And MV,T5,T35,T3,T18,@15,@30
Power:	50HZ, ～220V±10％	Key Words:	Mooney Viscometer
Highlight:	ASTM-D5289 Viscosity Testing Machine , Mooney Viscosity Testing Machine , Foam Plastic Rubber Viscosity Meter

ASTM-D5289 Digital Mooney Viscosity Testing Machine for Foam Plastic Rubber

Product Documentation

Download Technical Brief: ZL-3002 Mooney Viscometer.pdf

Compliance Standards

ASTM-D2084, ASTM-D5289, ISO-6502, ASTM-D1646

Product Overview

This digital Mooney viscosity testing machine measures the viscosity, scorching, and sulfur index of raw rubber and blended rubber compounds. Featuring microcomputer control, data display, and automatic calibration, it is an ideal experimental instrument for rubber industry applications and scientific research facilities.

The system incorporates imported intelligent digital temperature control instrumentation for easy adjustment and setup, with a wide temperature control range. Computer control and interface boards enable comprehensive data acquisition, storage, processing, and printing of test results and curves.

Mooney Viscometer Testing Principle

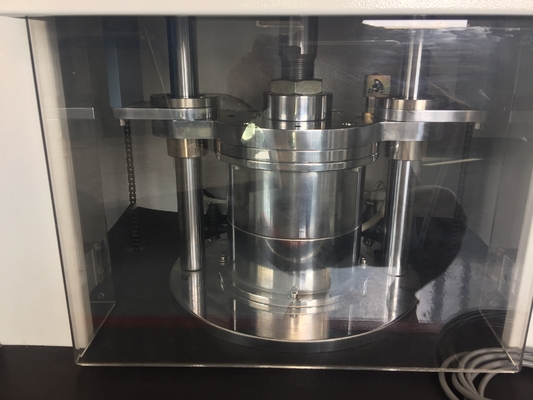

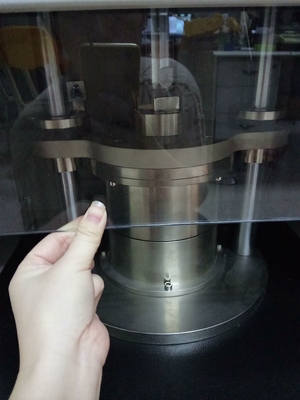

This instrument measures the Mooney viscosity of substances, primarily elastomers and rubbers. The testing process involves a rotating spindle and heated dies, where the test substance encloses and overflows the spindle. Mooney viscosity is calculated from the torque exerted on the spindle during rotation.

Test Results and Measurements

MI - Initial Mooney viscosity
ML - Minimum Mooney value in the last 30 seconds before motor stopped
Mx-t - Mooney value relating to time t
x - Time of preheat, t - Mooney test time
MRe - Mooney value at the end of stress relaxation
TRx - Time needed for x% torque stress relaxation
Xy% - Percentage of viscosity decay after motor stopped y seconds
Exponent a, constant k, correlation coefficient r, and area A values
Graphical outputs including viscosity-time curves and test temperature curves
Mooney viscosity graph, relaxation graph, and log Mooney units versus log time graph

Technical Specifications

Model	ZL-3002
Control Temperature Range	Normal temperature ~ 200℃
Temperature Display Resolution	0.01℃ (0.1℃ common type of imported temperature controller)
Temperature Control Accuracy	±0.3℃
Calibration Accuracy	Mooney value ±0.5
Rotor Speed	2 rotation/min ±0.02 rotation/min
Torque Range	Mooney value 0-200
Torque Resolution	Mooney value 0.1
Print Content	Date, time, temperature, Mooney scorch curve and MV, T5, T35, T3, T18, @15, @30
Power Requirements	50HZ, ~220V±10%

Manufacturer Profile

Zhongli Instrument Technology Co., Ltd is an instrument expert headquartered in Dongguan, Guangdong, China. Since 2007, we have specialized in manufacturing laboratory testing equipment.

Throughout our 14+ year history, our products have sold well in European, American, and Southeast Asian markets, reaching over 95 countries worldwide. Our equipment is particularly favored by European and American customers.

Our equipment portfolio covers a wide range of industries including rubber and plastics, food, packaging, electronics, and more. Our products are suitable for all scientific research units, quality inspection institutions, and academic applications.

In addition to standard machines, our R&D team can provide customized solutions. Simply communicate your specific requirements and we will deliver a solution that meets your needs.
