Computer Servo Rubber Mooney Viscosimeter , Viscosity Test Mooneyes Equipment

Large Image : Computer Servo Rubber Mooney Viscosimeter , Viscosity Test Mooneyes Equipment

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-3002

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Computer Servo Rubber Mooney Viscosimeter Mooneyes Equipment Viscosity Test is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Product Name:	Computer Servo Rubber Mooney Viscosimeter Mooneyes Equipment Viscosity Test	Control Temperature Range:	Normal Temperature~200℃
Temperature Control Accuracy:	±0.3℃	Calibration Accuracy:	Mooney Value ±0.5
Rotor Speed:	2 Rotation/ Min ±0.02rotation/ Min	Torque Range:	Mooney Value 0～200
Torque Resolution:	Mooney Value 0.1	Print Content:	Date, Time, Temperature, Mooney Scorch Curve And MV,T5,T35,T3,T18,@15,@30
Power:	50HZ, ～220V±10％	Key Words:	Mooney Viscometer
Highlight:	Computer Servo Mooney Viscosimeter , Rubber Mooney Viscosimeter , Viscosity Test Mooneyes Equipment

Computer Servo Rubber Mooney Viscosimeter

Professional viscosity testing equipment for rubber materials with advanced computer servo control system.

Download Technical Brief

Compliance Standards

ASTM-D2084, ASTM-D5289, ISO-6502, ASTM-D1646

Product Overview

This instrument measures the Mooney viscosity of unvulcanized natural rubbers, synthetic rubber bands, and recycled rubbers. It determines Mooney values, scorch time, and vulcanization index to provide comprehensive material analysis for product development and quality control.

Testing Capabilities

Mooney viscosity measurement with large rotor
Initial Mooney viscosity (MI) and minimum Mooney value (ML)
Time-specific Mooney values (Mx-t)
Stress relaxation analysis
Viscosity decay percentage calculations
Comprehensive graphical outputs including Viscosity-Time curves and temperature curves

Technical Specifications

Model	ZL-3002
Temperature Range	Normal temperature ~ 200℃
Temperature Resolution	0.01℃
Temperature Accuracy	±0.3℃
Calibration Accuracy	Mooney value ±0.5
Rotor Speed	2 rotation/min ±0.02 rotation/min
Torque Range	Mooney value 0-200
Torque Resolution	Mooney value 0.1
Power Requirements	50HZ, ~220V±10%

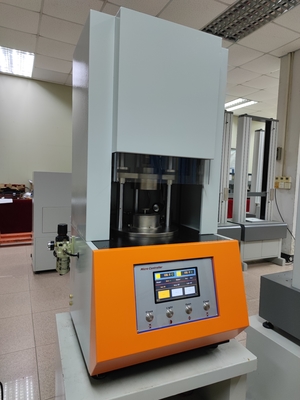

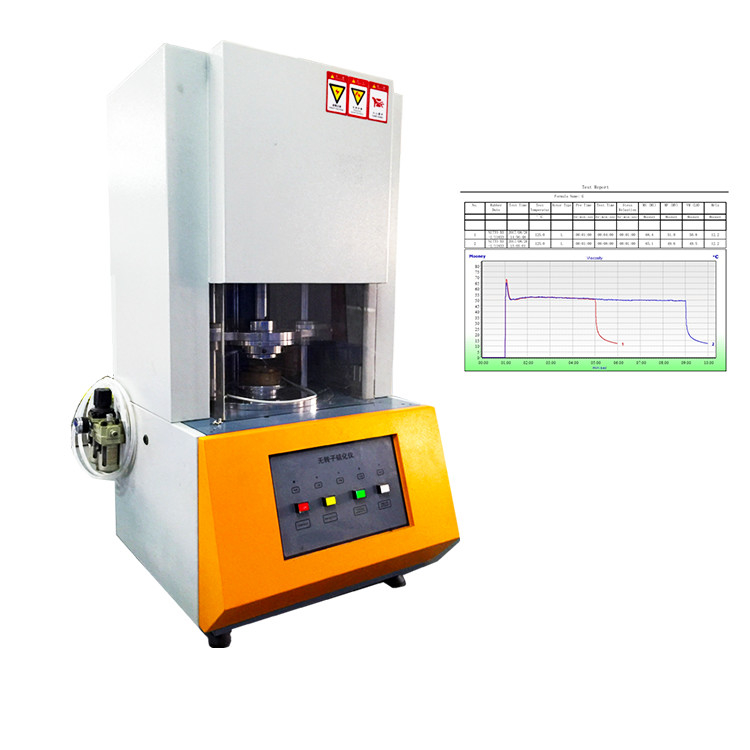

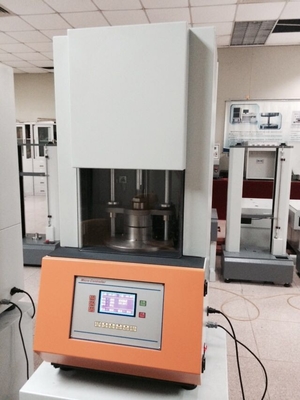

Equipment Image

About Zhongli Instrument Technology

Since 2007, Zhongli Instrument Technology Co., Ltd has specialized in manufacturing laboratory testing equipment. Our products are exported to over 95 countries worldwide, with strong presence in European, American, and Southeast Asian markets.

We serve multiple industries including rubber and plastics, food, packaging, and electronics, providing equipment for scientific research, quality inspection, and academic applications. Our R&D team offers custom solutions to meet specific testing requirements.
