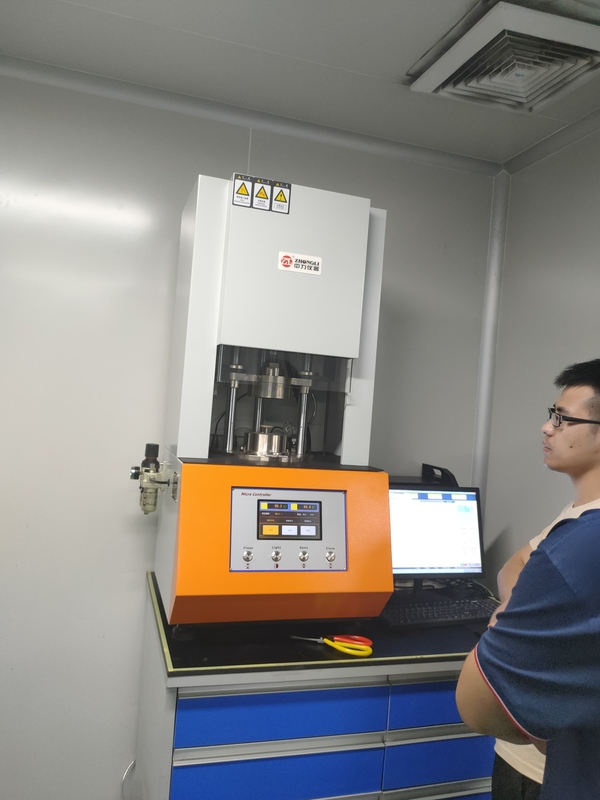

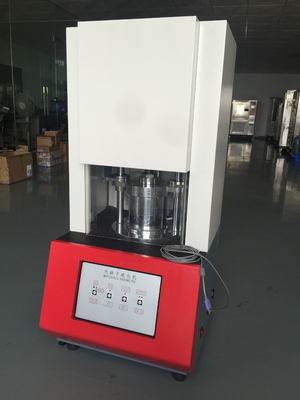

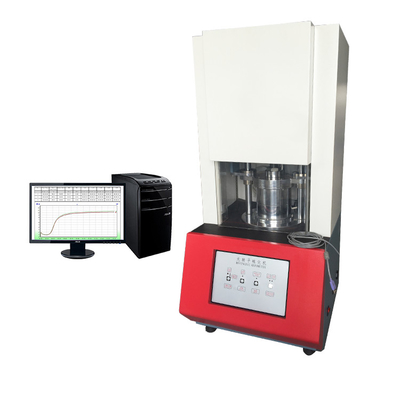

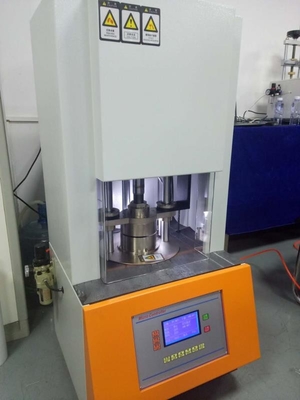

Lab Computer Servo No Rotor Moving Die Rheometer Plastic Vulcanized Rubber Machine

Large Image : Lab Computer Servo No Rotor Moving Die Rheometer Plastic Vulcanized Rubber Machine

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-3001

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	ASTM-D2084 Elastomers and Rubbers Mooney Viscometer 200℃ With Large Rotor is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Product Name:	Lab Computer Servo No Rotor Moving Die Rheometer Plastic Vulcanized Rotorless Rubber Machine	Meet Standard:	GB/T16584, ISO6502:1991 And ASTMD5289-95
Temperature Tester:	Room Temperature To 200°C	Heating Speed:	Room Temperature—200℃,about 10 Min
Temperature Accuracy:	≤ ±0.1°C	Temperature Resolution:	0.1°C
Torque Range:	0-5N.M、0-10N.M、0-20N.M (option)	Torque Resolution::	0.001NM
Motor Rotating Speed:	100 Times / Min	Rotor Type:	Rotor Less
Highlight:	Computer Servo Moving Die Rheometer , No Rotor Moving Die Rheometer , Plastic Vulcanized Rotorless Rheometer

Lab Computer Servo No Rotor Moving Die Rheometer

Advanced plastic vulcanized rotorless rubber testing machine for precise material analysis and quality control.

Technical Documentation

Download Technical Brief: ZL-3001 No Rotor Rheometer.pdf

Operating Principle

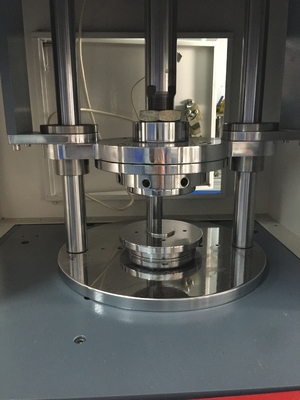

The rubber sample is placed into an almost entirely enclosed mold cavity maintained at test temperature. The mold cavity consists of two parts, with the lower part performing small linear reciprocating movements (swing oscillation). This oscillatory shear produces strain in the specimen, and the reaction torque (force) of the mold cavity is measured. This torque depends on the rubber's shear modulus.

After curing begins, the shear modulus increases. The computer system displays and records the torque in real-time. When the torque rises to a stable value or maximum and returns to its original state, a torque-time curve is generated - the curing curve. The curve shape depends on test temperature and material characteristics.

Industry Applications

Widely used across rubber products manufacturing industries for quality control and research applications.

Technical Specifications

Parameter	Specification
Model	ZL-3001 No Rotor Rheometer
Standards Compliance	GB/T16584, ISO6502:1991, ASTMD5289-95
Temperature Range	Room temperature to 200°C
Heating Speed	Room temperature to 200°C in approximately 10 minutes
Temperature Accuracy	≤ ±0.1°C
Temperature Resolution	0.1°C
Torque Range	0-5N.M, 0-10N.M, 0-20N.M (optional)
Torque Resolution	0.001NM
Motor Speed	100 times/minute
Rotor Type	Rotorless
Die Body Frequency	1.7Hz±0.1Hz (100r/min)
Rotor Swing Angle	±0.5°, ±1°, ±3°
Testing Time	3-120 minutes (user selectable)
Air Pressure	0.5-0.65MPa
Ambient Temperature	0-35°C
Test Output	Date, time, temperature, vulcanization curve, temperature curve, ML, MH, ts1, ts2, t10, t50, Vc1, Vc2
Power Consumption	800W
Dimensions	640mm * 580mm * 1300mm
Power Supply	Single phase, 220V±10%, 50Hz
Display System	Windows 7 + dedicated software
Weight	260kg

Manufacturer Information

Zhongli Instrument Technology Co., Ltd. - Instrument Experts since 2007, headquartered in Dongguan, Guangdong, China.

With over 14 years of manufacturing excellence, our products are exported to more than 95 countries worldwide, with strong presence in European, American, and Southeast Asian markets.

Our equipment portfolio serves multiple industries including rubber and plastics, food processing, packaging, electronics, and scientific research institutions.

Beyond standard models, our R&D team provides custom solutions tailored to specific requirements and applications.
