BJ-X Handheld Portable Field Metallographic Microscope

Large Image : BJ-X Handheld Portable Field Metallographic Microscope

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-2506

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Packaged within wooden case
Delivery Time:	5-7 days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	100 set per month

Contact Now

Detailed Product Description

Optical System:	Finite Aberration Correction Optical System	Observation Tube:	Monocular Viewing Tube
Eyepiece:	Large Field Of View WF10X(Φ18mm)	Long-Range Plan Achromatic Objectives:	PL L 10X/0.25 WD8.8mm
Lighting System:	6V3W LED Lighting, Rechargeable Lithium Battery	Microscope Base:	Quick Non-magnetic Base
Software Package:	Metallographic Analysis Software	Camera:	Metallographic Digital Camera Device
Micrometer:	High-precision Micrometer (grid Value 0.01mm)	Stage Movement Range:	Movement Range 15X15mm φ10 20mm Slides Each - - Piece Vernier Grid Value 0. 1mm
Grinding Package:	Angle Grinder, Sandpaper, Wool Felt, Diamond Polish
Highlight:	Field Metallographic Microscope , Handheld Metallographic Microscope , Field Portable Metallographic Microscope

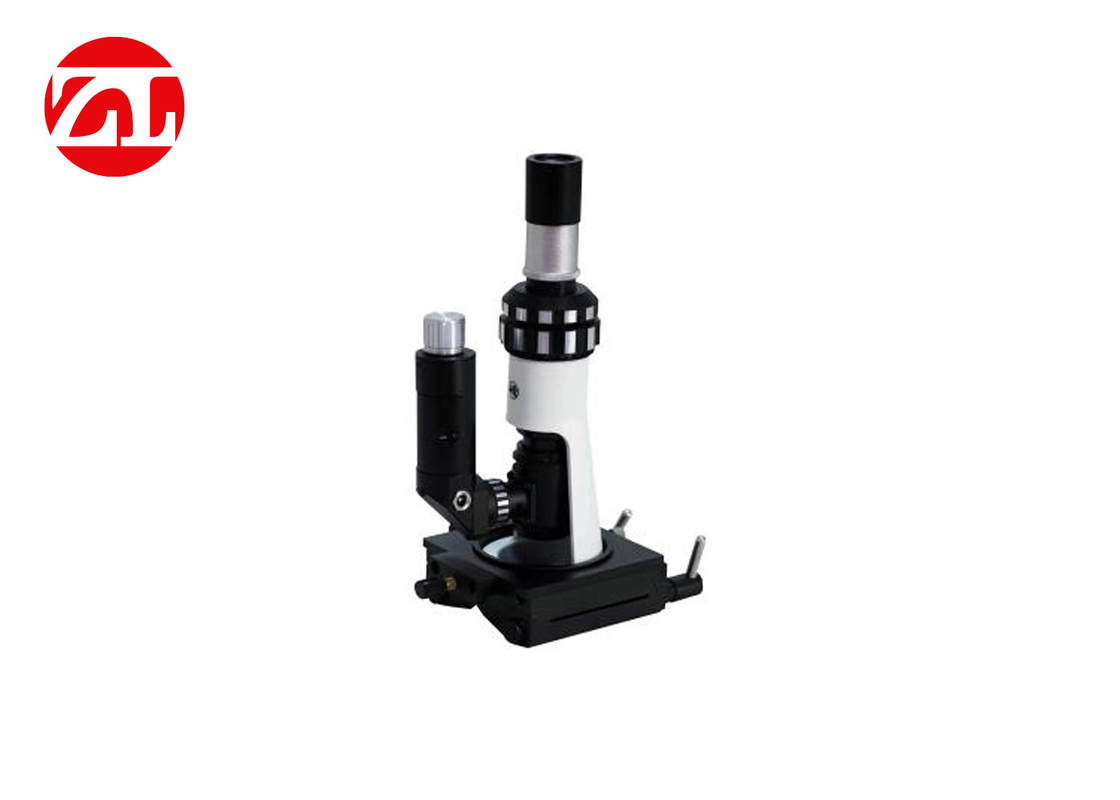

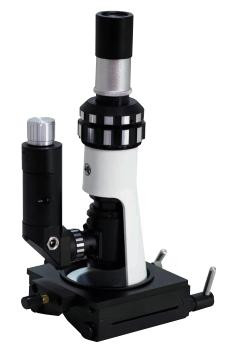

BJ-X Handheld Portable Field Metallographic Microscope

Product Overview

The BJ-X portable metallographic microscope features its own vertical illumination light source, enabling easy identification of various metal and alloy structures without sample preparation. Ideal for on-site metallographic inspection and failure analysis of large workpieces, this instrument eliminates the need for cutting samples by allowing direct grinding and polishing of workpieces to maintain their integrity.

This portable microscope is suitable for numerous industries including aerospace manufacturing, machinery manufacturing, vehicle manufacturing, boiler and pressure vessel manufacturing and inspection, petrochemical, railway, shipbuilding, power plants, power stations, equipment installation, large molds, safety testing, quality supervision, and physical/chemical laboratories. It is also widely used in factories and laboratories for casting quality identification, raw material inspection, and research analysis of metallographic structure after material processing.

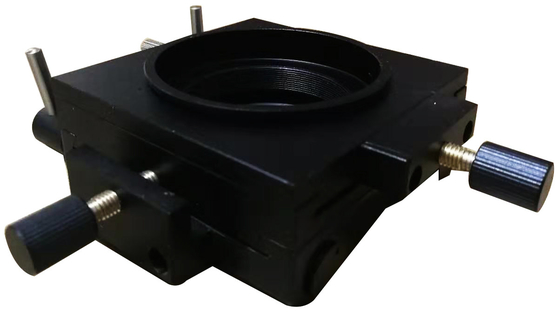

Magnetic Base Feature

The microscope base is equipped with a magnetic suction seat that can be directly attached to workpieces for on-site metallographic tissue inspection. The gear-type XY axis moving platform ensures stable horizontal positioning without automatic underscoring.

Technical Parameters

Configure	Parts	Specification	BJ-X
Optical System	Finite aberration correction optical system		*****
Optical System	Observation Tube	Monocular viewing tube	*****
Eyepiece	Large field of view WF10X(Φ18mm)		*****
	Large field of view WF10X(Φ18mm) with cross differentiation ruler		O
Long-Range Plan Achromatic Objectives	PL L 10X/0.25 WD8.8mm		*****
	PL L 40X/0.6 WD3.73mm		*****
	PL L 20X/0.4 WD8.6mm		O
	PL L 50X/0.7 WD2.02mm		O

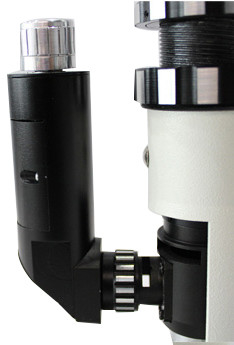

Lighting System	6V3W LED lighting, rechargeable lithium battery		*****
Microscope Base	Quick non-magnetic base		*****
	X-Y Magnetic Base		*****
Software Package	Metallographic analysis software (version 2016, version 2018)		O
Camera	Metallographic digital camera device (5 million, 6.3 million, 12 million, 16 million, etc.)
	0.5X, 1X camera adapter
	Micrometer	High-precision micrometer (grid value 0.01mm)
Grinding Package	Angle grinder, sandpaper, wool felt, diamond polish, etc.		O

Note: "*" is standard configuration; "O" is optional

Configuration Options

Option 1

Metallographic Microscope + Industrial Camera + Adapter Lens Interface

Option 2

Metallographic Microscope + SLR + SLR Interface

Option 3

Metallographic Microscope + WIFI Camera + Adapter Lens Interface

Option 4

Metallographic Microscope + LCD Display
