4XC Trinocular Inverted Metallographic Microscope ，Metallographic Analyzer

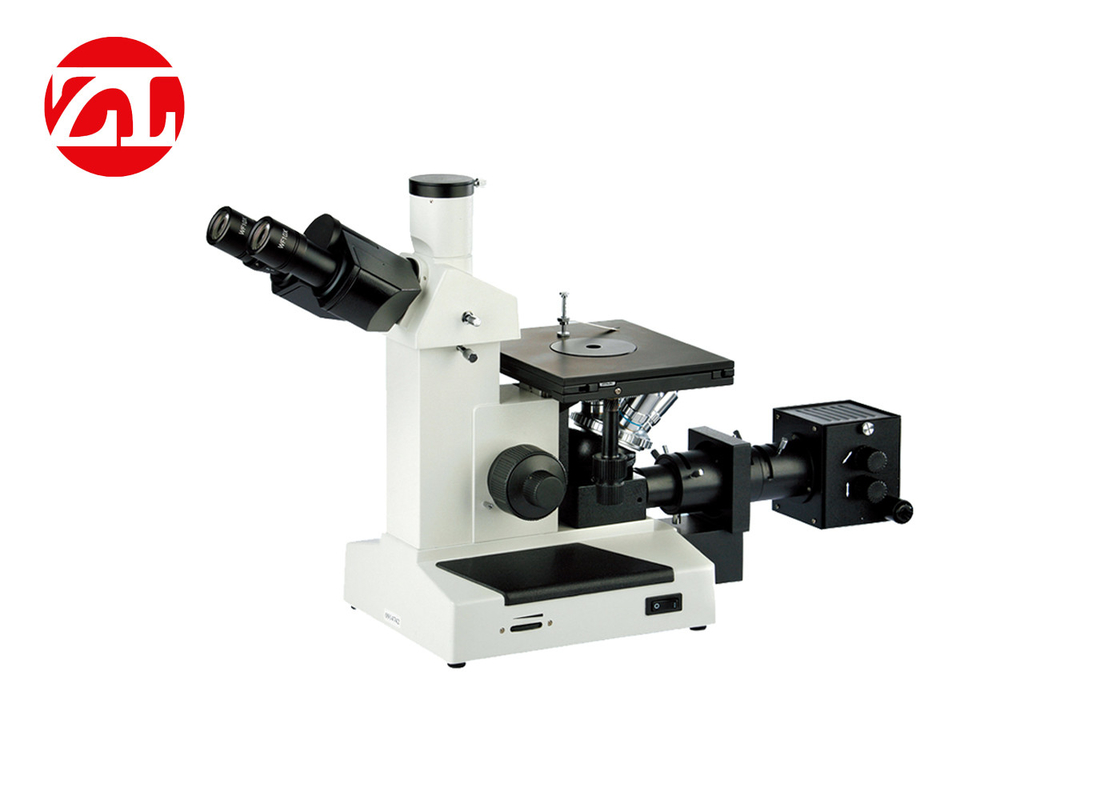

Large Image : 4XC Trinocular Inverted Metallographic Microscope ，Metallographic Analyzer

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-2505

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Packaged within wooden case
Delivery Time:	5-7 days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	100 set per month

Contact Now

Detailed Product Description

Flat Field Eyepiece:	WF10X/φ18, WF12. 5X/φ15	Reticle Eyepiece:	WF10X/φ18, 0.1mm Scale Cross Reticle, Adjustable Focus
Plan Achromatic Objectives:	10X/0.25, 20X/0.45, 40X/0.65 (spring) ,100X/1.25 (oil, Spring)	Total Magnification:	100X- -1250X
Speed:	600r/min	Trinocular Observation Head:	Hinged30° Tilt
Converter:	Four Holes	Coarse And Fine Focus Range:	25mm Micro-movement Grid Value: 2um Coarse And Micro-movement Coaxial Focusing
Stage:	Double Layer Mechanical Size 180x150mm	Stage Movement Range:	Movement Range 15X15mm φ10 20mm Slides Each - - Piece Vernier Grid Value 0. 1mm
Pupil Distance:	55-75mm	Mechanical Barrel Length:	160mm
Illumination:	Brightness Adjustable Halogen Tungsten Bulb With Variable Aperture 6V20W	Instrument Weight:	Net Weight 8.5Kg Gross Weight 10.0Kg
Instrument Size:	20X56X35cm Packaging Size 29X43X59cm
Highlight:	Trinocular Inverted Metallographic Microscope , Inverted Metallographic Microscope For Factory , Metallographic Analyzer For Laboratory

4XC Trinocular Inverted Metallographic Microscope, Metallographic Analyzer

The 4XC metallographic microscope is primarily used to identify and analyze the internal structure of metals. It serves as an essential instrument for metallographic research and plays a crucial role in quality identification within industrial sectors. This microscope is designed for examining the structure of various metals and alloys, making it invaluable for foundries, raw material inspection, and research analysis of metallographic structures after material processing.

Key Features

Trinocular observation head with 30° tilt
Four-hole converter for multiple objectives
Coaxial coarse and fine focusing system
Double-layer mechanical stage with precise movement
Adjustable halogen tungsten bulb illumination
Comprehensive magnification range from 100X to 1250X

Technical Specifications

Component	Specifications
Flat Field Eyepiece	WF10X/φ18, WF12.5X/φ15
Reticle Eyepiece	WF10X/φ18, 0.1mm scale cross reticle, adjustable focus
Plan Achromatic Objectives	10X/0.25, 20X/0.45, 40X/0.65 (spring), 100X/1.25 (oil, spring)
Total Magnification	100X - 1250X
Trinocular Observation Head	Hinged 30° tilt
Converter	Four holes
Focus Range	25mm micro-movement grid value: 2μm coarse and micro-movement coaxial focusing
Stage	Double layer mechanical size 180×150mm
Stage Movement Range	15×15mm with vernier grid value 0.1mm
Pupil Distance	55-75mm
Mechanical Barrel Length	160mm
Illumination	Brightness adjustable halogen tungsten bulb 6V20W with variable aperture
Instrument Weight	Net weight 8.5Kg, Gross weight 10.0Kg
Instrument Size	20×56×35cm (packaging size 29×43×59cm)
