Product Details:
Payment & Shipping Terms:
|
| Carriage Control: | Automatic（loading/holding-up Of The Load/unloading） | Amplification Of The Microscope: | 100x，400x |
|---|---|---|---|
| Duration Time: | 5~60s | Min.graduation Value Of The Testing Drum Wheel: | 0.0315um |
| Testing Field: | 1HV~2967HV | Dimension Of The XY Table: | 100 X 100mm |
| Movement Field Of The XY Table: | 25 X 25mm | Max Height Of Specimen: | 75mm（Customize Heightened Type） |
| Max Width Of Specimen: | 95mm（The Distance From The Fuselage To The Center Of The Indenter） | Power: | 220V,60/50Hz/Halogen Lamp Can Be Cusfromzed To/AC110V |
| Dimension: | 410 X 290 X 510（mm） | New Weight: | 25kg |
| Output: | With Built-in Printer And A RS 232 Serial Interface | Main Accessories: | Vickers Indenter 、Obgective10x、40x、10xDigital Micro Lens 、 XY-stage Test Table、Thin Specimen Test Table、Fork-shaped Test Table、Fine Wire Test Table、level Adjustment Screw、 Micro Vickers Hardness Blocks |
| Lens/Indenter Switch: | With Motorized Turret | ||
| Highlight: | Heat Treatment Vickers Hardness Tester,Micro Vickers Hardness Tester |
||
Product Introduction:

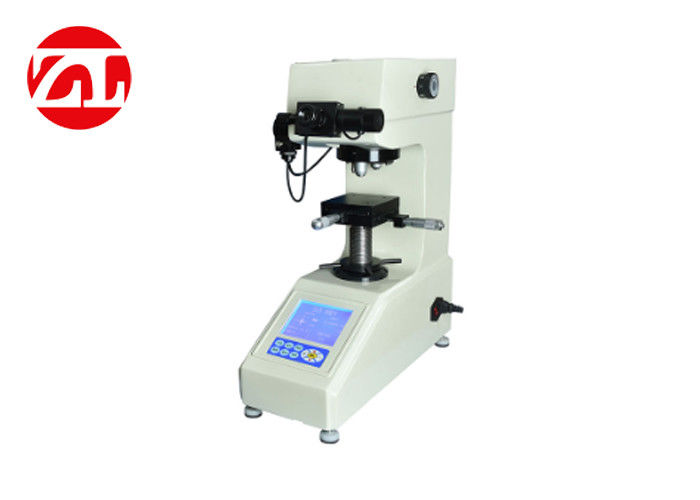

HVS-1000 Heat Treatment Digital Micro Hardness Tester Vickers Hardness Tester adopts a large LCD display screen, and the interface operation adopts a menu structure. You can select the hardness scale HV or HK on the operation panel, measure the indentation digitally, automatically input and display the hardness value automatically. Various hardness values can be converted to each other, and the test results can be automatically stored, processed and printed. Equipped with RS-232 interface, it can be connected with computer. The machine has a high degree of digitization and automation.
HVS-1000Z - Upgraded version
Objective and indenter switching function changed from manual to automatic.
Application
Heat treatment, carbonization, quench hardening layer, surface coating, steel, non-ferrous metals, tiny and thin parts, etc.
Technical Parameter
|
All Testing Force |
N | 0.098,0.246,0.49,0.98,1.96,2.94,4.90,9.80 |
| gf | 10,25,50,100,200,300,500,1000 | |
| Lens/Indenter switch | With Motorized Turret | |
| Carriage Control | Automatic(loading/holding-up of the load/unloading) | |
| Amplification of the Microscope | 100x,400x | |
| Duration Time | 5~60s | |
| Min.graduation value of the testing drum wheel | 0.0315um | |
| Testing Field | 1HV~2967HV | |
| Dimension of the XY Table | 100 x 100mm | |
| Movement Field of the XY Table | 25 x 25mm | |
| Max Height of Specimen | 75mm(Customize heightened type) | |
| Max Width of Specimen) | 95mm(The distance from the fuselage to the center of the indenter) | |
| Output | With built-in printer and a RS 232 serial interface | |
| Light source/Power Supply | 220V,60/50Hz/Halogen lamp can be customize to/AC110V | |
| Main accessories |
Vickers Indenter ,Obgective10x,40x,10xDigital Micro Lens , XY-stage test table,Thin specimen test table,Fork-shaped test table,Fine wire test table,level adjustment screw, Micro Vickers hardness blocks |
|
| Dimension | 410 X 290 X 510(mm) | |
| Net weight | 25kg | |
