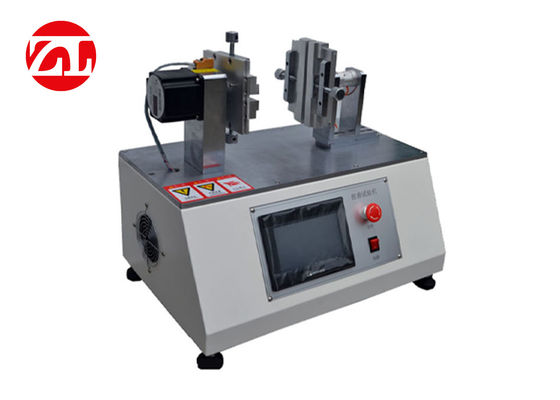

Mobile Phone Torsion Resistance Life Testing Machine

Mobile Phone Torsion Resistance Life Testing Machine
Mobile Phone Torsion Resistance Life Testing Machine

Large Image :  Mobile Phone Torsion Resistance Life Testing Machine

Product Details:
Place of Origin: China
Brand Name: ZL
Certification: CE,ISO
Model Number: ZL-2831
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Mobile Phone Torsion Resistance Life Testing Machine is packaged within wooden case.
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 Sets
Detailed Product Description
Model: ZL-2832 Number Of Workstations: 1/set
Operation Mode: Touch Screen Torque: 1~4 N.m
Distortion Frequency (beat): 1 To 20 Times/min (holding Time Is Adjustable) Counter: 6 Bits (built-in)
Power Supply: 220V 750W Dimensions: 600mm*550mm*400mm
Weight: 60kg
High Light:

750W Mobile Phone Life Tester


220V Mobile Phone Life Tester

Mobile Phone Torsion Resistance Life Testing Machine




The mobile phone torsion testing machine is an instrument for testing the torsion durability test of various types of mobile phones. After the mobile phone is fixed on the fixture, the torque and angle of rotation can be set, and then repeated back and forth to test the torsion resistance of the mobile phone.

The torsion life testing machine is suitable for the torsion test of electronic products. It can be twisted clockwise and counterclockwise to test the anti-torsion performance of the mobile phone shell and internal structure.




Experiment by simulating the distorted action of the mobile phone during the user's use.

One end of the mobile phone in the length direction is fixed in the twisting fixture, and the other end is floating in the fixed fixture → turn on the testing machine, set the torque value → the motor drives the twisting fixture to rotate forward and reverse, and the touch screen displays the torque value of forward and reverse rotation in real time.


Technical Parameters:


Number of workstations 1/set
Operation mode Touch screen
Torque 1~4 N.m
Distortion frequency (beat) 1 to 20 times/min (holding time is adjustable)
Counter 6 bits (built-in)
Power supply 220V 750W
Dimensions 600mm*550mm*400mm
Weight 60kg




1. The torque value can be displayed in real time, and the test torque can be set.

2. The structure design is reasonable and unique, and has full applicability to different types of mobile phones.

3. Large touch screen interface control, PLC control equipment runs stably, low noise, maintenance-free.


Operating steps:


1. Clip it with the test sample

1.1 Secure the sample to the left fixture

1.2 Adjust the required position of the right fixture according to the sample specifications

1.3 Adjust the fixture to the appropriate test position through the left side knob (e. g. adjust the bending position to the turntable center, etc.)

2. Turn on the power switch, enter the operation interface, and set relevant parameters (angle, speed, etc., etc.)

3. After the arrival, the machine stops automatically

4. Conduct the next test and repeat the above steps



Advantage Service:


1. We have R&D, designing department which can not only provide technological machines but also can satisfy special customized needs of our clients.

2. Over 50 years’ manufacturing experience, advanced machine and sophisticated handcraft.

3. There are TWO laboratories in our factory: Environmental laboratory and Physical laboratory.

4. Our factory have adequate stock monthly, which can meet customers’ urgent needs.

5. Annual sales over 1,000,000USD; 30,000㎡manufacturing base, equipped with 120 technicians, we are capable to take large budget project.



Technical Support:


1. SUS Stainless plate is cut by advanced leaser machine which can ensure accuracy; All machine appearance is anti-rust electrostatic painting;

2. Imported electronic components: ABB/Siemens/Panasonic/Saginomiya/Danfoss/Emkarate/Omron/Philips and imported compressor:BOEK/TECUMSEH, which can keep the machine’s service life over 10 years.



After-sale Service:


1. We promise 14 month’s warranty and lifetime maintenance.

2. During the warranty time, any components broken is FREE to change, and we offer FREE picture, video instruction after your purchasing of our machine.

3. All machine is sent with a packing list, operation instruction(paper file), warranty certificate(with valid date) and other accessories.





We pack machine with plastic wrap (water proof), then pack with poly wood board,

cystosepiment inside the board and machine for fixture.
